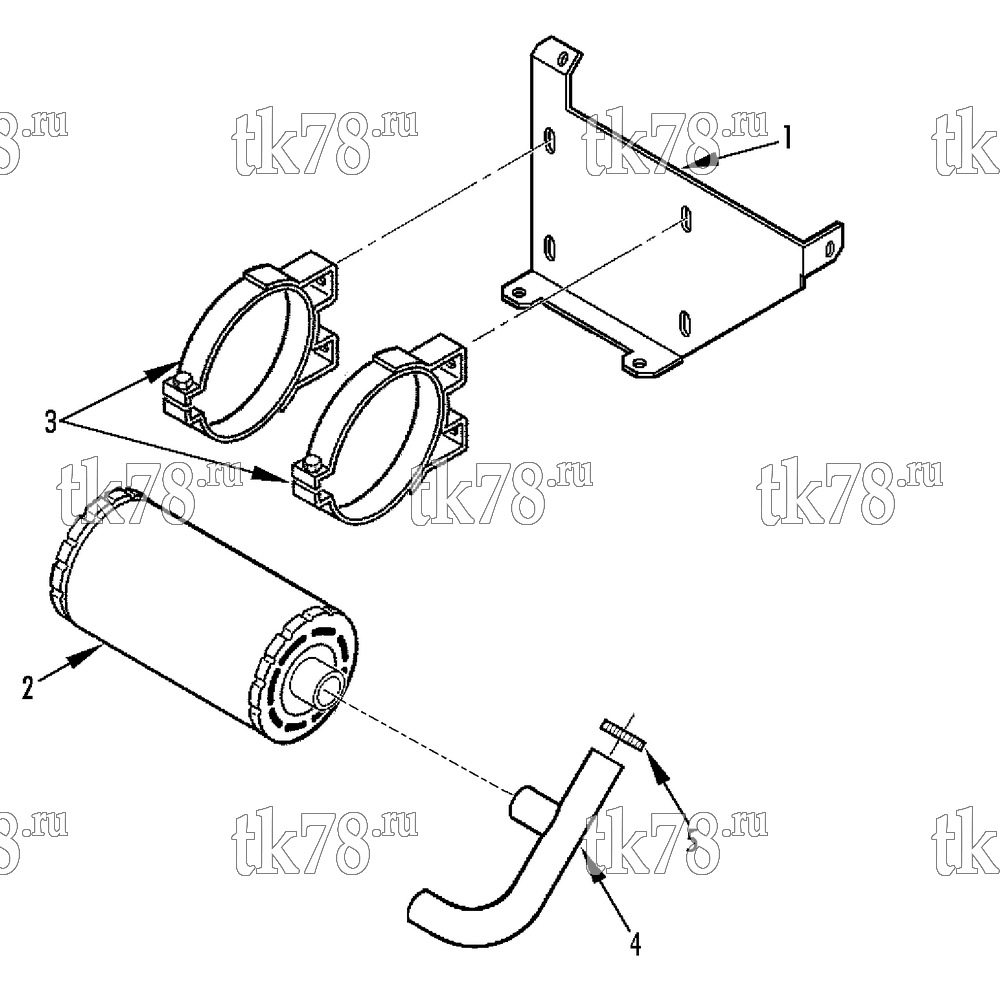

Установкa Thermo King схема AIR CLEANER GROUP – 186B3
Обновление от: 4/8/03
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 91-8615 | BRACKET - air cleaner | 1 | |
| 55-5195 | SCREW - bracket | 2 | ||
| 55-375 | LOCKWASHER | 2 | ||
| 55-402 | FLATWASHER | 2 | ||
| 55-289 | NUT | 2 | ||
| 2 | 11-7400 | FILTER - air cleaner | 1 | |
|
11-7400 OEM | Фильтр воздушный, SB/SMX | 3 460 ₽ |
|
|
US-11-7400 | Фильтр воздушный, SB/SMX | 2 460 ₽ |
|
|
10-11-7400 | Фильтр воздушный, SB/SMX | 1 590 ₽ |
|
| 3 | 11-5562 | CLAMP - air cleaner | 2 | |
| 55-2969 | SCREW - clamp | 4 | ||
| 55-371 | FLATWASHER | 8 | ||
| 55-312 | NUT | 4 | ||
| 4 | 11-7997 | RESONATOR - side branch | 1 | |
| 5 | 55-1636 | CLAMP - hose | 1 |
