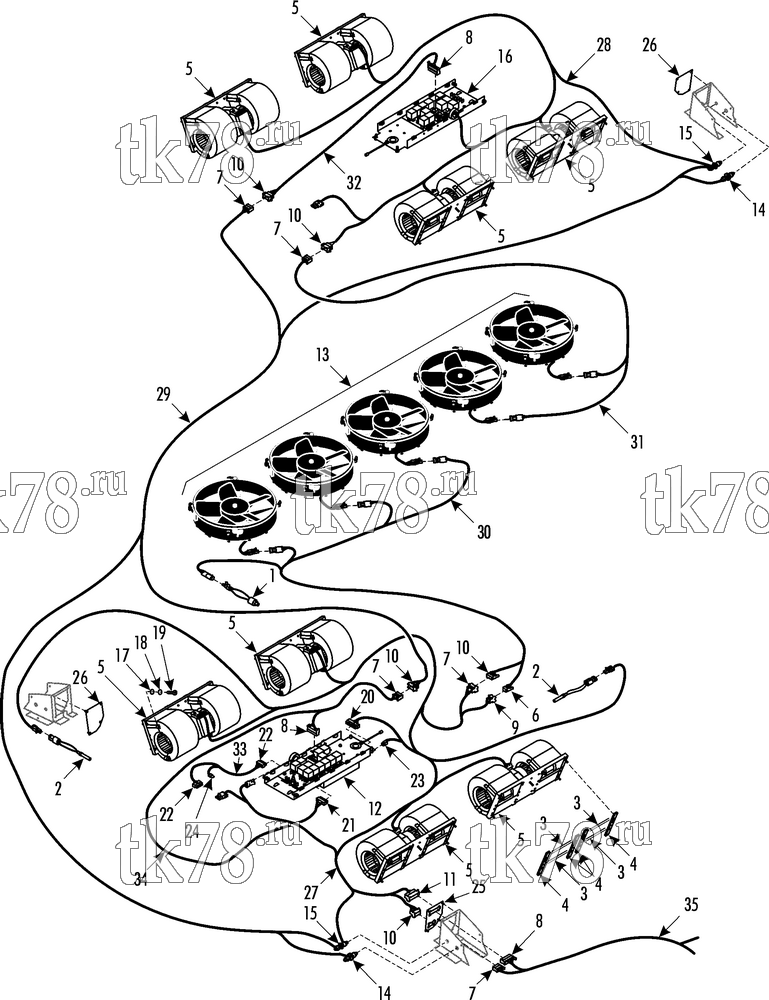

Установкa Thermo King схема ELECTRICAL COMPONENTS – 184H6
Обновление от: 8/22/10
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 55-8121 | SWITCH - hpco | 1 | |
| 2 | 40-975 | KIT - temperature sensor | 2 | |
|
40-975 OEM | Датчик температуры к-т, некалиброванный | 10 310 ₽ |
|
|
10-40-975 | Датчик температуры к-т, некалиброванный | 4 660 ₽ |
|
| NSS | SENSOR - ungraded (18 in) | 1 | ||
| 41-5210 | COLLAR - crimp | 2 | ||
| 92-846 | HEATSHRINK (1/2 in) | 2 | ||
| 3 | 33-3530 | STRIP - neoprene (0.341 ft) | A/R | |
| 4 | 91-9925 | INSULATION - blower | 32 | |
| 5 | 78-1198 | BLOWER (24V) | 8 | |
| 6 | 41-2767 | CONNECTOR (6-pin, female) | 1 | |
| 7 | 41-3855 | TERMINAL - connector (10-pin, female) | 5 | |
| 8 | 41-3856 | TERMINAL - connector (18-pin, female) | 3 | |
| 9 | 41-4055 | CONNECTOR (6-pin, male) | 1 | |
| 10 | 41-4054 | CONNECTOR (10-pin, male) | 5 | |
| 11 | 41-2772 | CONNECTOR (18-pin, male) | 1 | |
| 12 | NSS | PANEL - control (slave, see 168H5) | 1 | |
| 13 | 78-1294 | FAN - condenser (see 168G7) | 5 | |
| 78-1294 OEM | Вентилятор конденсатора | 19 470 ₽ |
|
|
|
10-33-2999 | Прокладка ГБЦ, Yanmar 482, SB-XXX/SB-III/SL/SLe | 13 280 ₽ |
|
| PP-33-2999 | Прокладка ГБЦ, Yanmar 482, SB-XXX/SB-III/SL/SLe | 4 600 ₽ |
|
|
| 14 | 55-9367 | STUD - positive | 2 | |
| 55-8631 | WASHER (nylon w/ shoulder) | 2 | ||
| 55-8693 | WASHER (nylon) | 2 | ||
| 55-8955 | FLATWASHER | 8 | ||
| 55-3238 | LOCKWASHER | 6 | ||
| 305-1653 | NUT | 8 | ||
| 15 | 55-9367 | STUD - negative | 2 | |
| 55-8568 | LOCKWASHER (internal/external tooth) | 2 | ||
| 55-3238 | LOCKWASHER | 4 | ||
| 55-8955 | FLATWASHER | 8 | ||
| 305-1653 | NUT | 8 | ||
| 16 | NSS | PANEL - control (master, see 168H4) | 1 | |
| 17 | 55-7697 | FLATWASHER | 40 | |
| 18 | 55-7031 | LOCKWASHER | 40 | |
| 19 | 55-7696 | SCREW - blower | 40 | |
| 20 | 41-656 | CONNECTOR (24 terminal) | 1 | |
| 21 | 41-650 | CONNECTOR (18 terminal) | 1 | |
| 22 | 41-661 | CONNECTOR (14 terminal) | 2 | |
| 23 | 41-654 | CONNECTOR - inline | 1 | |
| 24 | 41-1507 | CONNECTOR - inline (2 terminal) | 1 | |
| 25 | 92-2957 | PLATE - cover | 1 | |
| 55-3010 | RIVET | 5 | ||
| 26 | 92-2958 | PLATE - cover | 2 | |
| 55-3010 | RIVET | 10 | ||
| 27 | 41-5402 | HARNESS - evaporator (master, for connectors see 115D14) | 1 | |
| 28 | 41-4712 | HARNESS - evaporator (slave, for connectors see 115D14) | 1 | |
| 29 | 41-4713 | HARNESS - interconnecting | 1 | |
| 30 | 41-4714 | HARNESS - condenser (master, for connectors see 115D14) | 1 | |
| 31 | 41-4715 | HARNESS - condenser (slave, for connectors see 115D14) | 1 | |
| 32 | 41-4716 | HARNESS - relay (slave) | 1 | |
| 33 | 41-4717 | HARNESS - drivers panel | 1 | |
| 34 | 41-5403 | HARNESS - control panel to relay (master) | 1 | |
| 35 | 41-5404 | HARNESS - unit to compressor | 1 |
