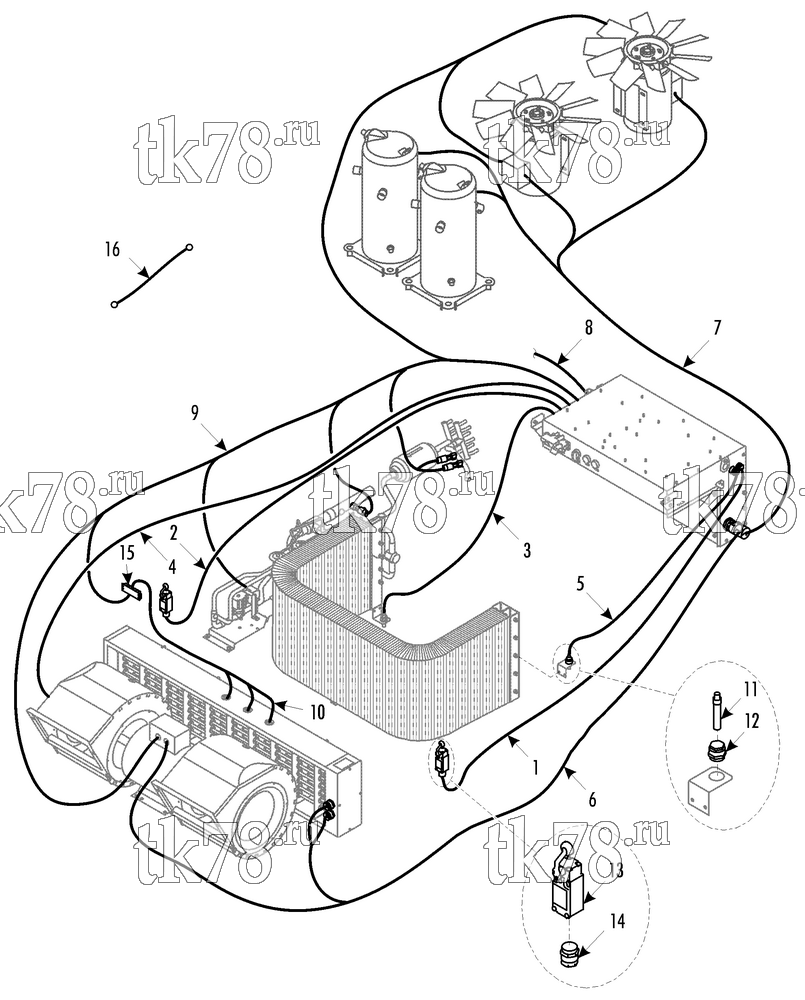

Установкa Thermo King схема ELECTRICAL COMPONENTS – 184D6
Обновление от: 10/3/10
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 41-5340 | CABLE - limit switch (right) | 1 | |
| 2 | 41-5341 | CABLE - limit switch (left) | 1 | |
| 3 | 41-5342 | CABLE - temperature sensor (return air) | 1 | |
| 4 | 41-5343 | CABLE - temperature sensor (duct air) | 1 | |
| 5 | 41-5344 | CABLE - temperature sensor (fresh air) | 1 | |
| 6 | 41-5337 | HARNESS - power heater & evaporator fans | 1 | |
| 7 | 41-5345 | HARNESS - power compressor & condenser fans | 1 | |
| 8 | 41-5346 | WIRE - grounding (outlet) | 1 | |
| 9 | 41-5338 | HARNESS - low voltage control (outlet, for connectors see 112D9) | 1 | |
| 10 | 41-5339 | HARNESS - heater connection | 1 | |
| 11 | 40-974 | KIT - sensor (graded) | 2 | |
|
40-974 OEM | Датчик температуры калиброванный | 8 770 ₽ |
|
|
10-40-974 | Датчик температуры калиброванный | 3 500 ₽ |
|
| 12 | 55-9992 | BUSHING - sensor | 2 | |
| 55-9998 | LOCKNUT | 2 | ||
| 13 | 41-3917 | SWITCH - limit | 2 | |
| 55-9566 | SCREW - switch | 4 | ||
| 55-7369 | LOCKWASHER | 4 | ||
| 55-7697 | FLATWASHER | 4 | ||
| 55-9564 | NUT - captive | 4 | ||
| 14 | 55-9555 | BUSHING - cable | 2 | |
| 15 | 44-5350 | BOARD - terminal (6 terminal, 20 amp) | 1 | |
| 55-7696 | SCREW - board | 1 | ||
| 55-7369 | LOCKWASHER | 1 | ||
| 55-7697 | FLATWASHER | 1 | ||
| 55-9564 | NUT - captive | 1 | ||
| 16 | 41-7757 | WIRE - grounding (cover) | 2 |
