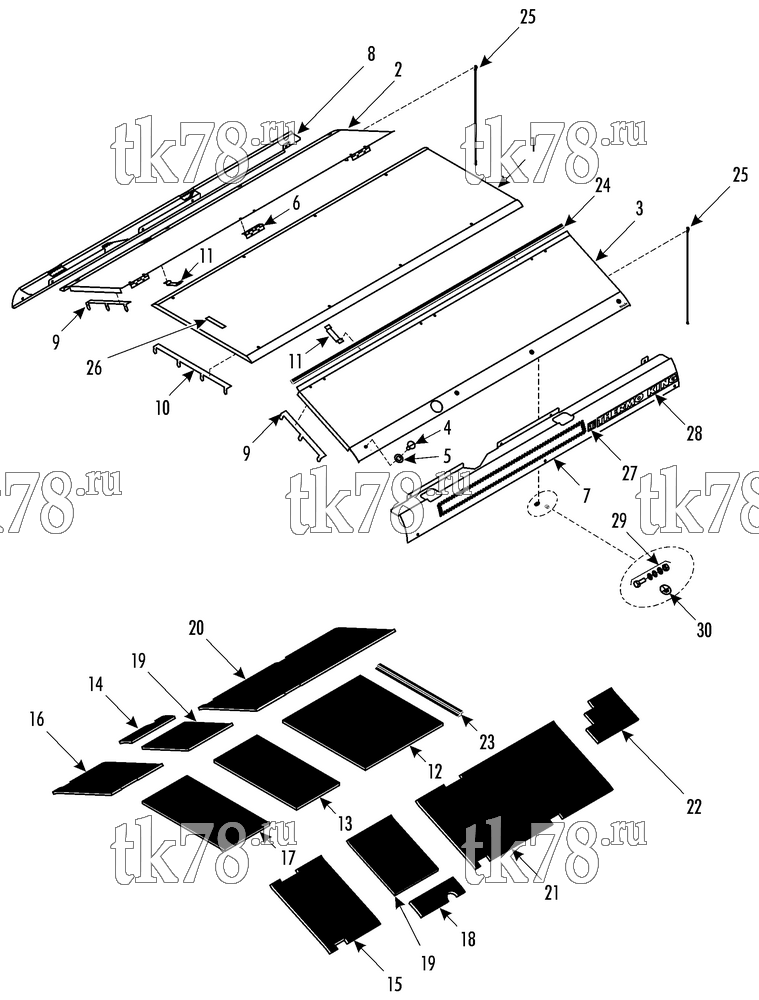

Установкa Thermo King схема EVAPORATOR COVERS – 184C8
Обновление от: 8/2/10
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 98-6602 | COVER - center | 1 | |
| 55-9368 | SCREW - cover | 8 | ||
| 55-5970 | WASHER - sealing | 8 | ||
| 55-9553 | NUT - captive | 8 | ||
| 2 | 98-6603 | COVER - evaporator (left) | 1 | |
| 3 | 98-6604 | COVER - evaporator (right) | 1 | |
| 51-689 | SCREW - cover to hinge | 12 | ||
| 51-871 | WASHER - sealing | 12 | ||
| 4 | 55-2782 | SCREW - captive (quick turn) | 8 | |
| 5 | 55-7112 | WASHER - special | 8 | |
| 6 | 92-1403 | HINGE - cover | 6 | |
| 55-6994 | SCREW - hinge to frame | 12 | ||
| 55-8893 | FLATWASHER | 24 | ||
| 55-6996 | LOCKWASHER | 12 | ||
| 55-7354 | NUT | 12 | ||
| 7 | 98-6605 | COVER - side (left) | 1 | |
| 8 | 98-6606 | COVER - side (right) | 1 | |
| 55-6994 | SCREW - cover to frame | 8 | ||
| 55-7075 | FLATWASHER | 8 | ||
| 55-9368 | SCREW - cover to frame | 6 | ||
| 55-5970 | WASHER - sealing | 6 | ||
| 9 | 33-3576 | BRACKET - insulation (sides) | 16 | |
| 10 | 33-3290 | BRACKET - insulation (center) | 7 | |
| 11 | 92-2598 | BRACKET - limit switch | 2 | |
| 12 | 33-3171 | INSULATION - center cover (front) | 1 | |
| 13 | 33-3291 | INSULATION - center cover (middle) | 1 | |
| 14 | 33-3753 | INSULATION - left cover (middle, outside) | 1 | |
| 15 | 33-3754 | INSULATION - right cover (back) | 1 | |
| 16 | 33-3755 | INSULATION - left cover (back) | 1 | |
| 17 | 33-3756 | INSULATION - center cover (back) | 1 | |
| 18 | 33-3757 | INSULATION - right cover (middle, outside) | 1 | |
| 19 | 33-3758 | INSULATION - cover (middle, inside) | 2 | |
| 20 | 33-3759 | INSULATION - left cover (front) | 1 | |
| 21 | 33-3760 | INSULATION - right cover (front) | 1 | |
| 22 | 92-2223 | INSULATION - right cover (front) | 1 | |
| 23 | 33-2420 | STRIP - neoprene (0.12 thick x 1.5 wide) | A/R | |
| 24 | 99-7336 | STRIP - neoprene (0.12 thick x 1.5 wide) | A/R | |
| 25 | 92-2466 | CORD - cover | 2 | |
| 55-7169 | SCREW - cord | 4 | ||
| 55-7089 | FLATWASHER | 2 | ||
| 55-7404 | LOCKWASHER | 2 | ||
| 55-7367 | NUT | 2 | ||
| 26 | 309-3064 | NAMEPLATE - No Step | 1 | |
| 27 | 91-3247 | NAMEPLATE - TK Logo | 2 | |
| 28 | 99-7029 | NAMEPLATE - Thermo King | 2 | |
| 29 | 55-7172 | SCREW - ground | 2 | |
| 55-7378 | LOCKWASHER | 4 | ||
| 55-7170 | LOCKWASHER | 2 | ||
| 55-7354 | NUT | 2 | ||
| 30 | 92-783 | NAMEPLATE - ground | 2 |
