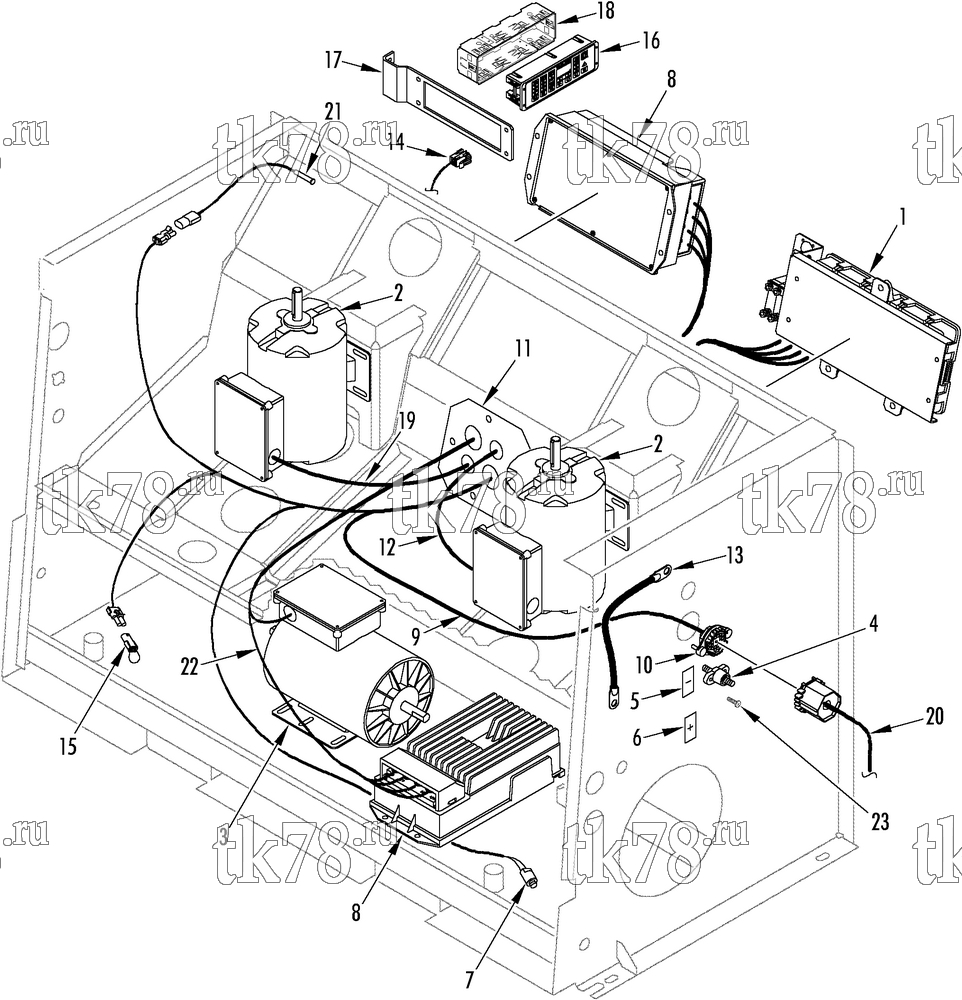

Установкa Thermo King схема ELECTRICAL COMPONENTS – 183F0
Обновление от: 6/23/13
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | ASQ | BREAKER - circuit assembly (see 172A2) | 1 | |
| 2 | 104-740 | MOTOR - condenser fan | 2 | |
| 3 | 104-741 | MOTOR - evaporator blower (see 153G9) | 1 | |
| 4 | 55-9550 | STUD - terminal (red) | 1 | |
| 55-9551 | STUD - terminal (black) | 1 | ||
| 55-671 | NUT | 4 | ||
| 55-448 | FLATWASHER | 4 | ||
| 55-3066 | LOCKWASHER | 4 | ||
| 55-3672 | LOCKWASHER | 1 | ||
| 5 | 99-4661 | NAMEPLATE - Negative | 1 | |
| 6 | 99-4660 | NAMEPLATE - Positive | 1 | |
| 7 | 44-6965 | SWITCH - condenser fan (for connectors see 115D14) | 1 | |
| 8 | 41-3590 | CONTROLLER - motor | 2 | |
| 55-2997 | SCREW - controller | 8 | ||
| 55-2086 | FLATWASHER | 8 | ||
| 55-1800 | LOCKWASHER | 8 | ||
| 9 | 41-4774 | HARNESS - main (see 173F8) | 1 | |
| 10 | 44-7829 | CONNECTOR - tower (22-pin) | 1 | |
| 44-7811 | LOCK - secondary | 1 | ||
| 11 | 92-1290 | COVER - harness blockoff | 1 | |
| 203-412 | SEALER - polyurethane | 1 | ||
| 12 | 41-4191 | HARNESS - condenser motor | 1 | |
| 41-4921 | CONNECTOR | 1 | ||
| 55-2636 | LOCKNUT | 1 | ||
| 13 | 41-4913 | HARNESS - battery cable (red, 15.0 ft lg) | 1 | |
| 41-4761 | HARNESS - battery cable (black, 10.5 ft lg) | 1 | ||
| 41-5437 | HARNESS - single wire (5 in long) | 1 | ||
| 14 | 41-4195 | HARNESS - unit display | 1 | |
| 41-4284 | CONNECTOR (6 terminal) | 1 | ||
| 41-4285 | LOCK - terminal | 1 | ||
| 41-4283 | CONNECTOR (6 terminal) | 1 | ||
| 41-4899 | CONNECTOR (wedge) | 1 | ||
| 15 | 44-8197 | CONNECTOR - jumper (water pressure switch, for connector see 115D14) | 1 | |
| 16 | 41-7200 | MODULE - display | 1 | |
| 17 | 92-2312 | BRACKET - display panel | 1 | |
| 55-2977 | SCREW - bracket | 4 | ||
| 18 | 92-1216 | KEY - din panel mounting | 1 | |
| 19 | 41-4190 | HARNESS - condenser motor | 1 | |
| 20 | 41-4909 | HARNESS - interface | 1 | |
| 21 | 40-975 | KIT - temperature sensor | 3 | |
|
40-975 OEM | Датчик температуры к-т, некалиброванный | 10 310 ₽ |
|
|
10-40-975 | Датчик температуры к-т, некалиброванный | 4 660 ₽ |
|
| NSS | SENSOR - ungraded (18 in) | 1 | ||
| 41-5210 | COLLAR - crimp | 2 | ||
| 92-846 | HEATSHRINK (1/2 in) | 2 | ||
| 22 | 41-4908 | HARNESS - evaporator motor | 1 | |
| 23 | 55-9700 | SCREW - terminal stud | 2 | |
| 55-2001 | FLATWASHER | 4 | ||
| 55-4560 | LOCKNUT | 4 |
