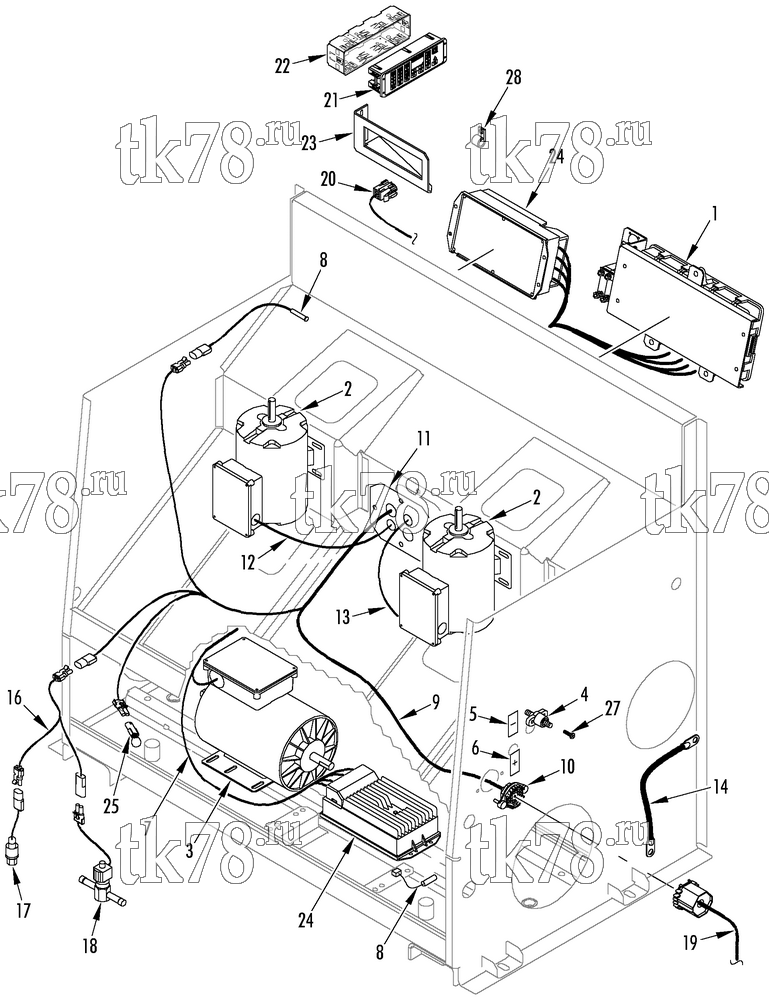

Установкa Thermo King схема ELECTRICAL COMPONENTS – 183D7
Обновление от: 12/24/09
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | ASQ | BREAKER - circuit assembly (see 172A2) | 1 | |
| 2 | 104-740 | MOTOR - condenser | 2 | |
| 3 | 104-741 | MOTOR - evaporator (see 153G9) | 1 | |
| 4 | 55-9551 | STUD - terminal (black) | 1 | |
| 55-671 | NUT | 4 | ||
| 55-448 | FLATWASHER | 4 | ||
| 55-3066 | LOCKWASHER | 4 | ||
| 5 | 99-4661 | NAMEPLATE - Negative | 1 | |
| 6 | 99-4660 | NAMEPLATE - Positive | 1 | |
| 7 | 41-1216 | SWITCH - condenser fan (for connectors see 115D14) | 1 | |
| 44-6427 | SWITCH | 1 | ||
| 8 | 41-7706 | SENSOR - temperature | 2 | |
| 9 | 41-4920 | HARNESS - main (IntelligAIRE, see 173G9) | 1 | |
| 10 | 44-7829 | CONNECTOR - tower (22-pin, see 115D14) | 1 | |
| 11 | 92-2330 | PLATE - harness connectors (see 173G9) | 1 | |
| 55-1587 | SCREW - cover | 4 | ||
| 55-1800 | LOCKWASHER | 4 | ||
| 55-2086 | FLATWASHER | 4 | ||
| 55-4953 | NUT | 2 | ||
| 33-2511 | GROMMET (5/16 id) | 1 | ||
| 12 | 41-4191 | HARNESS - condenser motor (1) | 1 | |
| 41-4921 | CONNECTOR | 1 | ||
| 41-4189 | GASKET - seal | 1 | ||
| 55-2636 | LOCKNUT | 1 | ||
| 13 | 41-4190 | HARNESS - condenser motor (2) | 1 | |
| 41-4921 | CONNECTOR | 1 | ||
| 41-4189 | GASKET - seal | 1 | ||
| 55-2636 | LOCKNUT | 1 | ||
| 14 | 41-4913 | HARNESS - battery cable (red) | 1 | |
| 41-4761 | HARNESS - battery cable (black) | 1 | ||
| 41-4193 | HARNESS (35) | 1 | ||
| 41-4194 | HARNESS (34) | 1 | ||
| 41-5437 | HARNESS - single wire (5.0 in lg) | 1 | ||
| 55-3834 | SCREW - harness | 1 | ||
| 55-2958 | FLATWASHER | 1 | ||
| 55-4954 | NUT | 1 | ||
| 41-4817 | CONNECTOR - liquid tite | 1 | ||
| 41-5359 | CONNECTOR - liquid tite | 1 | ||
| 55-2635 | LOCKNUT (3/4 dia) | 1 | ||
| 15 | Not Used | |||
| 16 | 41-4814 | HARNESS - hot gas bypass | 1 | |
| 17 | 41-2268 | SWITCH - hot gas bypass | 1 | |
| 41-5853 | SWITCH - only | 1 | ||
| 18 | 66-8900 | VALVE - hot gas bypass | 1 | |
| 66-8901 | COIL - valve | 1 | ||
| 19 | 41-4815 | HARNESS - interface (for connectors see 115D14) | 1 | |
| 20 | 41-4195 | HARNESS - unit display | 1 | |
| 41-4284 | CONNECTOR (6 terminal) | 1 | ||
| 41-4285 | LOCK - terminal | 1 | ||
| 41-4283 | CONNECTOR (6 terminal) | 1 | ||
| 21 | 41-7200 | MODULE - display | 1 | |
| 22 | 92-1216 | KEY - din panel (before 3/06) | 1 | |
| 92-5199 | KEY - din panel (2/06 & after) | 1 | ||
| 23 | 92-2119 | BRACKET - display | 1 | |
| 55-2977 | SCREW - bracket | 4 | ||
| 24 | 41-3590 | DRIVE - motor | 2 | |
| 841-3590 | DRIVE - motor (reman) | 1 | ||
| 40-885 | KIT - power stud cleanup (see 187F2) | 1 | ||
| 25 | 44-8197 | CONNECTOR - jumper (water pressure switch) | 1 | |
| 26 | 41-4908 | HARNESS - brushless motors (for connectors see 115D14) | 1 | |
| 27 | 55-9700 | SCREW - stud | 2 | |
| 55-2001 | FLATWASHER | 4 | ||
| 55-4560 | NUT | 2 | ||
| 28 | 51-151 | CLAMP (0.562 dia) | 2 | |
| 55-9311 | CLAMP (1.000 dia) | 2 | ||
| 55-1587 | SCREW - clamp | 5 | ||
| 55-1800 | LOCKWASHER | 5 | ||
| 55-2086 | FLATWASHER | 5 |
