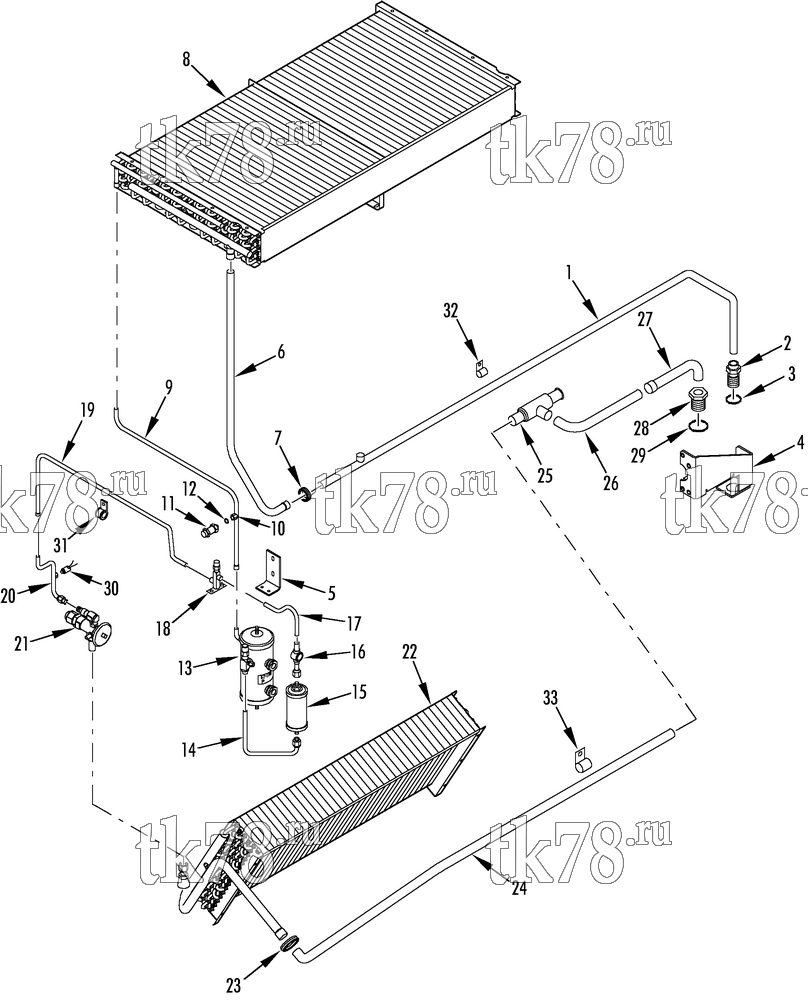

Установкa Thermo King схема REFRIGERATION COMPONENTS – 183D5
Обновление от: 8/5/08
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 66-9132 | TUBE - discharge | 1 | |
| 2 | 66-5247 | ADAPTER - bulkhead (#16) | 1 | |
| 3 | 33-1785 | O-RING | 1 | |
| 33-2789 | WASHER - sealing (brass) | 1 | ||
| 55-5741 | LOCKWASHER (1.52 id) | 1 | ||
| 55-7111 | NUT - bhd (1-7/16) | 1 | ||
| 4 | 92-2721 | BRACKET - suction/discharge | 1 | |
| 55-1587 | SCREW - bracket | 4 | ||
| 55-4953 | NUT | 4 | ||
| 55-2086 | FLATWASHER | 6 | ||
| 5 | 91-715 | BRACKET - valve | 1 | |
| 6 | 66-3719 | TUBE - coil inlet | 1 | |
| 7 | 33-316 | GROMMET (1 id) | 2 | |
| 33-287 | GROMMET (5/8 id) | 3 | ||
| 8 | 67-1499 | COIL - condenser | 1 | |
| 55-1587 | SCREW - coil | 8 | ||
| 55-4953 | NUT | 8 | ||
| 9 | 66-3712 | TUBE - condenser to receiver | 1 | |
| 10 | 55-3295 | FITTING | 1 | |
| 11 | 66-7392 | VALVE - relief | 1 | |
|
10-66-7392 | Предохранительный клапан | 3 480 ₽ |
|
| PP-66-7392 | Предохранительный клапан | 1 730 ₽ |
|
|
| 12 | 33-1015 | O-RING | 1 | |
| 33-1015 OEM | О-ринг фильтра-осушителя, 3/8" | 240 ₽ |
|
|
| 13 | 67-2325 | TANK - receiver (see 128B13) | 1 | |
| 14 | 66-3714 | TUBE - receiver to dehydrator | 1 | |
| 33-1809 | GROMMET (1/2 id) | 1 | ||
| 15 | 66-4857 | DEHYDRATOR | 1 | |
| 55-2070 | GASKET - flare nut | 2 | ||
| 55-3675 | SCREW - dehydrator | 2 | ||
| 55-2086 | FLATWASHER | 2 | ||
| 55-4953 | NUT | 2 | ||
| 55-2365 | HANGER - dehydrator | 2 | ||
| 55-2957 | SCREW - hanger | 2 | ||
| 55-1800 | LOCKWASHER | 2 | ||
| 55-2086 | FLATWASHER | 2 | ||
| 55-6526 | INSERT | 2 | ||
| 16 | 66-2047 | INDICATOR - liquid | 1 | |
| 17 | 66-8758 | TUBE - valve | 1 | |
| 18 | 66-4694 | VALVE - relief | 1 | |
| 66-2170 | CAP - valve | 1 | ||
| 55-3843 | SCREW - valve | 2 | ||
| 55-2086 | FLATWASHER | 4 | ||
| 55-4953 | NUT | 2 | ||
| 19 | 66-8759 | TUBE - liquid | 1 | |
| 20 | 61-1945 | TUBE - expansion valve | 1 | |
| 66-3571 | FITTING - saddle | 1 | ||
| 21 | 66-8895 | VALVE - expansion | 1 | |
| 66-3592 | SCREEN - inlet | 1 | ||
| 66-5369 | ELEMENT - power | 1 | ||
| 92-2016 | HOSE - insulation, thermo bulb | A/R | ||
| 22 | 67-727 | COIL - evaporator (see 183D6) | 1 | |
| 55-3493 | NUT - captive | 2 | ||
| 55-2957 | SCREW - coil | 6 | ||
| 55-4742 | FLATWASHER | 6 | ||
| 55-1800 | LOCKWASHER | 6 | ||
| 23 | 33-489 | GROMMET (1-1/4 id) | 1 | |
| 24 | 66-5762 | TUBE - crossover | 1 | |
| 25 | 66-2122 | VALVE - epr | 1 | |
| 26 | 66-5761 | TUBE - epr valve | 1 | |
| 27 | 61-1716 | TUBE - suction | 1 | |
| 28 | 55-7537 | ADAPTER | 1 | |
| 29 | 55-621 | O-RING - suction | 1 | |
| 55-5742 | LOCKWASHER (1.77 id) | 1 | ||
| 55-9231 | NUT - bhd (1-11/16 id) | 1 | ||
| 30 | 44-6349 | SWITCH - hpco | 1 | |
| 44-6427 | SWITCH - only | 1 | ||
| 31 | 55-549 | CLAMP - tube | 2 | |
| 32 | 55-1203 | CLAMP - tube (0.875 dia) | 2 | |
| 55-3843 | SCREW - clamp | 1 | ||
| 55-2001 | FLATWASHER | 2 | ||
| 55-4560 | NUT | 1 | ||
| 33 | 55-4552 | CLAMP - tube (1.000 dia) | 1 | |
| 55-3234 | CLAMP - tube (1.125 dia) | 2 | ||
| 55-2957 | SCREW - clamp | 3 | ||
| 55-2086 | FLATWASHER | 6 | ||
| 55-4953 | NUT | 3 |
