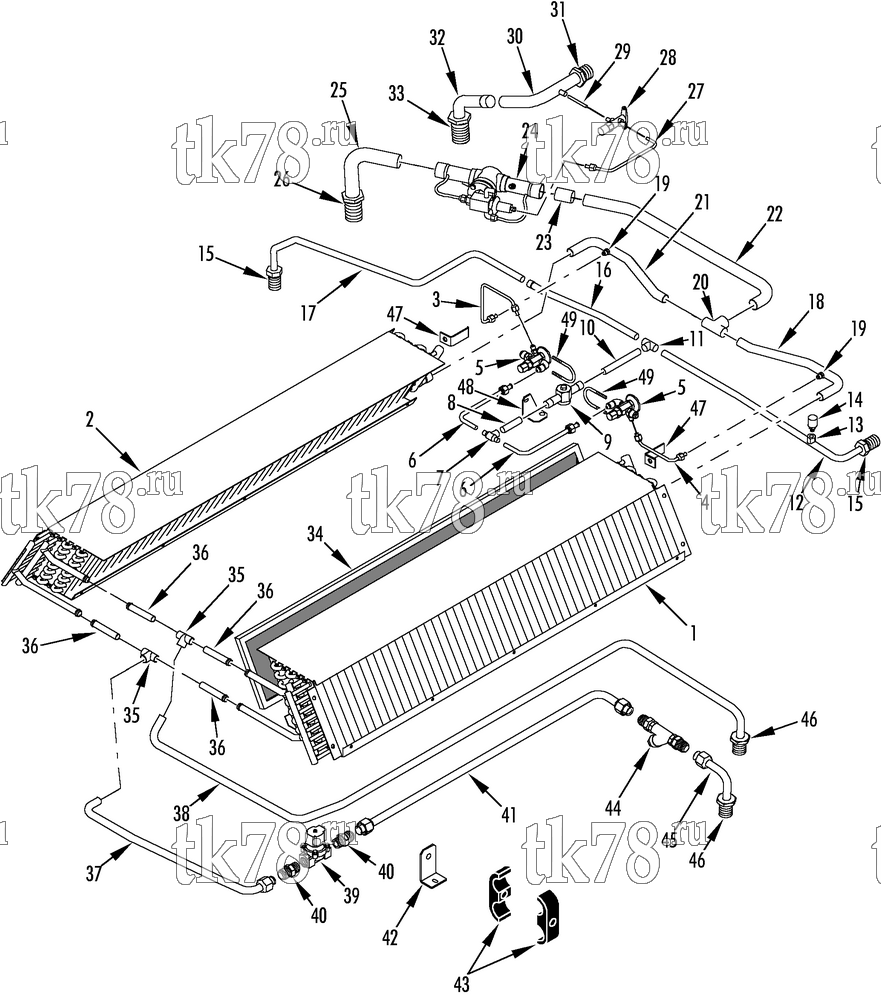

Установкa Thermo King схема EVAPORATOR REFRIGERATION – 183C0
Обновление от: 2/24/03
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 67-1932 | COIL - evaporator (roadside) | 1 | |
| 2 | 67-1931 | COIL - evaporator (curbside) | 1 | |
| 91-8127 | STRIP - sealing | A/R | ||
| 55-2991 | SCREW - coil | 20 | ||
| 55-2001 | FLATWASHER | 20 | ||
| 55-2964 | LOCKWASHER | 20 | ||
| 55-6721 | INSERT | 20 | ||
| 3 | 66-7550 | TUBE - equalizer (curbside) | 1 | |
| 4 | 66-7551 | TUBE - equalizer (roadside) | 1 | |
| 5 | 66-7904 | VALVE - expansion | 2 | |
| 61-811 | SCREEN - inlet | 1 | ||
| 66-7401 | ELEMENT - power | 1 | ||
| 6 | 66-7547 | TUBE - tee to valve | 2 | |
| 7 | 55-7142 | TEE (3/8 x 3/8 x 5/8) | 1 | |
| 8 | 66-7546 | TUBE - tee to indicator | 1 | |
| 9 | 66-2648 | INDICATOR - liquid | 1 | |
| 66-9273 | INDICATOR - dry eye | 1 | ||
| 10 | 61-2166 | TUBE - indicator to tee | 1 | |
| 11 | 55-904 | TEE (5/8 x 5/8 x 5/8) | 1 | |
| 12 | 61-2167 | TUBE - sight glass to adapter | 1 | |
| 13 | 66-4139 | FITTING - saddle | 1 | |
| 14 | 44-5833 | SWITCH - hpco | 1 | |
| 44-5834 | SWITCH - only | 1 | ||
| 15 | 55-9699 | ADAPTER - bulkhead (#12) | 2 | |
| 55-6812 | NUT - adapter | 2 | ||
| 55-8785 | LOCKWASHER | 2 | ||
| 33-2193 | GASKET - o-ring | 2 | ||
| 16 | 61-1911 | TUBE - tee to swage | 1 | |
| 17 | 61-1916 | TUBE - bulkhead | 1 | |
| 18 | 66-7549 | TUBE - coil to tee | 1 | |
| 66-9842 | VALVE (Schrader) | 1 | ||
| 19 | 66-874 | FITTING - equalizer tube | 2 | |
| 20 | 55-6508 | TEE | 1 | |
| 21 | 66-9862 | TUBE - coil to tee | 1 | |
| 22 | 66-7905 | TUBE - tee to epr valve | 1 | |
| 23 | 55-3307 | BUSHING | 1 | |
| 24 | 66-5136 | VALVE (EPR, see 129C13) | 1 | |
| 66-7181 | FITTING - refrigerant | 1 | ||
| 66-7182 | CAP - fitting | 1 | ||
| 55-4488 | HANGER - valve | 1 | ||
| 55-3462 | SCREW - hanger | 1 | ||
|
20-55-3462 | Болт | 600 ₽ |
|
| 55-2086 | FLATWASHER | 1 | ||
| 55-1800 | LOCKWASHER | 1 | ||
| 25 | 66-7910 | TUBE - epr to adapter | 1 | |
| 26 | 55-8373 | ADAPTER - bulkhead (#20) | 1 | |
| 55-5996 | NUT - bulkhead | 1 | ||
| 55-5999 | LOCKWASHER (2.0 id) | 1 | ||
| 27 | 66-7903 | TUBE - bypass | 1 | |
| 28 | 66-4102 | VALVE - shutoff | 1 | |
| 29 | 66-8797 | TUBE - bypass | 1 | |
| 30 | 61-1914 | TUBE - discharge | 1 | |
| 66-5752 | FITTING - tube | 1 | ||
| 31 | 61-2168 | ADAPTER - bulkhead (#16) | 1 | |
| 55-7111 | NUT - bulkhead | 1 | ||
| 55-5741 | LOCKWASHER | 1 | ||
| 33-1777 | GASKET - o-ring | 1 | ||
| 32 | 61-1915 | TUBE - bulkhead | 1 | |
| 33 | 55-7832 | ADAPTER - bulkhead (#20) | 1 | |
| 55-9231 | NUT - bulkhead | 1 | ||
| 55-5742 | LOCKWASHER | 1 | ||
| 33-1785 | GASKET - o-ring | 1 | ||
| 34 | 91-6747 | FILTER - air | 2 | |
| 35 | 55-7065 | TEE | 2 | |
| 36 | 66-9275 | TUBE - water | 4 | |
| 37 | 61-683 | TUBE - valve to tee | 1 | |
| 38 | 61-685 | TUBE - tee to adapter | 1 | |
| 39 | 41-7599 | VALVE - solenoid, water | 1 | |
| 55-4397 | U-BOLT - valve | 2 | ||
| 55-2086 | FLATWASHER | 4 | ||
| 55-1800 | LOCKWASHER | 4 | ||
| 55-4953 | NUT | 4 | ||
| 40 | 55-2787 | COUPLING - valve | 2 | |
| 41 | 66-686 | TUBE - strainer to valve | 1 | |
| 42 | 92-876 | BRACKET - tube clamp | 1 | |
| 43 | 55-7840 | CLAMP - tube | 8 | |
| 55-7976 | SCREW - clamp | 4 | ||
| 55-2086 | FLATWASHER | 8 | ||
| 55-1800 | LOCKWASHER | 4 | ||
| 55-4953 | NUT | 4 | ||
| 44 | 61-687 | STRAINER - water line | 1 | |
| 55-9609 | COUPLING - strainer | 2 | ||
| 45 | 61-684 | TUBE - water inlet | 1 | |
| 46 | 55-8784 | ADAPTER - bulkhead | 2 | |
| 55-7706 | NUT - adapter | 2 | ||
| 55-8785 | LOCKWASHER | 2 | ||
| 47 | 92-2277 | BRACKET - expansion valve | 2 | |
| 55-1587 | SCREW - bracket | 2 | ||
| 55-2086 | FLATWASHER | 2 | ||
| 55-1800 | LOCKWASHER | 2 | ||
| 55-8711 | INSERT - threaded | 1 | ||
| 48 | 92-1345 | BRACKET - tube support | 1 | |
| 91-372 | CLAMP - tube | 1 | ||
| 55-1587 | SCREW - angle | 1 | ||
| 55-2086 | FLATWASHER | 1 | ||
| 55-1800 | LOCKWASHER | 1 | ||
| 49 | 55-5211 | U-BOLT - expansion valve | 2 | |
| 55-2001 | FLATWASHER | 4 | ||
| 55-4560 | NUT | 4 |
