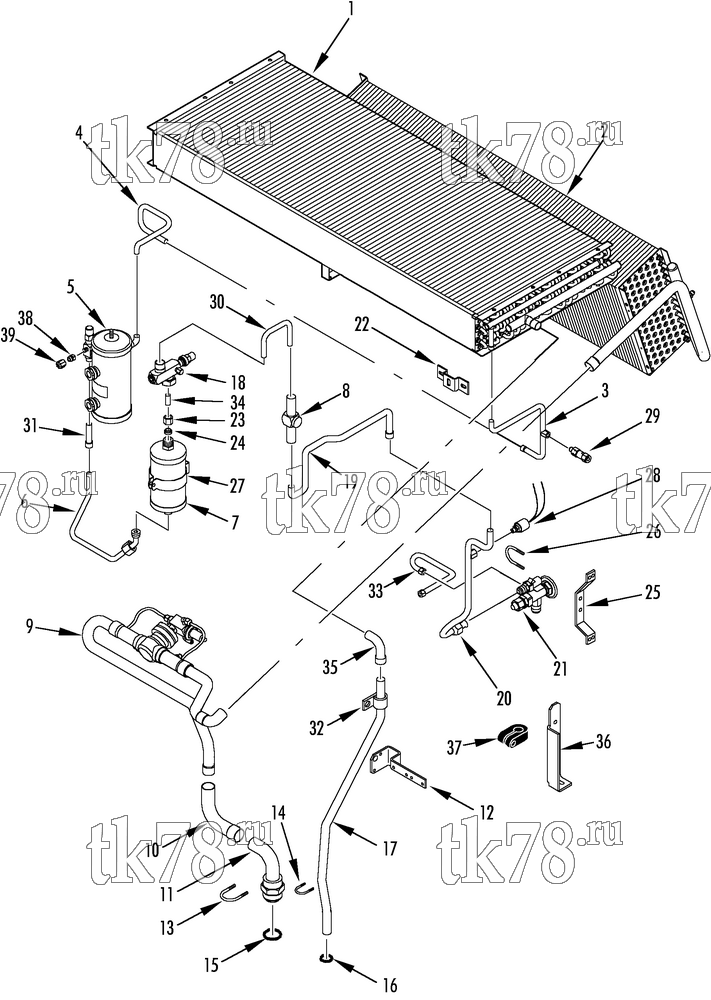

Установкa Thermo King схема REFRIGERATION COMPONENTS (w/ EPR VALVE) – 182E3
Обновление от: 8/5/08
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 67-1617 | COIL - condenser | 1 | |
| 55-1587 | SCREW - coil | 11 | ||
| 55-1800 | LOCKWASHER | 11 | ||
| 55-2086 | FLATWASHER | 11 | ||
| 55-6526 | INSERT | 8 | ||
| 55-3059 | NUT - captive | 3 | ||
| 2 | 67-718 | COIL - evaporator/heater | 1 | |
| 67-867 | COIL - evaporator/heater (lacquer coating) | 1 | ||
| 3 | 66-8581 | TUBE - condenser to receiver | 1 | |
| 55-3295 | FITTING - saddle | 1 | ||
| 4 | 66-8582 | TUBE - bulkhead | 1 | |
| 5 | 67-2325 | TANK - receiver (see 128B13) | 1 | |
| 6 | 66-8583 | TUBE - receiver to dehydrator | 1 | |
| 55-6839 | SHOULDER | 1 | ||
| 55-6396 | NUT - shoulder | 1 | ||
| 7 | 61-600 | DEHYDRATOR | 1 | |
|
US-61-600 | Дегидратор, SL/SLe/SLX/SLXe/SMX/SMX-II/SB / UT-800/1200 | 8 100 ₽ |
|
|
PP-61-600 | Дегидратор, SL/SLe/SLX/SLXe/SMX/SMX-II/SB / UT-800/1200 | 2 490 ₽ |
|
| 33-566 | O-RING - dehydrator (1/2 id) | 1 | ||
| 33-2115 | O-RING - dehydrator (5/8 id) | 1 | ||
| 8 | 66-1188 | INDICATOR - liquid | 1 | |
| 9 | 66-9959 | VALVE - epr (R134a, see 142A7) | 1 | |
| 66-8869 | VALVE - epr (R22, see 142A7) | 1 | ||
| 10 | 66-3890 | TUBE - elbow | 1 | |
| 11 | 66-5457 | TUBE - suction adapter | 1 | |
| 55-4185 | ADAPTER - suction tube | 1 | ||
| 12 | 91-9595 | BRACKET - tube (discharge/suction) | 1 | |
| 55-1587 | SCREW - bracket | 2 | ||
| 55-4953 | NUT | 2 | ||
| 55-2086 | FLATWASHER | 2 | ||
| 13 | 55-5122 | U-BOLT - suction tube | 1 | |
| 14 | 55-4397 | U-BOLT - discharge tube | 1 | |
| 55-4953 | NUT - u-bolt | 4 | ||
| 55-2086 | FLATWASHER | 4 | ||
| 15 | 33-544 | O-RING - suction adapter | 1 | |
| 16 | 33-594 | O-RING - discharge adapter | 1 | |
| 17 | 66-9697 | TUBE - discharge | 1 | |
| 66-874 | FITTING (1/4 flare) | 1 | ||
| 55-5355 | ADAPTER - discharge | 1 | ||
| 18 | 66-8586 | VALVE - shutoff | 1 | |
| 19 | 66-8827 | TUBE - bulkhead to indicator | 1 | |
| 20 | 66-8829 | TUBE - bulkhead to expansion valve | 1 | |
| 66-3571 | FITTING - saddle | 1 | ||
| 21 | 66-7371 | VALVE - expansion (R134a) | 1 | |
| 66-7393 | VALVE - expansion (R22) | 1 | ||
| 66-3592 | SCREEN - inlet | 1 | ||
| 66-4212 | ELEMENT - power | 1 | ||
| 92-2016 | INSULATION - thermo bulb (cut to 5.0 in) | A/R | ||
| 22 | 91-7826 | BRACKET - valve | 1 | |
| 55-1587 | SCREW - bracket | 2 | ||
| 55-2086 | FLATWASHER | 2 | ||
| 55-1800 | LOCKWASHER | 2 | ||
| 23 | 55-6838 | NUT | 1 | |
| 24 | 55-6837 | SLEEVE | 1 | |
| 25 | 99-7804 | BRACKET - expansion valve | 1 | |
| 55-2991 | SCREW - bracket | 4 | ||
| 55-2001 | FLATWASHER | 8 | ||
| 55-4560 | NUT | 4 | ||
| 26 | 55-5211 | U-BOLT - valve | 1 | |
| 55-2001 | FLATWASHER | 2 | ||
| 55-4560 | NUT - u-bolt | 2 | ||
| 27 | 55-2192 | HANGER - dehydrator | 2 | |
| 55-3675 | SCREW - dehydrator | 2 | ||
| 55-4953 | NUT | 2 | ||
| 55-2977 | SCREW - hanger | 2 | ||
| 55-1800 | LOCKWASHER | 2 | ||
| 55-2086 | FLATWASHER | 4 | ||
| 28 | 44-6965 | SWITCH - condenser fan (R134a, for connectors see 115D14) | 1 | |
| 41-307 | SWITCH - only (R134a) | 1 | ||
| 44-6349 | SWITCH - condenser fan (R22, for connectors see 115D14) | 1 | ||
| 55-6427 | SWITCH - only (R22) | 1 | ||
| 29 | 66-7392 | VALVE - relief (see 119B8) | 1 | |
|
10-66-7392 | Предохранительный клапан | 3 480 ₽ |
|
| PP-66-7392 | Предохранительный клапан | 1 730 ₽ |
|
|
| 30 | 66-8584 | TUBE - valve to sight glass | 1 | |
| 31 | 66-5151 | TUBE - receiver outlet | 1 | |
| 32 | 91-5114 | CLAMP - tube | 1 | |
| 33 | 66-3878 | TUBE - equalizer | 1 | |
| 34 | 66-8585 | TUBE - shutoff valve to dehydrator | 1 | |
| 35 | 66-8826 | TUBE - coil to discharge | 1 | |
| 36 | 91-7827 | BRACKET - valve | 1 | |
| 55-2977 | SCREW - bracket | 1 | ||
| 55-1800 | LOCKWASHER | 1 | ||
| 55-2086 | FLATWASHER | 1 | ||
| 37 | 55-6389 | CLAMP - tube (1/2 in dia) | 2 | |
| 55-2979 | SCREW - clamp | 2 | ||
| 55-2086 | FLATWASHER | 4 | ||
| 55-4953 | NUT | 2 | ||
| 38 | 66-8086 | FITTING - discharge (R134a) | 1 | |
| 39 | 66-7182 | CAP - fitting | 1 |
