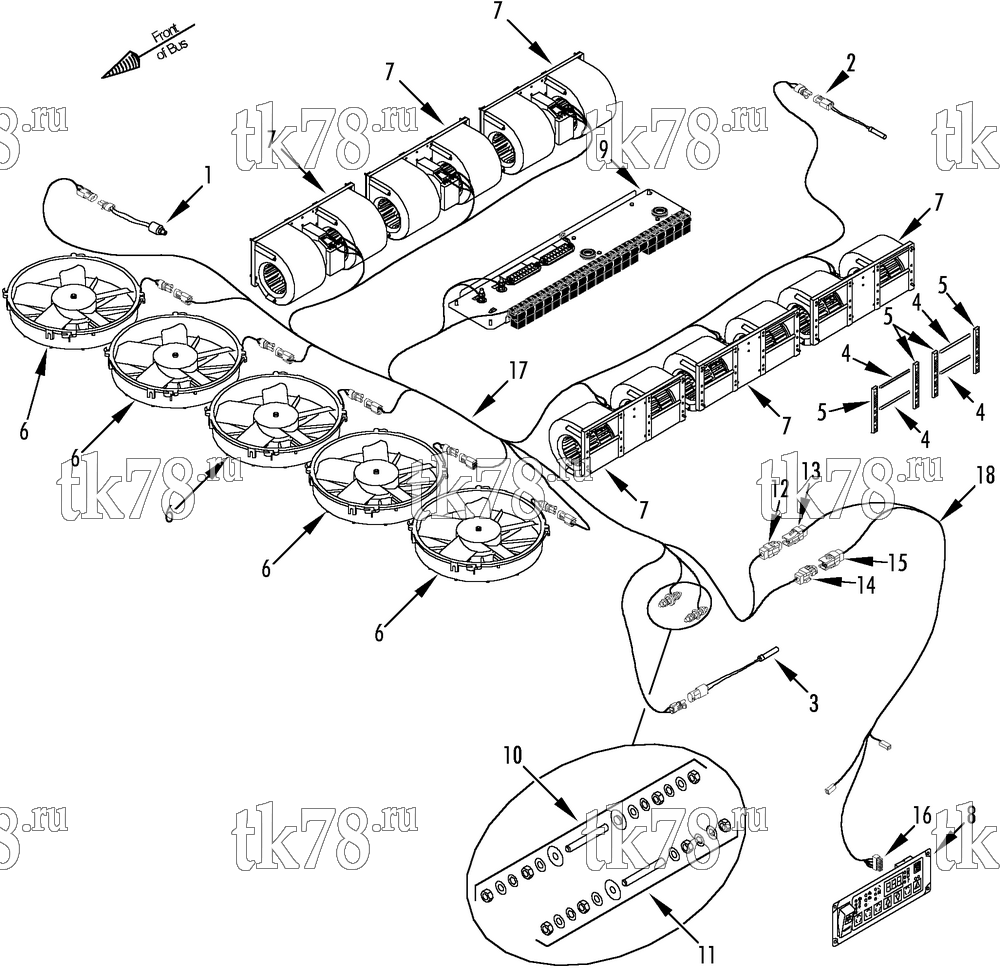

Установкa Thermo King схема ELECTRICAL COMPONENTS – 182E0
Обновление от: 6/23/13
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 41-5220 | SWITCH - hpco | 1 | |
| 41-3831 | SWITCH - only | 1 | ||
| 2 | 40-975 | KIT - temperature sensor | 2 | |
|
40-975 OEM | Датчик температуры к-т, некалиброванный | 10 310 ₽ |
|
|
10-40-975 | Датчик температуры к-т, некалиброванный | 4 660 ₽ |
|
| NSS | SENSOR - ungraded (18 in) | 1 | ||
| 41-5210 | COLLAR - crimp | 2 | ||
| 92-846 | HEATSHRINK (1/2 in) | 2 | ||
| 3 | 41-7706 | SENSOR - temperature | 1 | |
| 4 | 99-1908 | STRIP - neoprene (25 ft) | A/R | |
| 5 | 91-9925 | INSULATION - blower | 24 | |
| 6 | 78-1344 | FAN - condenser (see 182E9) | 5 | |
| 7 | 78-1297 | BLOWER & MOTOR | 6 | |
| 55-7368 | FLATWASHER | 24 | ||
| 55-7031 | LOCKWASHER | 24 | ||
| 55-7664 | SCREW - blower | 24 | ||
| 8 | 45-1773 | PANEL - driver display (see 160C1) | 1 | |
| 9 | NSS | PANEL - electrical (see 182F4) | 1 | |
| 10 | 55-9367 | STUD - positive | 1 | |
| 55-8631 | WASHER (nylon w/ shoulder) | 1 | ||
| 55-8693 | WASHER (nylon) | 1 | ||
| 55-8955 | FLATWASHER | 4 | ||
| 55-3238 | LOCKWASHER | 2 | ||
| 305-1653 | NUT | 4 | ||
| 11 | 55-9191 | STUD - negative | 1 | |
| 55-3672 | LOCKWASHER | 6 | ||
| 55-448 | FLATWASHER | 4 | ||
| 55-9189 | NUT | 4 | ||
| 12 | 41-3882 | CONNECTOR - plug (6 socket) | 1 | |
| 41-1945 | STRAIN RELIEF - connector (6-pin) | 1 | ||
| 13 | 304-2657 | CONNECTOR - receptacle (6-pin) | 1 | |
| 41-1945 | STRAIN RELIEF - connector (6-pin) | 1 | ||
| 14 | 41-2493 | CONNECTOR - plug (12 socket) | 1 | |
| 41-1952 | STRAIN RELIEF - connector (12 position) | 1 | ||
| 15 | 304-2652 | CONNECTOR (12-pin, female) | 1 | |
| 41-1952 | STRAIN RELIEF - connector (12 position) | 1 | ||
| 16 | 41-661 | CONNECTOR (14 terminal) | 1 | |
| 17 | 41-3704 | HARNESS - main (see 182F2) | 1 | |
| 18 | 41-3705 | HARNESS - unit to driver panel (18.3 m) | 1 |
