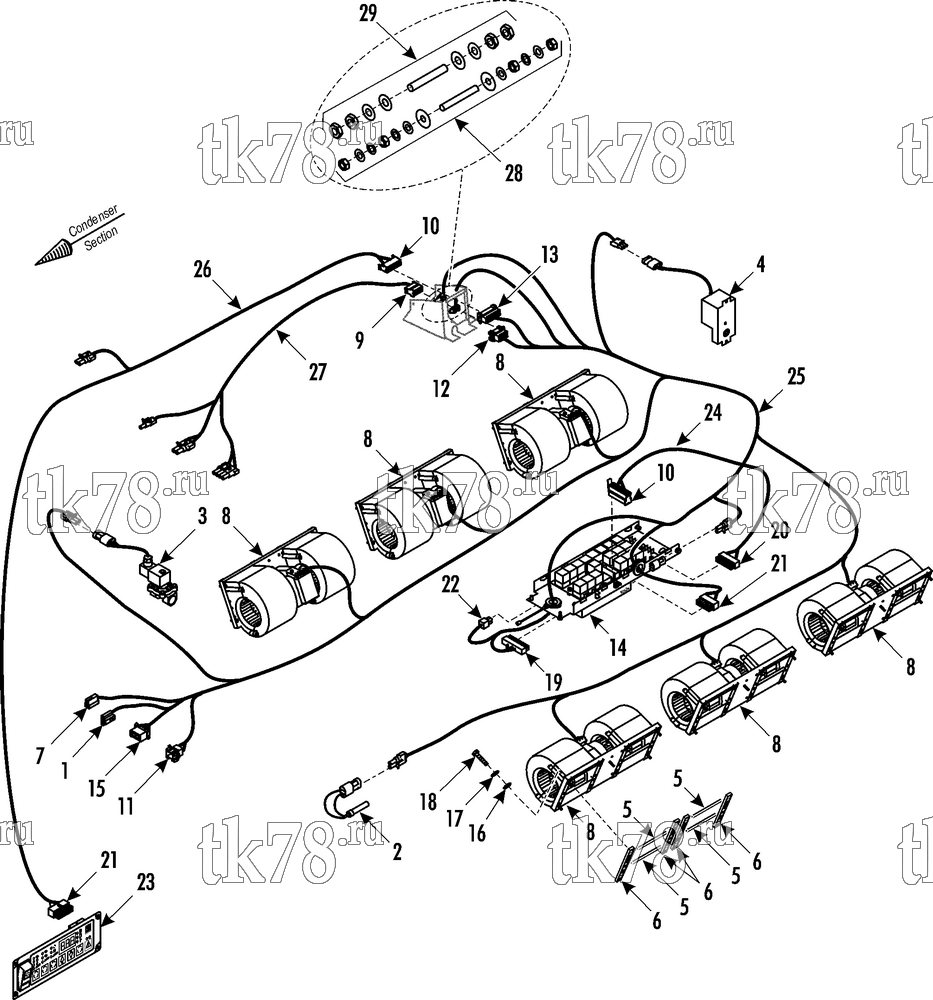

Установкa Thermo King схема ELECTRICAL COMPONENTS - EVAPORATOR – 181G1
Обновление от: 6/23/13
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 41-3493 | CONNECTOR - housing (3-pin) | 1 | |
| 2 | 40-975 | KIT - temperature sensor | 1 | |
|
40-975 OEM | Датчик температуры к-т, некалиброванный | 10 310 ₽ |
|
|
10-40-975 | Датчик температуры к-т, некалиброванный | 4 660 ₽ |
|
| NSS | SENSOR - ungraded (18 in) | 1 | ||
| 41-5210 | COLLAR - crimp | 2 | ||
| 92-846 | HEATSHRINK (1/2 in) | 2 | ||
| 3 | 41-3350 | VALVE - solenoid (water) | 1 | |
| 4 | 41-2420 | MOTOR - geared (see 156D4) | 1 | |
| 5 | 33-3530 | STRIP - neoprene (10 ft) | A/R | |
| 6 | 91-9925 | INSULATION | 24 | |
| 7 | 41-2891 | CONNECTOR (2 terminal, male) | 1 | |
| 8 | 78-1198 | BLOWER - evaporator | 6 | |
| 9 | 41-3855 | TERMINAL - connector (10-pin, female) | 1 | |
| 10 | 41-3856 | TERMINAL - connector (18-pin, female) | 2 | |
| 11 | 41-4055 | CONNECTOR (6-pin, male) | 1 | |
| 12 | 41-4054 | CONNECTOR (10-pin, male) | 2 | |
| 13 | 41-2772 | CONNECTOR (18-pin, male) | 1 | |
| 14 | NSS | PANEL - control (see 181G2) | 1 | |
| 15 | 41-3862 | CONNECTOR - housing (6-pin) | 1 | |
| 16 | 55-7697 | FLATWASHER | 30 | |
| 17 | 55-7031 | LOCKWASHER | 30 | |
| 18 | 55-7696 | SCREW - blower to frame | 30 | |
| 19 | 41-656 | CONNECTOR - inline (24 terminal) | 1 | |
| 20 | 41-650 | CONNECTOR - inline (18 terminal) | 1 | |
| 21 | 41-661 | CONNECTOR - inline (14 terminal) | 2 | |
| 22 | 41-654 | CONNECTOR - inline (4 terminal) | 1 | |
| 23 | 45-1773 | PANEL - driver display (IntelligAIRE, see 152B12) | 1 | |
| 24 | 41-4047 | HARNESS - control panel to relay | 1 | |
| 25 | 41-5214 | HARNESS - evaporator (for connectors see 115D14) | 1 | |
| 44-5763 | DIODE - rectifier | 1 | ||
| 41-3968 | BOARD - rectifier | 1 | ||
| 26 | 41-5215 | HARNESS - driver panel (for connectors see 115D14) | 1 | |
| 27 | 41-5216 | HARNESS - compressor (for connectors see 115D14) | 1 | |
| 28 | 55-9367 | STUD - terminal (positive) | 1 | |
| 55-8631 | WASHER (nylon) | 2 | ||
| 55-8955 | FLATWASHER | 4 | ||
| 55-3238 | LOCKWASHER | 3 | ||
| 305-163 | NUT | 4 | ||
| 29 | 55-3167 | STUD - terminal (negative) | 1 | |
| 55-3672 | LOCKWASHER | 1 | ||
| 55-448 | FLATWASHER | 4 | ||
| 55-671 | NUT | 4 |
