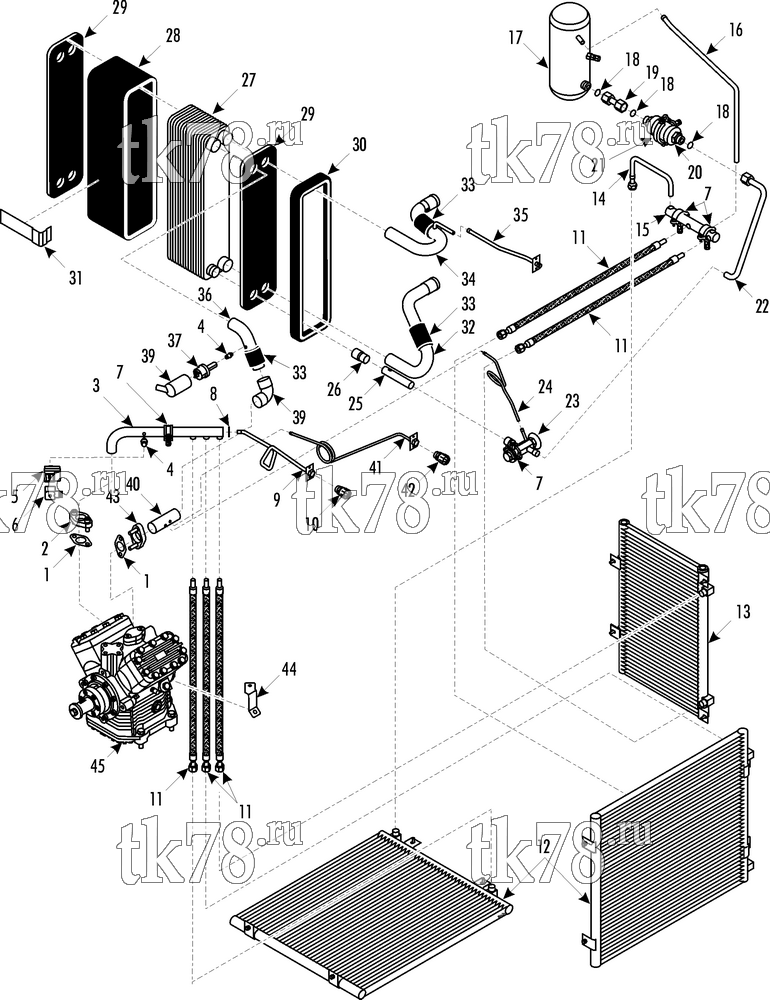

Установкa Thermo King схема REFRIGERATION COMPONENTS - AQUACLIME BOX (STANDARD & TROPIC) – 181F2
Обновление от: 6/13/12
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 33-3700 | GASKET | 2 | |
| 2 | 61-1954 | FLANGE | 1 | |
| 55-9496 | SCREW - flange | 2 | ||
| 3 | 61-1955 | TUBE (Tropic) | 1 | |
| 61-1956 | TUBE (Standard) | 1 | ||
| 4 | 55-9705 | VALVE - body | 2 | |
| 5 | 41-7265 | SWITCH - hpco | 1 | |
| 6 | 41-5205 | SOCKET - switch | 1 | |
| 7 | 51-315 | CLAMP | 4 | |
| 55-5022 | SCREW - clamp | 3 | ||
| 55-4998 | SCREW - clamp | 1 | ||
| 55-4621 | NUT | 2 | ||
| 8 | 51-316 | WASHER - reducing | 1 | |
| 9 | 61-1957 | TUBE - assembly | 1 | |
| 10 | 61-1124 | PORT - service | 1 | |
| 11 | 61-1958 | HOSE (Tropic) | 5 | |
| 61-1958 | HOSE (Standard) | 3 | ||
| 12 | 67-1911 | COIL - condenser | 2 | |
| 55-7373 | NUT - captive | 2 | ||
| 55-5955 | SCREW - coil | 4 | ||
| 55-4608 | LOCKWASHER | 4 | ||
| 55-4607 | FLATWASHER | 4 | ||
| 13 | 67-1912 | COIL - condenser (Tropic) | 1 | |
| 55-5955 | SCREW - coil | 4 | ||
| 55-4608 | LOCKWASHER | 4 | ||
| 55-4607 | FLATWASHER | 4 | ||
| 14 | 61-1959 | TUBE - assembly | 1 | |
| 51-317 | NUT | 1 | ||
| 15 | 61-1960 | TUBE (Tropic) | 1 | |
| 61-1961 | TUBE (Standard) | 1 | ||
| 16 | 61-1962 | TUBE - to tank | 1 | |
| 17 | 67-1913 | TANK - receiver | 1 | |
| 55-4625 | FLATWASHER | 2 | ||
| 55-5411 | LOCKWASHER | 2 | ||
| 55-6573 | NUT | 2 | ||
| 18 | 33-239 | O-RING | 3 | |
| 33-239 OEM | О-ринг крышки масляного насоса компрессора X214/426/430 | 60 ₽ |
|
|
| 19 | 61-1963 | TUBE - assembly | 1 | |
| 61-1964 | TUBE | 1 | ||
| 55-6356 | SHOULDER | 2 | ||
| 55-6396 | NUT - shoulder | 2 | ||
| 20 | 61-1757 | FILTER - drier | 1 | |
| 21 | 51-318 | CLAMP | 1 | |
| 55-4998 | SCREW - clamp | 1 | ||
| 22 | 61-1965 | TUBE - filter to valve | 1 | |
| 55-6356 | SHOULDER | 1 | ||
| 55-6396 | NUT - shoulder | 1 | ||
| 23 | 61-1966 | VALVE - expansion | 1 | |
| 24 | 61-1967 | TUBE - valve to suction tube | 1 | |
| 25 | 61-1968 | TUBE - valve to exchanger | 1 | |
| 26 | 55-1292 | BUSHING (1-1/8 x 7/8) | 1 | |
| 27 | 67-1914 | COIL - heater | 1 | |
| 55-7069 | FLATWASHER | 4 | ||
| 55-7006 | NUT | 4 | ||
| 28 | 33-3702 | INSULATION - exchanger | 1 | |
| 29 | 33-3703 | INSULATION - exchanger (cover) | 2 | |
| 30 | 33-3704 | INSULATION - exchanger | 1 | |
| 31 | 33-3705 | INSULATION - latch | 1 | |
| 32 | 61-1969 | TUBE - water | 1 | |
| 33 | 92-2016 | TUBING - sponge rubber (5 ft) | A/R | |
| 34 | 61-1970 | TUBE - water | 1 | |
| 35 | 61-1971 | TUBE | 1 | |
| 36 | 61-1972 | TUBE - coil to elbow | 1 | |
| 37 | 41-4331 | SWITCH - lpco | 1 | |
| 38 | 92-2741 | COVER - switch | 1 | |
| 39 | 55-3094 | ELBOW | 1 | |
| 40 | 61-1973 | TUBE - elbow to compressor | 1 | |
| 41 | 61-1974 | TUBE | 1 | |
| 42 | 61-1123 | PORT - service | 1 | |
| 43 | 61-1954 | FLANGE | 1 | |
| 55-9496 | SCREW | 2 | ||
| 44 | 92-2742 | BRACKET | 1 | |
| 45 | 102-805 | COMPRESSOR - FKX 40/655K (Tropic see 184H5) | 1 | |
| 102-806 | COMPRESSOR - FKX 40/560K (Standard see 175G2) | 1 | ||
| 51-141 | SCREW | 4 | ||
| 55-7024 | FLATWASHER | 4 |
