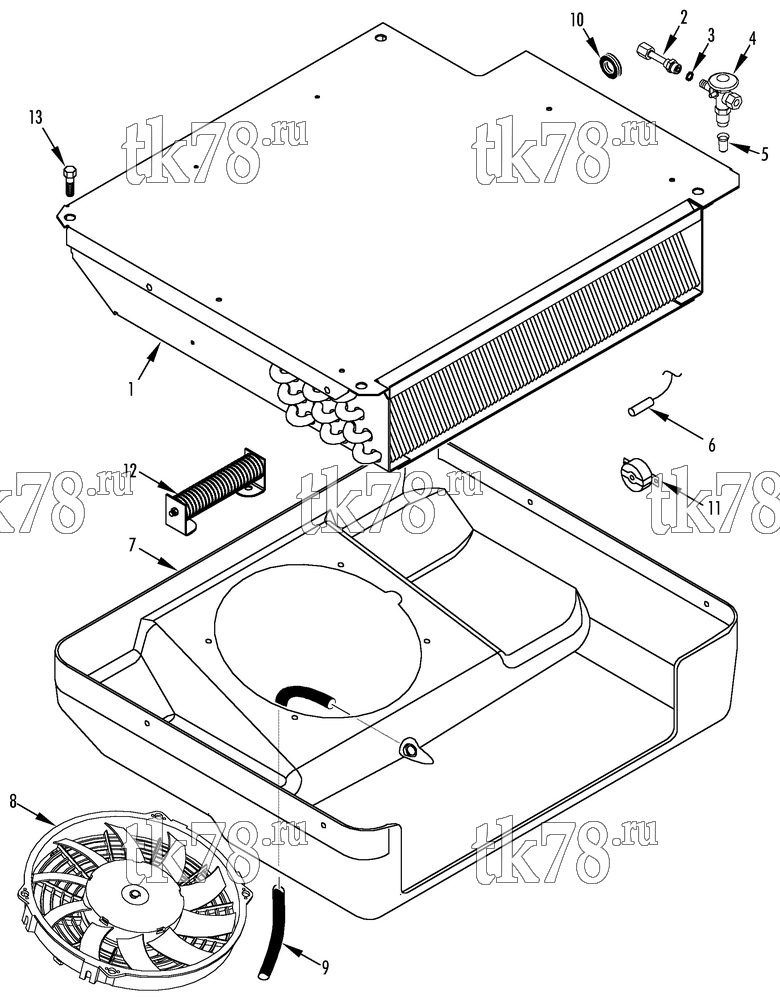

Установкa Thermo King схема EVAPORATOR ASSEMBLY (ES100) – 180D4
Обновление от: 5/18/13
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 67-1691 | COIL - evaporator | 1 | |
| 2 | 61-559 | TUBE - expansion valve | 1 | |
| 3 | 33-566 | O-RING (#8) | 1 | |
| 4 | 66-9317 | VALVE - expansion | 1 | |
| 5 | 61-1297 | FILTER - valve | 1 | |
| 6 | 41-3143 | SENSOR - temperature | 1 | |
| 55-9825 | CLAMP - sensor | 1 | ||
| 55-9452 | SCREW - clamp | 1 | ||
| 55-7861 | LOCKWASHER | 1 | ||
| 55-7697 | FLATWASHER | 1 | ||
| 7 | 98-5887 | COVER - evaporator | 1 | |
| 55-7340 | SCREW - cover | 8 | ||
| 55-7404 | LOCKWASHER | 8 | ||
| 55-9826 | FLATWASHER | 8 | ||
| 8 | 78-1183 | FAN - evaporator (12V) | 1 | |
| P-54-60004-02 | Вентилятор испарителя 12V, Viento 200 | 10 220 ₽ |
|
|
| 10-78-1373 | Вентилятор испарителя 12V, V-Series/C-Series | 10 220 ₽ |
|
|
|
PP-78-1373 | Вентилятор испарителя 12V, V-Series/C-Series | 4 460 ₽ |
|
| PP-54-60004-02 | Вентилятор испарителя 12V, Viento 200 | 4 460 ₽ |
|
|
| 78-1374 | FAN - evaporator (24V) | 1 | ||
| 10-78-1374 | Вентилятор испарителя 24V, V/C-Series | 9 820 ₽ |
|
|
|
PP-78-1374 | Вентилятор испарителя 24V, V/C-Series | 5 470 ₽ |
|
| 9 | 11-9222 | HOSE - drain | 1 | |
| 10 | 33-3135 | GROMMET (35 mm) | 2 | |
| 33-2659 | GROMMET (8 x 15) | 1 | ||
| 11 | 41-3136 | SWITCH - thermostat | 1 | |
| 55-9488 | SCREW - switch | 2 | ||
| 12 | 41-3781 | RESISTOR | 1 | |
| 92-2503 | SUPPORT - resistor | 2 | ||
| 55-9898 | RIVET - support | A/R | ||
| 13 | 55-7172 | SCREW - evaporator | 4 | |
| 55-8893 | WASHER - fender | 4 | ||
| 55-7007 | NUT | 4 |
