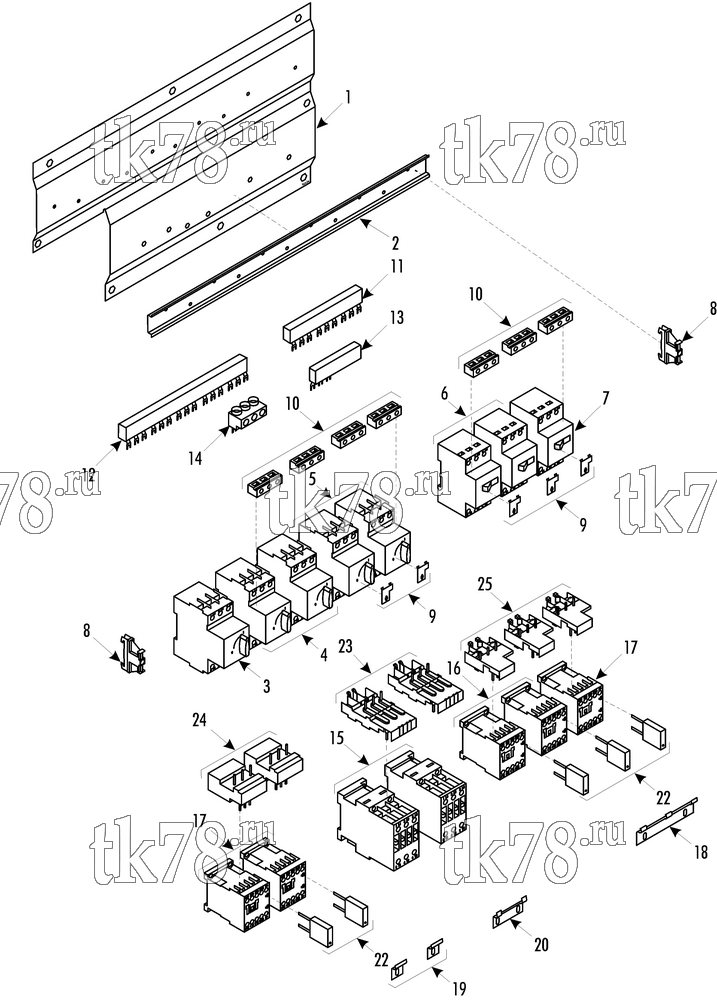

Установкa Thermo King схема CONTACTOR & CIRCUIT BREAKER GROUP – 179C3
Обновление от: 11/10/12
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 92-2612 | PANEL - mounting | 1 | |
| 55-6994 | SCREW - panel | 8 | ||
| 55-6996 | LOCKWASHER | 8 | ||
| 55-7075 | FLATWASHER | 8 | ||
| 51-290 | NUT- captive | 8 | ||
| 2 | 92-1416 | RAIL - din | 1 | |
| 55-5130 | RIVET | 11 | ||
| 3 | 41-2937 | BREAKER - circuit 2.0 amp | 1 | |
| 4 | 41-2933 | BREAKER - circuit 20.0 amp | 2 | |
| 5 | 41-5129 | BREAKER - circuit 12.5 amp | 2 | |
| 6 | 41-5130 | BREAKER - circuit 2.5 amp | 2 | |
| 7 | 41-3885 | BREAKER - circuit 5.0 amp | 1 | |
| 8 | 91-6465 | CLAMP - rail | 2 | |
| 9 | 41-4279 | COVER - scale | 5 | |
| 10 | 41-2931 | BLOCK - contact (aux switch) | 7 | |
| 11 | 41-3889 | BUSBAR (9-pin) | 1 | |
| 12 | 41-2932 | BUSBAR (15-pin) | 1 | |
| 13 | 41-4685 | BUSBAR (6-pin) | 1 | |
| 14 | 41-3891 | TERMINAL - input | 1 | |
| 15 | 41-4727 | CONTACTOR - 7.5 kW | 2 | |
| 16 | 41-2984 | CONTACTOR - 3 kW | 2 | |
| 17 | 41-3515 | CONTACTOR - 4 kW | 3 | |
| 18 | 92-2004 | BRACKET - contactor | 1 | |
| 19 | 92-2002 | BRACKET - contactor | 2 | |
| 20 | 92-2036 | BRACKET - contactor | 1 | |
| 55-7663 | SCREW - contactor brackets | 6 | ||
| 55-7861 | LOCKWASHER | 6 | ||
| 55-7697 | FLATWASHER | 6 | ||
| 55-9866 | NUT - captive | 6 | ||
| 22 | 41-3812 | SUPPRESSOR | 5 | |
| 23 | 41-2943 | ELEMENT - coupling | 2 | |
| 24 | 41-2944 | ELEMENT - coupling | 2 | |
| 25 | 41-3807 | ELEMENT - coupling | 3 |
