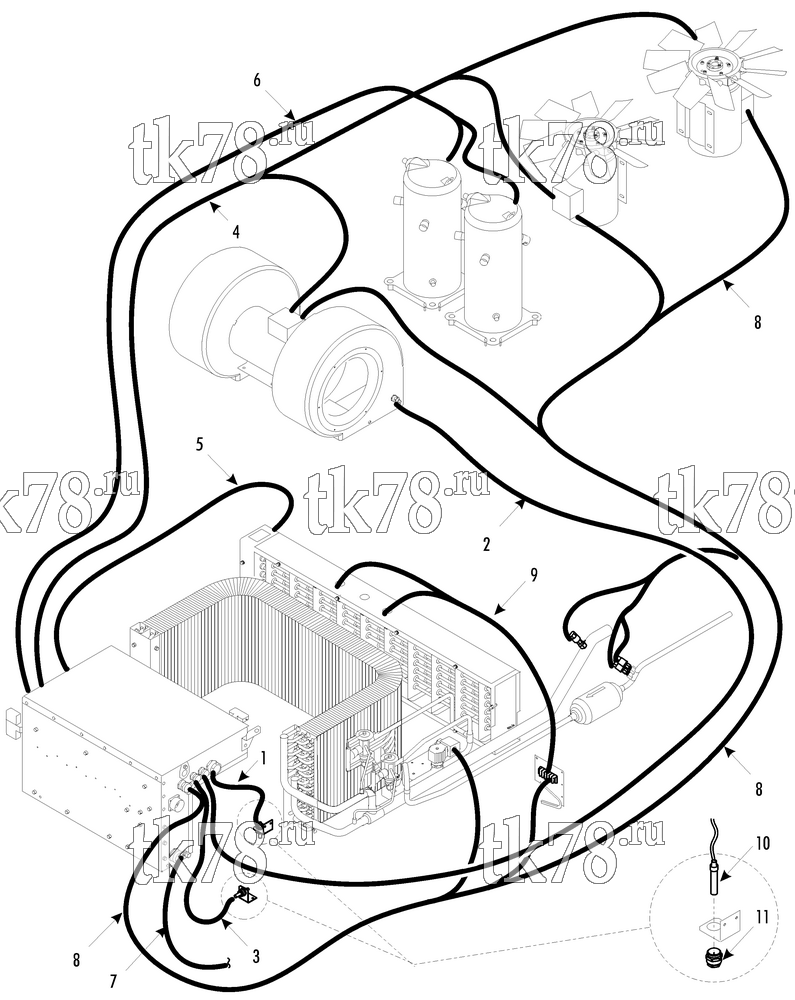

Установкa Thermo King схема ELECTRICAL COMPONENTS – 179B0
Обновление от: 10/6/11
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 41-5134 | CABLE - temperature sensor (return air) | 1 | |
| 2 | 41-5135 | CABLE - temperature sensor (duct air) | 1 | |
| 3 | 41-5136 | CABLE - temperature sensor (fresh air) | 1 | |
| 4 | 41-5137 | HARNESS - power outlet (fans & blower) | 1 | |
| 5 | 41-5126 | HARNESS - power outlet (heater) | 1 | |
| 6 | 41-5138 | HARNESS - power outlet (compressors) | 1 | |
| 7 | 41-5139 | CABLE - grounding outlet | 1 | |
| 8 | 41-5127 | HARNESS - low voltage signal | 1 | |
| 9 | 41-5128 | HARNESS - heater connection | 1 | |
| 10 | 41-7513 | SENSOR - temperature | 2 | |
| 11 | 55-9992 | BUSHING - sensor | 2 | |
| 55-9998 | LOCKNUT | 2 |
