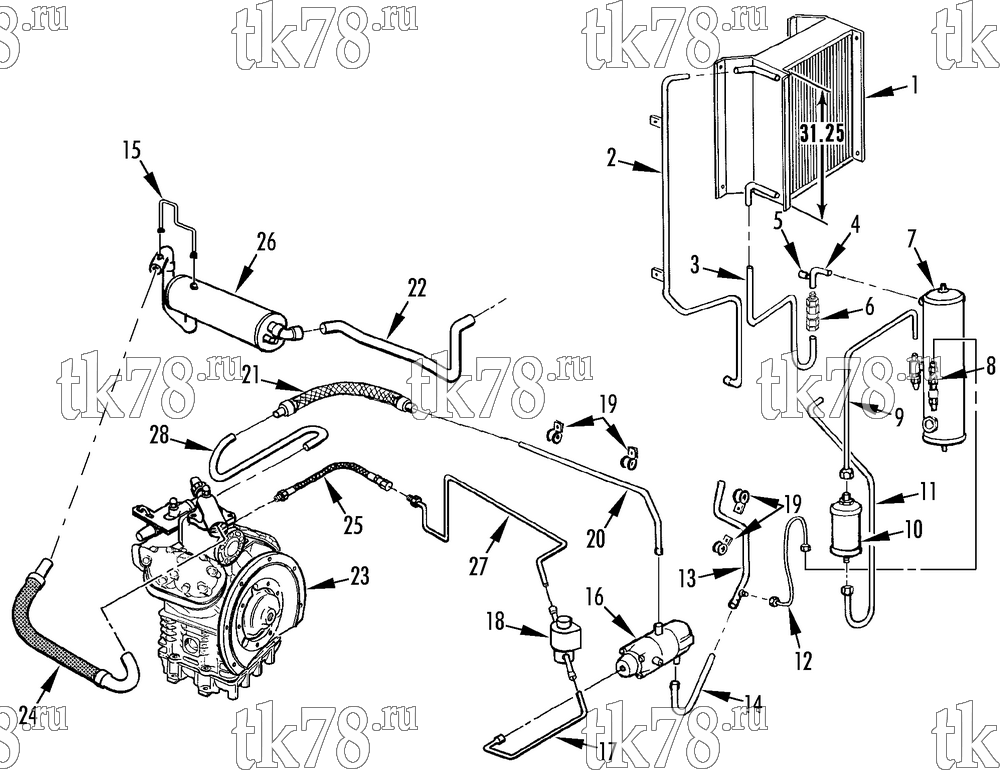

Установкa Thermo King схема REFRIGERATION COMPONENTS - CONDENSER – 178D9
Обновление от: 5/3/09
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 67-912 | COIL - condenser (33.25 in tall, see 70A9) | 1 | |
| 67-728 | COIL - condenser (31.25 in tall, see 70A9) | 1 | ||
| 2 | 66-4565 | TUBE - 3-way to coil | 1 | |
| 55-145 | SCREW - tube | 1 | ||
| 55-411 | FLATWASHER | 1 | ||
| 55-4118 | NUT | 1 | ||
| 3 | 66-4227 | TUBE - coil to receiver tank | 1 | |
| 99-8118 | BRACKET - tube | 1 | ||
| 55-3065 | CLAMP - tube | 1 | ||
| 55-145 | SCREW - bracket | 1 | ||
| 55-411 | FLATWASHER | 1 | ||
| 55-4118 | NUT | 1 | ||
| 4 | 66-4222 | TUBE - valve to receiver tank | 1 | |
| 5 | 99-3060 | FITTING - saddle (valve) | 1 | |
| 66-7392 | VALVE - relief (high pressure) | 1 | ||
|
10-66-7392 | Предохранительный клапан | 3 480 ₽ |
|
| PP-66-7392 | Предохранительный клапан | 1 730 ₽ |
|
|
| 33-1015 | O-RING | 1 | ||
| 33-1015 OEM | О-ринг фильтра-осушителя, 3/8" | 240 ₽ |
|
|
| 6 | 66-6565 | VALVE - check | 1 | |
| 7 | 67-1179 | TANK - receiver | 1 | |
| 66-4223 | TUBE - valve | 1 | ||
| 8 | 66-5501 | VALVE - check | 1 | |
| 9 | 66-5014 | TUBE - receiver to dehydrator | 1 | |
| 10 | 61-600 | DEHYDRATOR (see 160A4) | 1 | |
|
US-61-600 | Дегидратор, SL/SLe/SLX/SLXe/SMX/SMX-II/SB / UT-800/1200 | 6 880 ₽ |
|
| 10-61-600 | Дегидратор, SL/SLe/SLX/SLXe/SMX/SMX-II/SB / UT-800/1200 | 3 420 ₽ |
|
|
|
PP-61-600 | Дегидратор, SL/SLe/SLX/SLXe/SMX/SMX-II/SB / UT-800/1200 | 2 090 ₽ |
|
| 11 | 66-4234 | TUBE - dehydrator to heat exchanger (before 6/88) | 1 | |
| 66-4835 | TUBE - dehydrator to heat exchanger (6/88 & after) | 1 | ||
| 12 | 66-4833 | TUBE - valve to receiver | 1 | |
| 13 | 66-4832 | TUBE - 3-way valve to defrost | 1 | |
| 66-784 | FITTING - flare | 1 | ||
| 14 | 66-4230 | TUBE - 3-way valve to defrost | 1 | |
| 15 | 66-5077 | HOSE - accumulator tank bleed (see 115A8) | 1 | |
| 16 | 66-8804 | VALVE - 3-way (see 86A3) | 1 | |
| 55-214 | SCREW - valve | 2 | ||
| 55-366 | LOCKWASHER | 2 | ||
| 17 | 66-6023 | TUBE - 3-way valve to solenoid (solder fitting on 3-way valve) | 1 | |
| 18 | 66-7636 | VALVE - pilot solenoid | 1 | |
|
10-66-7636 | Пилот соленоид с катушкой 12V, SB/SL/SLe/SLX/SLXe/SMX-II/V-Series | 33 380 ₽ |
|
|
PP-61-8938 | Пилот соленоид с катушкой 12V, SB/SL/SLe/SLX/SLXe/SMX-II/V-Series | 13 390 ₽ |
|
| 41-1521 | COIL - valve | 1 | ||
|
10-41-1521 | Катушка соленоида, 12V 8W | 5 130 ₽ |
|
| 55-8786 | NUT - valve | 1 | ||
| 99-8262 | SPACER - solenoid valve | 1 | ||
| 55-1384 | SCREW - valve | 2 | ||
| 55-414 | LOCKWASHER | 2 | ||
| 19 | 55-546 | CLAMP (1/4) | 2 | |
| 55-2240 | CLAMP (5/16) | 1 | ||
| 55-3065 | CLAMP (1/2) | 2 | ||
| 55-3741 | CLAMP (3/4) | 2 | ||
| 55-3359 | CLAMP (7/8) | 1 | ||
| 20 | 66-4384 | TUBE - 3-way valve to vibrasorber | 1 | |
| 21 | 66-1224 | VIBRASORBER - discharge | 1 | |
|
10-66-1224 | Вибросорбер нагнетания, SB-I/II | 11 620 ₽ |
|
| 22 | 66-7326 | TUBE - exchanger to accumulator | 1 | |
| 23 | NSS | COMPRESSOR - X430 (see 72A11 & 76F8) | 1 | |
| 24 | 66-6024 | VIBRASORBER - suction | 1 | |
|
10-66-6024 | Вибросорбер всасывания, SB-XXX/SB-I/II/III | 25 560 ₽ |
|
| PP-66-6024 | Вибросорбер всасывания, SB-XXX/SB-I/II/III | 12 400 ₽ |
|
|
| 25 | 66-7472 | HOSE - throttling valve | 1 | |
| 66-7472 OEM | Шланг компрессора, SB-II/III / SMX | 14 470 ₽ |
|
|
| 26 | 67-1195 | TANK - accumulator | 1 | |
| 27 | 66-7657 | TUBE - solenoid pilot to compressor | 1 | |
| 28 | 66-4987 | TUBE - discharge valve to vibrasorber | 1 |
