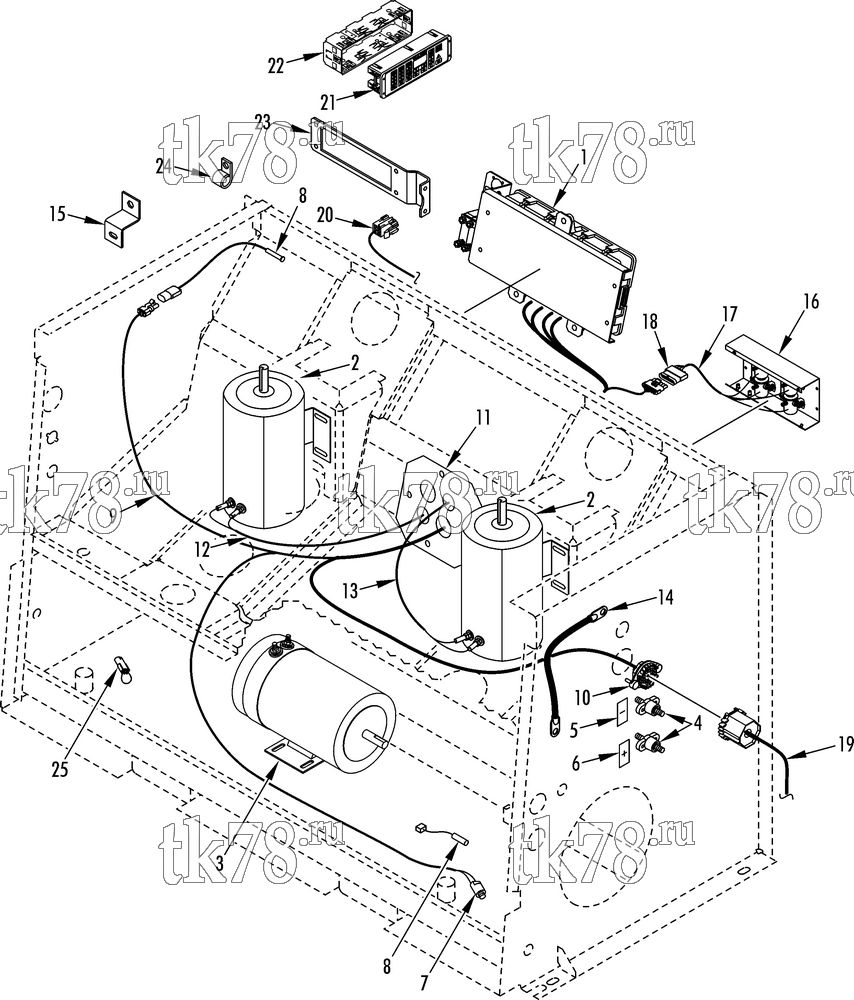

Установкa Thermo King схема ELECTRICAL COMPONENTS – 177H7
Обновление от: 8/12/09
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | NSS | BREAKER - circuit assembly (see 172A2) | 1 | |
| 2 | 104-652 | MOTOR - condenser (see 173G2) | 2 | |
| 3 | 104-651 | MOTOR - evaporator (see 173G3 & 200C2) | 1 | |
| 4 | 55-9550 | STUD - terminal (red, positive) | 1 | |
| 55-9551 | STUD - terminal (black, negative) | 1 | ||
| 55-9700 | SCREW - stud (#10) | 4 | ||
| 55-2001 | FLATWASHER (#10) | 4 | ||
| 55-4560 | NUT (#10) | 4 | ||
| 55-671 | NUT (3/8) | 4 | ||
| 55-448 | FLATWASHER (3/8) | 4 | ||
| 55-3066 | LOCKWASHER (3/8) | 4 | ||
| 5 | 99-4661 | NAMEPLATE - Negative | 1 | |
| 6 | 99-4660 | NAMEPLATE - Positive | 1 | |
| 7 | 44-6965 | SWITCH - condenser fan (R134a, for connectors see 115D14) | 1 | |
| 41-307 | SWITCH - only (R134a) | 1 | ||
| 44-6349 | SWITCH - condenser fan (R22 & R407c, for connectors see 115D14) | 1 | ||
| 44-6427 | SWITCH - only (R22 & R407c) | 1 | ||
| 8 | 41-7706 | SENSOR - temperature | 2 | |
| 9 | NSS | HARNESS - main (IntelligAIRE, see main harness grid) | 1 | |
| 10 | 44-7829 | CONNECTOR - tower (22-pin) | 1 | |
| 44-7811 | LOCK - secondary | 1 | ||
| 11 | 92-1290 | COVER - harness, blockoff | 1 | |
| 203-412 | SEALER - polyurethane | 1 | ||
| 55-1587 | SCREW - cover | 4 | ||
| 55-1800 | LOCKWASHER | 4 | ||
| 55-2086 | FLATWASHER | 4 | ||
| 55-4953 | NUT | 4 | ||
| 12 | 41-4901 | HARNESS - condenser motor (1) | 1 | |
| 55-9135 | CONNECTOR | 1 | ||
| 41-4189 | GASKET - seal | 1 | ||
| 55-2636 | LOCKNUT | 1 | ||
| 13 | 41-4966 | HARNESS - condenser motor (2) | 1 | |
| 55-9135 | CONNECTOR | 1 | ||
| 41-4189 | GASKET - seal | 1 | ||
| 55-2636 | LOCKNUT | 1 | ||
| 14 | 41-4913 | HARNESS - battery cable (red) | 1 | |
| 41-4817 | CONNECTOR - liquid tite | 1 | ||
| 55-2635 | LOCKNUT | 1 | ||
| 41-4761 | HARNESS - battery cable (black) | 1 | ||
| 41-4914 | HARNESS (34A) | 1 | ||
| 41-4910 | HARNESS (35) | 1 | ||
| 41-8185 | HARNESS (J) | 1 | ||
| 41-5437 | HARNESS - single wire (5 in lg) | 1 | ||
| 55-3834 | SCREW - harness | 1 | ||
| 55-2958 | FLATWASHER | 1 | ||
| 55-4954 | NUT | 1 | ||
| 41-4817 | CONNECTOR - liquid tite | 1 | ||
| 41-5359 | CONNECTOR - liquid tite | 1 | ||
| 55-2635 | LOCKNUT | 1 | ||
| 41-6729 | HARNESS - single wire (CH, 30 inch) | 1 | ||
| 41-6730 | HARNESS - single wire (CH, 38 in) | 1 | ||
| 41-6731 | HARNESS - single wire (34A, 90 in) | 1 | ||
| 41-6732 | HARNESS - single wire (CH, 28 in) | 1 | ||
| 15 | 92-2930 | BRACKET - support | 1 | |
| 55-1587 | SCREW - bracket | 1 | ||
| 55-1800 | LOCKWASHER | 1 | ||
| 55-2086 | FLATWASHER | 1 | ||
| 55-8711 | INSERT | 1 | ||
| 16 | 91-8062 | PANEL - solenoid (see 146C14) | 1 | |
| 17 | 41-4900 | HARNESS - brush, motors | 1 | |
| 18 | 44-8294 | CONNECTOR - shroud (6-pin) | 1 | |
| 19 | 41-4909 | HARNESS - interface (for connector see 115D14) | 1 | |
| 20 | 41-4195 | HARNESS - unit display | 1 | |
| 41-4284 | CONNECTOR (6 terminal) | 1 | ||
| 41-4285 | LOCK - terminal | 2 | ||
| 41-4283 | CONNECTOR | 1 | ||
| 41-4899 | WEDGE | 1 | ||
| 21 | 41-7200 | MODULE - display | 1 | |
| 22 | 92-5199 | BRACKET - din panel | 1 | |
| 23 | 92-2312 | BRACKET - display | 1 | |
| 55-2977 | SCREW - bracket | 4 | ||
| 24 | 51-151 | CLAMP (0.562 dia) | 2 | |
| 55-2239 | CLAMP (0.375 dia) | 1 | ||
| 55-9311 | CLAMP (1.0 dia) | 6 | ||
| 55-1587 | SCREW - clamp | 7 | ||
| 55-1800 | LOCKWASHER | 7 | ||
| 55-2086 | FLATWASHER | 7 | ||
| 25 | 44-8197 | CONNECTOR - jumper (water pressure switch) | 1 |
