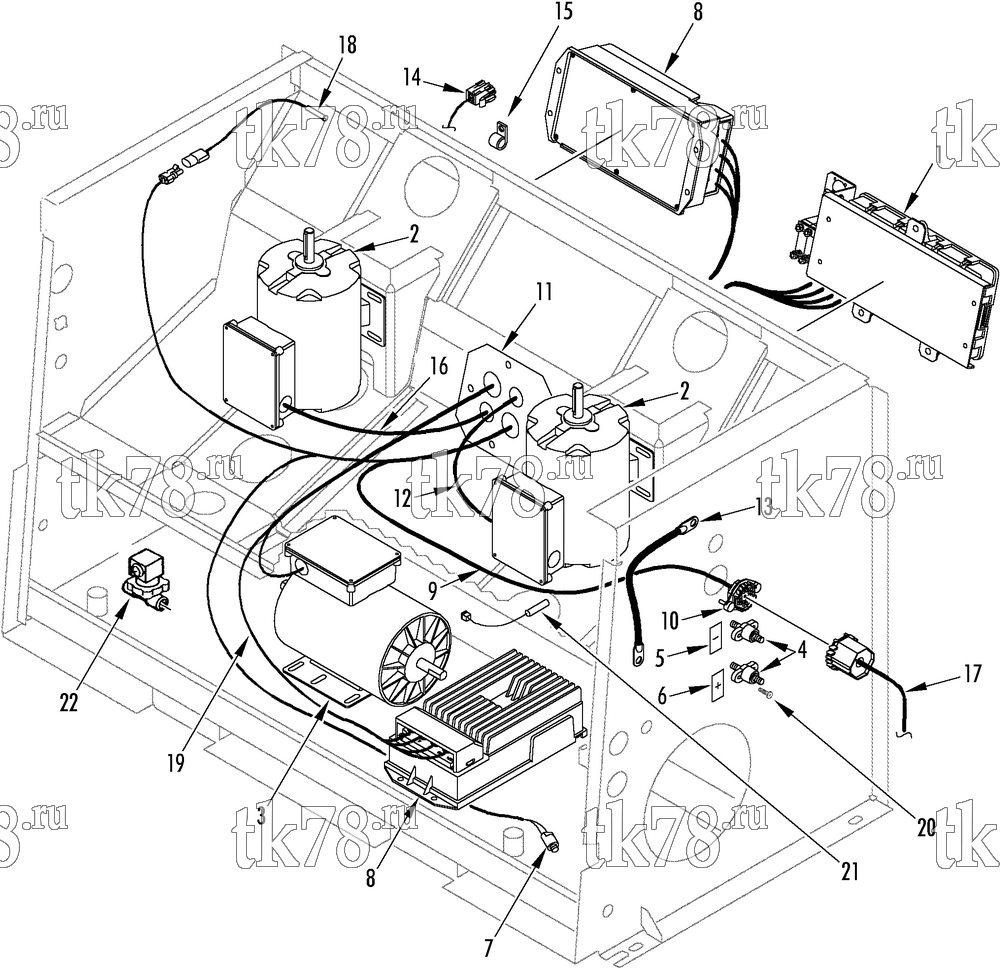

Установкa Thermo King схема ELECTRICAL COMPONENTS – 177G5
Обновление от: 6/23/13
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | ASQ | BREAKER - circuit assembly (see 172A2 & 162D2) | 1 | |
| 2 | 104-740 | MOTOR - condenser fan | 2 | |
| 3 | 104-741 | MOTOR - evaporator blower (see 153G9) | 1 | |
| 4 | 55-9550 | STUD - terminal (red) | 1 | |
| 55-9551 | STUD - terminal (black) | 1 | ||
| 55-671 | NUT | 4 | ||
| 55-448 | FLATWASHER | 4 | ||
| 55-3066 | LOCKWASHER | 4 | ||
| 55-3672 | LOCKWASHER | 1 | ||
| 5 | 99-4661 | NAMEPLATE - Negative | 1 | |
| 6 | 99-4660 | NAMEPLATE - Positive | 1 | |
| 7 | 44-6349 | SWITCH - condenser fan (for connectors see 115D14) | 1 | |
| 8 | 41-3590 | CONTROLLER - motor | 2 | |
| 55-2997 | SCREW - controller | 8 | ||
| 55-2086 | FLATWASHER | 8 | ||
| 55-1800 | LOCKWASHER | 8 | ||
| 9 | 41-4774 | HARNESS - main (IntelligAIRE) | 1 | |
| 44-8858 | CONNECTOR (18-pin, black) | 1 | ||
| 44-8857 | CONNECTOR (30-pin, black) | 1 | ||
| 41-4135 | CONNECTOR (18-pin, white) | 1 | ||
| 41-4136 | CONNECTOR (30-pin, white) | 1 | ||
| 10 | 44-7829 | CONNECTOR - tower (22-pin) | 1 | |
| 44-7811 | LOCK - secondary | 1 | ||
| 11 | 92-1290 | COVER - harness, blockoff | 1 | |
| 203-412 | SEALER - polyurethane | 1 | ||
| 41-4188 | CONNECTOR - liquid tite | 1 | ||
| 41-3123 | KIT - heat shrink | 1 | ||
| 41-4189 | CONNECTOR - liquid tite | 1 | ||
| 55-2636 | LOCKNUT | 1 | ||
| 55-1587 | SCREW - cover | 4 | ||
| 55-1800 | LOCKWASHER | 4 | ||
| 55-2086 | FLATWASHER | 4 | ||
| 55-4953 | NUT | 2 | ||
| 55-9034 | CONNECTOR | 1 | ||
| 55-2636 | LOCKNUT | 1 | ||
| 44-8197 | CONNECTOR - jumper (water pressure switch) | 1 | ||
| 12 | 41-4191 | HARNESS - condenser motor (MRT 1) | 1 | |
| 55-9034 | CONNECTOR | 1 | ||
| 55-2636 | LOCKNUT | 1 | ||
| 13 | 41-4192 | HARNESS (2) | 1 | |
| 41-4193 | HARNESS (34) | 1 | ||
| 41-4194 | HARNESS (35) | 1 | ||
| 14 | 41-4195 | HARNESS - unit display | 1 | |
| 15 | 51-151 | CLAMP (0.562 dia) | 5 | |
| 51-178 | CLAMP (0.625 dia) | 1 | ||
| 55-9721 | CLAMP (0.875 dia) | 1 | ||
| 55-9311 | CLAMP (1.000 dia) | 1 | ||
| 55-179 | CLAMP (1.437 dia) | 2 | ||
| 16 | 41-4190 | HARNESS - condenser motor (MRT 2) | 1 | |
| 55-9034 | CONNECTOR | 1 | ||
| 55-2636 | LOCKNUT | 1 | ||
| 17 | 41-4909 | HARNESS - interface | 1 | |
| 18 | 40-975 | KIT - temperature sensor | 2 | |
|
40-975 OEM | Датчик температуры к-т, некалиброванный | 10 310 ₽ |
|
|
10-40-975 | Датчик температуры к-т, некалиброванный | 4 660 ₽ |
|
| NSS | SENSOR - ungraded (18 in) | 1 | ||
| 41-5210 | COLLAR - crimp | 2 | ||
| 92-846 | HEATSHRINK (1/2 in) | 2 | ||
| 19 | 41-4908 | HARNESS - evaporator motor | 1 | |
| 20 | 55-9700 | SCREW - stud | 4 | |
| 55-2001 | FLATWASHER | 4 | ||
| 21 | 41-7706 | SENSOR - temperature | 1 | |
| 22 | 41-7599 | VALVE - solenoid (water, 24V, see 147A1) | 1 |
