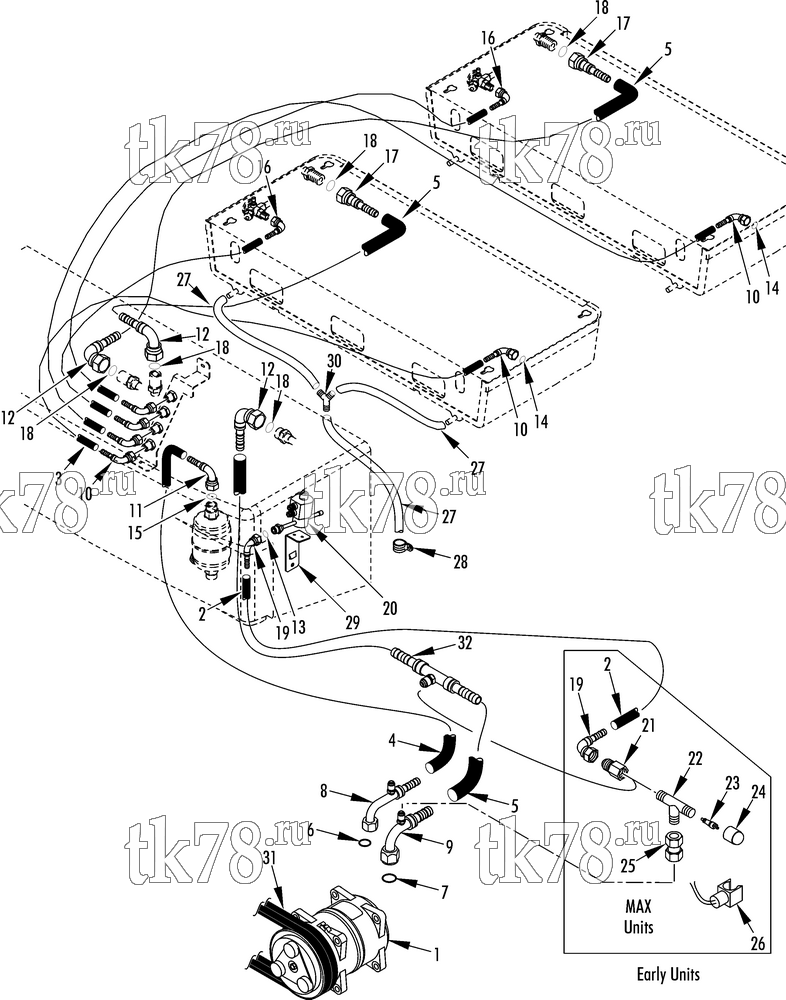

Установкa Thermo King схема HOSE GROUP – 177E9
Обновление от: 8/31/13
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 102-842 | COMPRESSOR - TM16-XD (12V, 5.3 in, see 133F14) | 1 | |
|
10-TM-16 | Компрессор, TM-16, 12V 2A, R134A/R404A | 22 740 ₽ |
|
| 102-843 | COMPRESSOR - TM16-XD (24V, see 133F14) | 1 | ||
|
10-TM-16-24 | Компрессор, TM-16, 24V 2A, R134A/R404A | 22 740 ₽ |
|
| 203-515 | OIL - compressor (1 liter) | A/R | ||
| 2 | 67-1782 | HOSE - refrigeration (#4, see 165D6) | A/R | |
| 3 | 67-1708 | HOSE - refrigeration (#6) | A/R | |
| 4 | 67-1709 | HOSE - refrigeration (#8) | A/R | |
| 5 | 67-1711 | HOSE - refrigeration (#12) | A/R | |
| 6 | 33-2350 | O-RING (7/16 id) | 1 | |
| 7 | 33-672 | O-RING (9/16 id) | 1 | |
|
10-33-672 | Прокладка компрессора Regulator | 410 ₽ |
|
| 33-672 OEM | Прокладка компрессора Regulator | 80 ₽ |
|
|
| 8 | 51-2432 | FITTING - discharge (tube-O, see 165D6) | 1 | |
| 9 | 51-2462 | FITTING - suction (tube-O, see 165D6) | 1 | |
| 10 | 51-2436 | FITTING - liquid & defrost (90 deg, #6) | 4 | |
| 11 | 51-2423 | FITTING - discharge (90 deg, #8) | 1 | |
| 12 | 51-2488 | FITTING - suction (90 deg, #12 hose, #10 fitting) | 3 | |
| 13 | 33-1461 | O-RING (5/16, #4) | 1 | |
| 14 | 33-1015 | O-RING (3/8 id, #6) | 6 | |
| 33-1015 OEM | О-ринг фильтра-осушителя, 3/8" | 240 ₽ |
|
|
| 15 | 33-566 | O-RING (1/2 id, #8) | 1 | |
| 16 | 51-2492 | FITTING - expansion valve | 2 | |
| 17 | 51-2503 | FITTING - suction (straight, #12) | 2 | |
| 18 | 33-2115 | O-RING (5/8 id, #12) | 3 | |
| 19 | 51-2417 | FITTING - jet cool (90 deg, #4) | 1 | |
| 20 | 66-5908 | VALVE - jet cool (12V) | 1 | |
|
10-66-5908 | Соленоид, KD-II/MD-II/RD-II/SB-III/V-Series | 28 750 ₽ |
|
| 41-1525 | COIL (12V) | 1 | ||
|
10-41-1525 | Катушка соленоида, 12V 8W | 15 030 ₽ |
|
| 66-7071 | VALVE - jet cool (24V) | 1 | ||
| 44-6158 | COIL (24V) | 1 | ||
| 55-1384 | SCREW - valve | 2 | ||
| 55-7861 | LOCKWASHER | 2 | ||
| 55-7697 | FLATWASHER | 2 | ||
| 21 | 66-5029 | ORIFICE | 1 | |
| 66-5028 | FILTER | 1 | ||
| 22 | 55-9115 | TEE (early units, see item 32) | 1 | |
| 23 | 11-7777 | VALVE (Schrader) | 1 | |
| 24 | 61-468 | CAP - valve | 1 | |
| 25 | 55-9116 | ADAPTER - double nut (early units, see item 32) | 1 | |
| 26 | 44-9020 | THERMOSTAT | 1 | |
| 27 | 11-9223 | HOSE - drain | A/R | |
| 28 | 91-6692 | CLAMP (45 mm) | 5 | |
| 92-1690 | CLAMP (50 mm) | 2 | ||
| 92-1903 | CLAMP (22 mm) | 5 | ||
| 55-8434 | SCREW - clamp | 12 | ||
| 51-346 | SCREW - clamp | 12 | ||
| 29 | 92-1906 | BRACKET - solenoid | 1 | |
| 30 | 55-9258 | CONNECTOR (Y) | 2 | |
| 31 | N/A | BELT - compressor (not supplied by Thermo King) | 1 | |
| 32 | 51-2418 | SPLICE (#12 hose w/ 7/16-20 charging port) | 1 |
