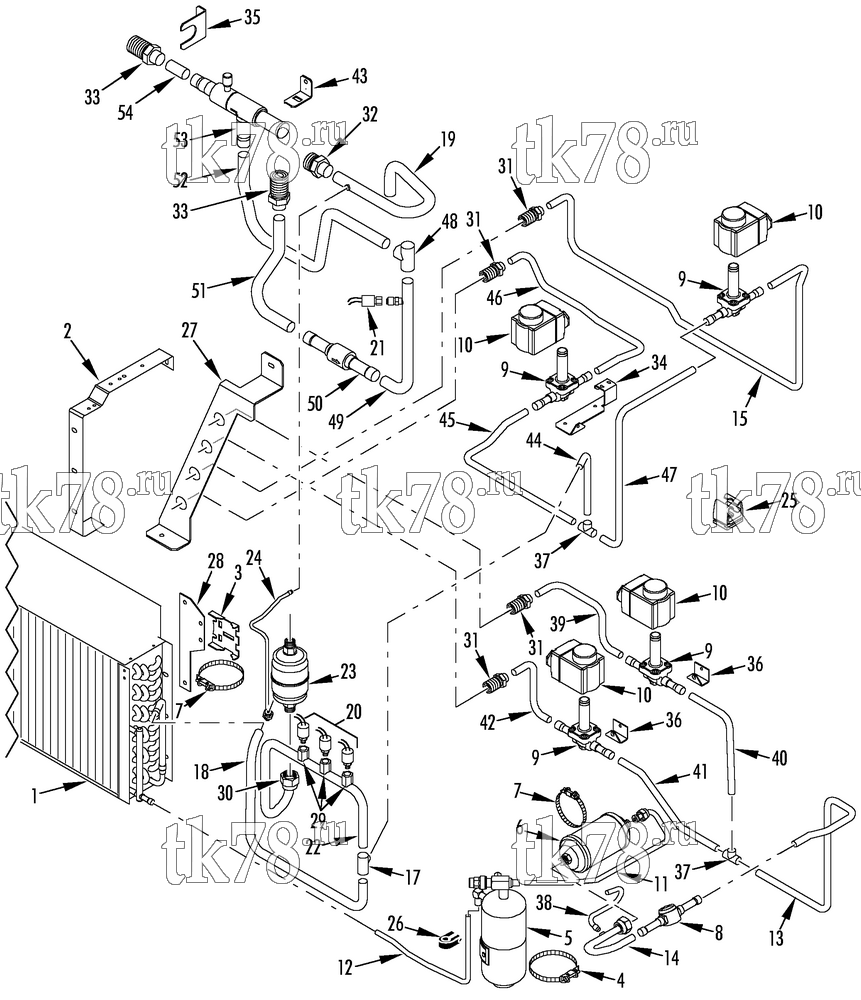

Установкa Thermo King схема REFRIGERATION GROUP (V-500 MAX TC 10) – 177E6
Обновление от: 4/14/12
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 67-2382 | COIL - condenser | 1 | |
| 55-8375 | NUT - captive | 8 | ||
| 91-9989 | TAPE - sealant | A/R | ||
| 55-7340 | SCREW - coil | 6 | ||
| 55-7404 | LOCKWASHER | 6 | ||
| 55-9826 | FLATWASHER | 9 | ||
| 2 | 92-1896 | BRACKET - condenser coil | 1 | |
| 55-7172 | SCREW - bracket | 5 | ||
| 55-7075 | FLATWASHER | 5 | ||
| 55-6996 | LOCKWASHER | 5 | ||
| 55-7354 | NUT | 5 | ||
| 3 | 92-1904 | SUPPORT - oil separator | 1 | |
| 55-6994 | SCREW - support | 2 | ||
| 55-7075 | FLATWASHER | 2 | ||
| 55-6996 | LOCKWASHER | 2 | ||
| 55-8893 | WASHER - fender | 2 | ||
| 55-7354 | NUT | 4 | ||
| 4 | 55-6225 | CLAMP - receiver tank | 1 | |
| 5 | 67-1798 | TANK - receiver | 1 | |
| 55-9485 | FLATWASHER | 1 | ||
| 6 | 66-8471 | DEHYDRATOR | 1 | |
|
14-00326-03 OEM | Дегидратор, Supra/Xarios | 5 870 ₽ |
|
|
P-14-00326-03 | Дегидратор, Supra/Xarios | 2 820 ₽ |
|
|
PP-14-00326-03 | Дегидратор, Supra/Xarios | 1 300 ₽ |
|
| 7 | 55-6225 | CLAMP - dehydrator | 2 | |
| 8 | 61-4565 | INDICATOR - liquid | 1 | |
| 9 | 66-7878 | BODY - solenoid | 4 | |
| 10 | 41-5051 | COIL - valve (24V) | 4 | |
| 41-5047 | COIL - solenoid (12V) | 4 | ||
| 55-7340 | SCREW - solenoid | 4 | ||
| 11 | 61-1406 | TUBE - receiver tank to dehydrator | 1 | |
| 55-9009 | NUT - o-ring | 1 | ||
| 55-9286 | SHOULDER - o-ring | 1 | ||
| 12 | 61-1405 | TUBE - condenser coil to receiver | 1 | |
| 13 | 61-1733 | TUBE - sight glass to evaporator | 1 | |
| 14 | 61-1734 | TUBE - dehydrator to sight glass | 1 | |
| 55-9009 | NUT - o-ring | 1 | ||
| 55-9286 | SHOULDER - o-ring | 1 | ||
| 15 | 61-1408 | TUBE - solenoid to evaporator | 1 | |
| 16 | 61-1409 | TUBE - tee to solenoid | 1 | |
| 17 | 55-2181 | TEE | 1 | |
| 18 | 61-1411 | TUBE - tee to condenser | 1 | |
| 19 | 61-3049 | TUBE - evaporator to compressor | 1 | |
| 55-9506 | ADAPTER - lpco switch | 1 | ||
| 20 | 44-8064 | SWITCH - hpco | 1 | |
|
44-8064 OEM | Датчик HP, V-Series | 9 100 ₽ |
|
|
10-44-8064 | Датчик HP, V-Series | 4 630 ₽ |
|
| 44-6225 | SWITCH - condenser fan | 1 | ||
| 44-5834 | SWITCH - condenser fan speed (MAX) | 1 | ||
| 44-7992 | SWITCH - condenser fan speed (non-MAX units) | 1 | ||
| 21 | 44-8030 | SWITCH - lpco | 1 | |
|
44-8030 OEM | Выключатель аварийный низкого давления | 16 560 ₽ |
|
| 22 | 61-1746 | TUBE - discharge (separator to tee) | 1 | |
| 23 | 66-8548 | SEPARATOR - oil | 1 | |
|
66-8548 OEM | Масляный сепаратор, V/VM-Series | 18 750 ₽ |
|
|
10-66-8548 | Масляный сепаратор, V/VM-Series | 4 370 ₽ |
|
| 24 | 61-1732 | TUBE - oil separator to suction tube | 1 | |
| 25 | 92-1894 | SADDLE - tube | 6 | |
| 55-9898 | RIVET - saddle | 6 | ||
| 26 | 92-1502 | CLAMP - tube (10 mm) | 1 | |
| 92-1501 | CLAMP - tube (12 mm) | 1 | ||
| 55-7036 | SCREW - clamp | 1 | ||
| 55-9826 | FLATWASHER | 2 | ||
| 55-7404 | LOCKWASHER | 1 | ||
| 55-7367 | NUT | 1 | ||
| 27 | 92-1938 | BRACKET - fitting | 1 | |
| 28 | 92-2350 | SUPPORT - oil separator | 1 | |
| 55-6994 | SCREW - support | 2 | ||
| 55-8893 | WASHER - fender | 2 | ||
| 55-7075 | FLATWASHER | 2 | ||
| 55-7354 | NUT | 2 | ||
| 29 | 61-439 | ADAPTER - switch | 3 | |
| 30 | 61-469 | NUT - o-ring seal | 1 | |
| 61-470 | SHOULDER - o-ring seal | 1 | ||
| 31 | 61-434 | ADAPTER - defrost & liquid | 3 | |
| 55-9836 | NUT - adapter (#6) | 3 | ||
| 32 | 61-402 | ADAPTER - evaporator | 1 | |
| 55-9929 | NUT - adapter (#10) | 3 | ||
| 33 | 61-432 | ADAPTER - compressor | 2 | |
| 34 | 92-2346 | BRACKET - valve | 1 | |
| 35 | 92-2347 | BRACKET - suction tube | 1 | |
| 36 | 92-2349 | BRACKET - valve | 1 | |
| 55-7340 | SCREW - bracket | 2 | ||
| 55-9826 | FLATWASHER | 2 | ||
| 55-7404 | LOCKWASHER | 2 | ||
| 55-7367 | NUT | 2 | ||
| 37 | 55-3251 | TEE (3/8) | 1 | |
| 38 | 61-1735 | TUBE - liquid injection | 1 | |
| 39 | 61-1736 | TUBE - valve to evaporator | 1 | |
| 40 | 61-1737 | TUBE - tee to solenoid | 1 | |
| 41 | 61-1738 | TUBE - tee to valve | 1 | |
| 42 | 61-1739 | TUBE - valve to evaporator | 1 | |
| 43 | 92-2348 | BRACKET - valve | 1 | |
| 44 | 61-1741 | TUBE - tee to tee | 1 | |
| 45 | 61-1742 | TUBE - tee to solenoid | 1 | |
| 46 | 61-1743 | TUBE - solenoid to adapter | 1 | |
| 47 | 61-1740 | TUBE - tee to solenoid | 1 | |
| 48 | 55-904 | TEE | 1 | |
| 49 | 61-1749 | TUBE - check valve to tee | 1 | |
| 50 | 61-413 | VALVE - check | 1 | |
| 51 | 61-1750 | TUBE - evap to check valve | 1 | |
| 52 | 61-1752 | TUBE - tee to epr valve | 1 | |
| 53 | 41-2069 | REGULATOR - evap pressure | 1 | |
| 54 | 66-7332 | TUBE - fitting to valve | 1 |
