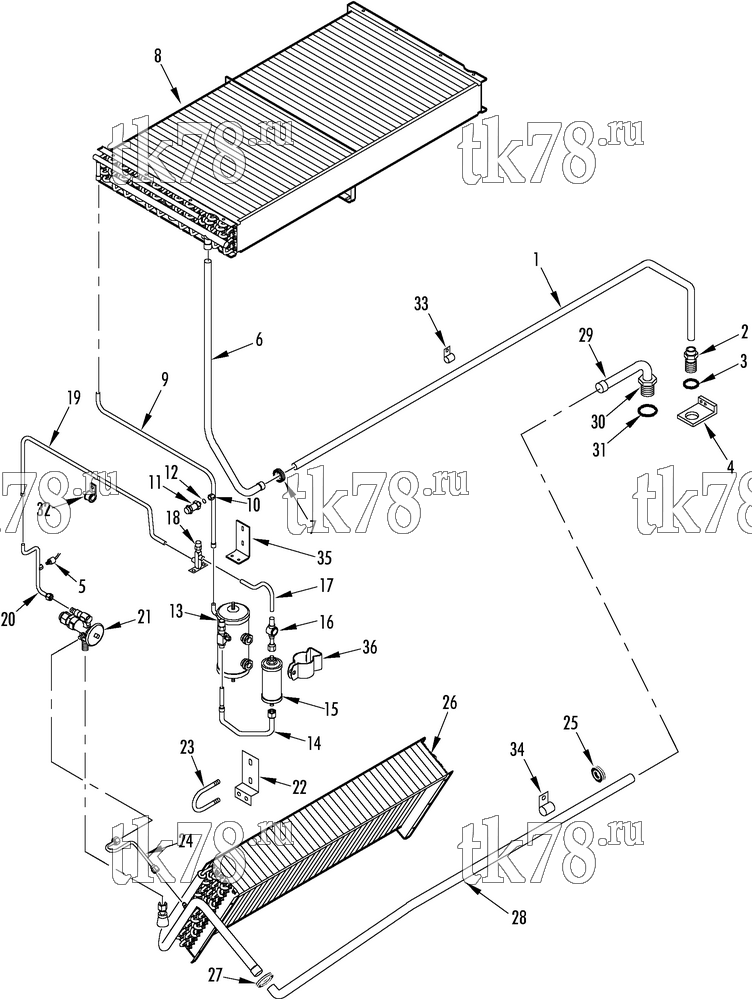

Установкa Thermo King схема REFRIGERATION COMPONENTS – 177C3
Обновление от: 7/16/11
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 61-1836 | TUBE - discharge | 1 | |
| 66-4553 | FITTING - saddle | 1 | ||
| 2 | 66-5247 | ADAPTER - bulkhead (#16) | 1 | |
| 3 | 33-1785 | O-RING | 1 | |
| 55-9231 | NUT - bulkhead | 1 | ||
| 55-5742 | WASHER | 1 | ||
| 4 | 91-8651 | BRACKET | 1 | |
| 55-2957 | SCREW - bracket | 4 | ||
| 55-1800 | LOCKWASHER | 4 | ||
| 5 | 41-2264 | SWITCH - hpco | 1 | |
| 6 | 66-3719 | TUBE - coil inlet | 1 | |
| 7 | 33-316 | GROMMET (1 id) | 3 | |
| 33-287 | GROMMET (5/8 id) | 5 | ||
| 8 | 67-1499 | COIL - condenser | 1 | |
| 55-1587 | SCREW - coil | 8 | ||
| 55-3059 | NUT | 8 | ||
| 9 | 66-3712 | TUBE - condenser to receiver | 1 | |
| 10 | 55-3295 | FITTING | 1 | |
| 11 | 66-7392 | VALVE - relief | 1 | |
|
10-66-7392 | Предохранительный клапан | 3 480 ₽ |
|
| PP-66-7392 | Предохранительный клапан | 1 730 ₽ |
|
|
| 12 | 33-1015 | O-RING | 1 | |
| 33-1015 OEM | О-ринг фильтра-осушителя, 3/8" | 240 ₽ |
|
|
| 13 | 67-2325 | TANK - receiver (see 128B13) | 1 | |
| 14 | 61-1835 | TUBE - receiver to dehydrator | 1 | |
| 33-1809 | GROMMET (1/2 id) | 1 | ||
| 15 | 66-1723 | DEHYDRATOR | 1 | |
| 55-1110 | GASKET - flare nut | 2 | ||
| 16 | 66-3289 | INDICATOR - liquid | 1 | |
| 17 | 61-1834 | TUBE - valve | 1 | |
| 55-3627 | COUPLING - reducing | 1 | ||
| 18 | 66-4694 | VALVE - shutoff | 1 | |
| 66-2170 | CAP - valve | 1 | ||
| 66-8585 | TUBE - coupling to valve | 1 | ||
| 55-3843 | SCREW - valve | 2 | ||
| 55-2001 | FLATWASHER | 4 | ||
| 55-4560 | NUT | 2 | ||
| 19 | 66-8759 | TUBE - liquid | 1 | |
| 20 | 66-9858 | TUBE - expansion valve to dehydrator | 1 | |
| 21 | 66-7393 | VALVE - expansion | 1 | |
| 66-3592 | SCREEN - inlet | 1 | ||
| 66-4213 | ELEMENT - power | 1 | ||
| 22 | 98-6877 | BRACKET - expansion valve | 1 | |
| 55-2991 | SCREW - bracket | 2 | ||
| 55-2001 | FLATWASHER | 4 | ||
| 55-4560 | NUT | 2 | ||
| 23 | 55-5211 | U-BOLT | 1 | |
| 55-4560 | NUT | 2 | ||
| 24 | 66-3715 | TUBE - equalizer | 1 | |
| 25 | 33-489 | GROMMET (1.25 id) | 3 | |
| 26 | 67-1475 | COIL - evaporator (see 173A0) | 1 | |
| 27 | 33-489 | GROMMET (1-1/4 id) | 1 | |
| 28 | 66-3722 | TUBE - crossover | 1 | |
| 29 | 61-1837 | TUBE - suction | 1 | |
| 30 | 55-7537 | ADAPTER | 1 | |
| 31 | 33-1777 | O-RING - suction | 1 | |
| 55-7111 | NUT - bulkhead | 1 | ||
| 55-5741 | WASHER | 1 | ||
| 32 | 55-9309 | CLAMP - tube (0.500 dia) | 2 | |
| 33 | 55-6147 | CLAMP - tube (0.937 dia) | 1 | |
| 55-9228 | CLAMP - tube (0.875 dia) | 2 | ||
| 55-2979 | SCREW - clamp | 2 | ||
| 55-2086 | FLATWASHER | 2 | ||
| 55-4953 | NUT | 1 | ||
| 34 | 55-9311 | CLAMP - tube (1.0 dia) | 1 | |
| 55-9310 | CLAMP - tube (1.125 dia) | 2 | ||
| 55-2957 | SCREW - clamp | 3 | ||
| 55-2086 | FLATWASHER | 6 | ||
| 55-4953 | NUT | 3 | ||
| 35 | 91-715 | BRACKET - valve | 1 | |
| 36 | 55-2365 | HANGER - dehydrator | 2 | |
| 55-2957 | SCREW - hanger (1/4-20 x 7/8 in lg) | 2 | ||
| 55-3675 | SCREW - dehydrator (1/4-20 x 1-3/4 in lg) | 2 | ||
| 55-2086 | FLATWASHER | 4 | ||
| 55-1800 | LOCKWASHER | 2 | ||
| 55-4953 | NUT | 2 | ||
| 55-6526 | INSERT | 2 |
