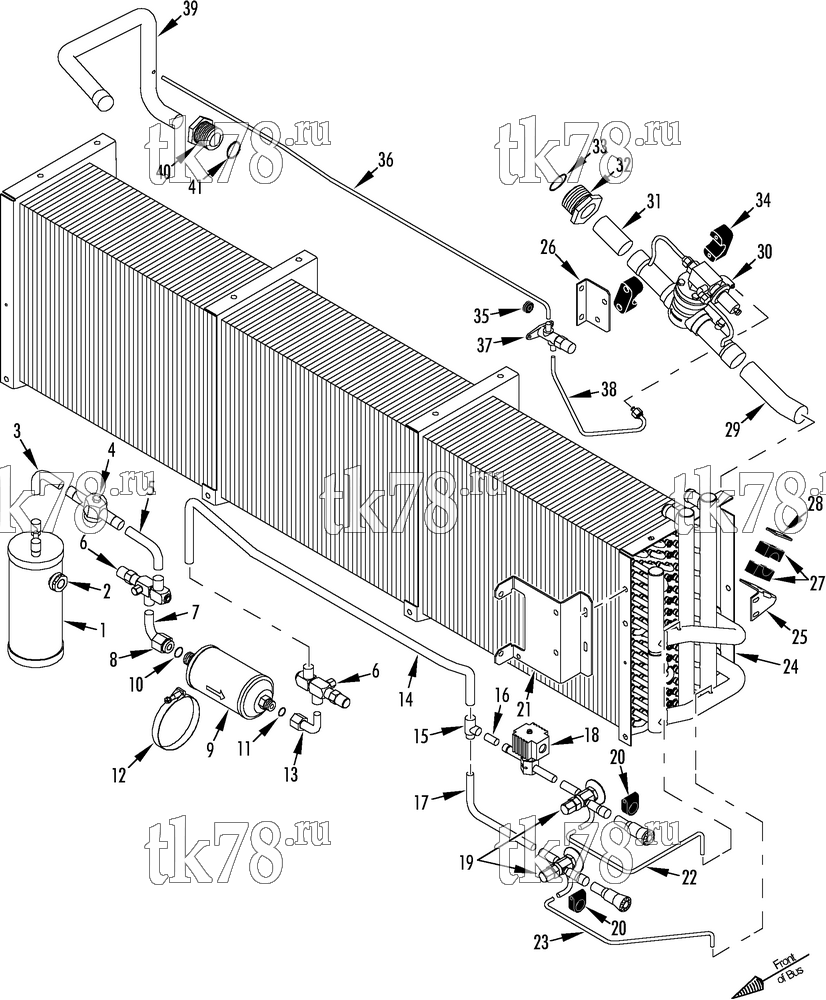

Установкa Thermo King схема EVAPORATOR REFRIGERATION – 176G6
Обновление от: 7/16/11
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 61-225 | TANK - receiver | 1 | |
| 2 | 66-9918 | INDICATOR - liquid | 1 | |
| 33-2419 | O-RING - indicator | 1 | ||
| 55-2640 | NUT - tank | 2 | ||
| 55-2641 | FLATWASHER | 2 | ||
| 3 | 61-1600 | TUBE - receiver to indicator | 1 | |
| 4 | 66-2648 | INDICATOR - liquid | 1 | |
| 5 | 61-1599 | TUBE - indicator to valve | 1 | |
| 6 | 306-660 | VALVE - shutoff | 2 | |
| 306-115 | CAP - shutoff valve | 1 | ||
| 7 | 61-1598 | TUBE - valve to dehydrator | 1 | |
| 8 | 55-6356 | SHOULDER - o-ring | 1 | |
| 55-6396 | NUT - shoulder | 1 | ||
| 9 | 61-600 | DEHYDRATOR | 1 | |
|
US-61-600 | Дегидратор, SL/SLe/SLX/SLXe/SMX/SMX-II/SB / UT-800/1200 | 8 100 ₽ |
|
|
PP-61-600 | Дегидратор, SL/SLe/SLX/SLXe/SMX/SMX-II/SB / UT-800/1200 | 2 490 ₽ |
|
| 10 | 33-2115 | O-RING - inlet | 1 | |
| 11 | 33-566 | O-RING - outlet | 1 | |
| 12 | 55-7800 | CLAMP - dehydrator | 2 | |
| 13 | 61-1601 | TUBE - dehydrator to valve | 1 | |
| 55-2182 | BUSHING | 1 | ||
| 55-6837 | SHOULDER - o-ring | 1 | ||
| 55-6838 | NUT - shoulder | 1 | ||
| 14 | 61-1605 | TUBE - valve to tee | 1 | |
| 15 | 66-5212 | TEE (5/8C x 1/2C x 1/2C) | 1 | |
| 16 | 66-7539 | TUBE - tee to valve (upper) | 1 | |
| 17 | 61-1591 | TUBE - tee to valve (lower) | 1 | |
| 18 | 61-869 | VALVE - refrigeration | 1 | |
| 41-4145 | COIL - valve | 1 | ||
| 19 | 61-1595 | VALVE - expansion | 2 | |
| 51-128 | CLAMP - valve | 2 | ||
| 55-1587 | SCREW - clamp | 2 | ||
| 55-1800 | LOCKWASHER | 2 | ||
| 55-2086 | FLATWASHER | 2 | ||
| 20 | 55-7013 | CLAMP - distributor | 2 | |
| 55-3462 | SCREW - clamp | 2 | ||
|
20-55-3462 | Болт | 600 ₽ |
|
| 55-1800 | LOCKWASHER | 2 | ||
| 55-2086 | FLATWASHER | 2 | ||
| 21 | 92-2144 | BRACKET - distributor | 1 | |
| 55-2957 | SCREW - bracket | 2 | ||
| 55-1800 | LOCKWASHER | 2 | ||
| 55-2086 | FLATWASHER | 2 | ||
| 22 | 61-1592 | TUBE - equalizer (top) | 1 | |
| 23 | 61-1590 | TUBE - equalizer (bottom) | 1 | |
| 24 | 67-1849 | COIL - evaporator | 1 | |
| 55-2957 | SCREW - coil | A/R | ||
| 55-1800 | LOCKWASHER | A/R | ||
| 55-2086 | FLATWASHER | A/R | ||
| 25 | 92-2146 | BRACKET - suction tube | 1 | |
| 26 | 92-2145 | BRACKET - epr valve | 1 | |
| 55-2957 | SCREW - bracket | 4 | ||
| 55-1800 | LOCKWASHER | 4 | ||
| 55-2086 | FLATWASHER | 4 | ||
| 27 | 91-2473 | CLAMP - tube | 2 | |
| 28 | 91-6158 | PLATE - clamp | 1 | |
| 55-7976 | SCREW - clamp | 2 | ||
| 55-1800 | LOCKWASHER | 2 | ||
| 55-2086 | FLATWASHER | 2 | ||
| 29 | 61-1593 | TUBE - tee to epr valve | 1 | |
| 30 | 66-8122 | VALVE - epr (see 129C13) | 1 | |
| 31 | 61-1594 | TUBE - valve to adapter (1.375 od x 2.70) | 1 | |
| 32 | 55-6570 | ADAPTER - bulkhead (#24, o-ring seal) | 1 | |
| 33 | 33-147 | O-RING - suction | 1 | |
| 34 | 55-6020 | CLAMP - tube | 2 | |
| 55-3344 | SCREW - clamp | 2 | ||
|
20-55-3344 | Болт | 520 ₽ |
|
| 55-1800 | LOCKWASHER | 2 | ||
| 55-4414 | WASHER - special | 2 | ||
| 35 | 33-282 | GROMMET (3/8 id) | 2 | |
| 36 | 61-1604 | TUBE - pilot line | 1 | |
| 37 | 66-4102 | VALVE - shutoff | 1 | |
| 66-343 | CAP - valve | 1 | ||
| 38 | 61-1602 | TUBE - equalizer | 1 | |
| 39 | 61-1603 | TUBE - discharge | 1 | |
| 40 | 55-7537 | ADAPTER - bulkhead (#20, o-ring seal) | 1 | |
| 41 | 33-144 | O-RING - discharge | 1 |
