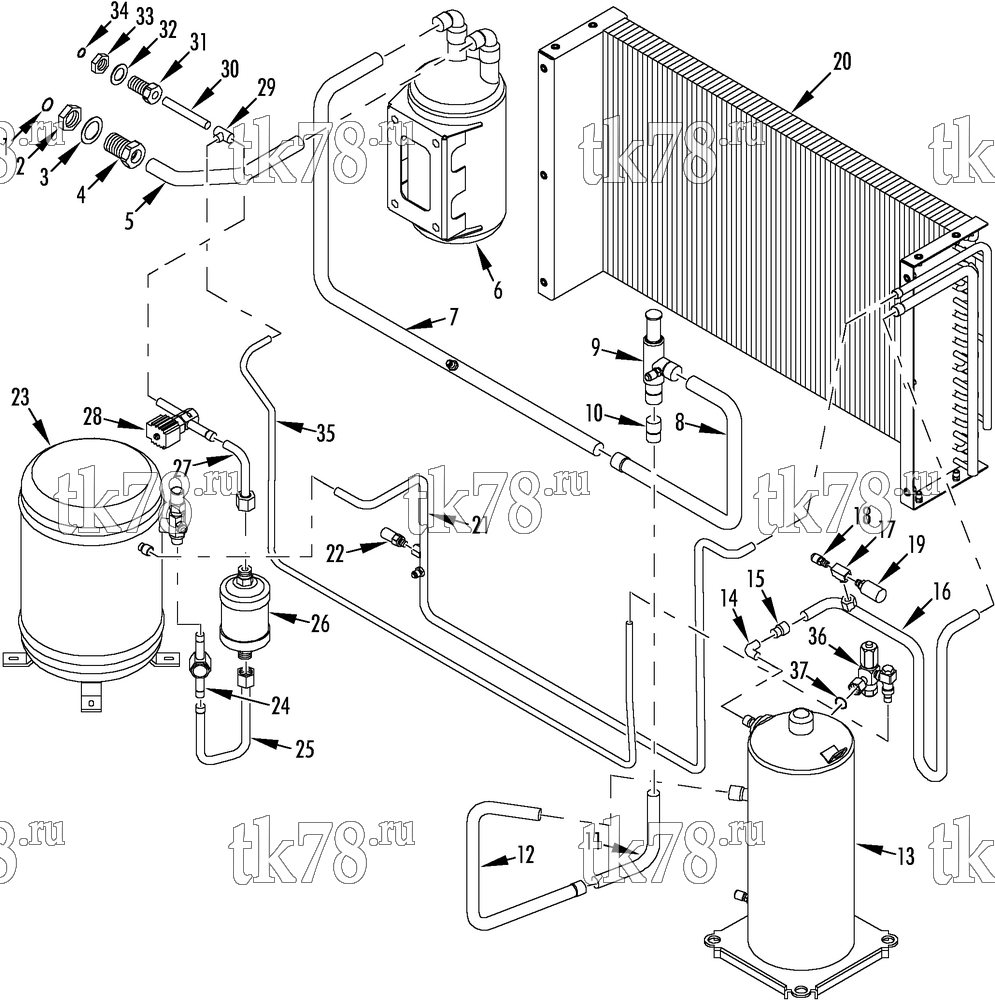

Установкa Thermo King схема CONDENSER REFRIGERATION (LOW TEMPERATURE UNITS) – 176D2
Обновление от: 4/10/02
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 33-1222 | O-RING - suction | 1 | |
| 2 | 55-6812 | NUT - bulkhead adapter | 1 | |
| 3 | 55-7199 | LOCKWASHER | 1 | |
| 4 | 55-7622 | ADAPTER - bulkhead | 1 | |
| 5 | 61-1559 | TUBE - adapter to accumulator | 1 | |
| 6 | 67-1844 | TANK - accumulator | 1 | |
| 7 | 61-1555 | TUBE - accumulator tank to cpr valve | 1 | |
| 55-7535 | FITTING - saddle | 1 | ||
| 8 | 61-1554 | TUBE - accumulator tank to cpr valve | 1 | |
| 9 | 61-1553 | VALVE - pressure regulator | 1 | |
| 10 | 66-509 | BUSHING - valve to tube | 1 | |
| 11 | 61-1562 | TUBE - cpr valve to compressor | 1 | |
| 12 | 61-1563 | TUBE - cpr valve to compressor (units w/ 2 hp compressors) | 1 | |
| 61-1614 | TUBE - cpr valve to compressor (units w/ 3 hp compressors) | 1 | ||
| 66-9842 | VALVE | 1 | ||
| 13 | 102-787 | COMPRESSOR (2.0 hp, 208-230/1/50-60) | 1 | |
| 102-788 | COMPRESSOR (3.0 hp, 208-230/1/50-60) | 1 | ||
| 102-789 | COMPRESSOR (2.0 hp, 208-230/3/50-60) | 1 | ||
| 102-790 | COMPRESSOR (3.0 hp, 208-230/3/50-60) | 1 | ||
| 14 | 55-3248 | ELBOW | 1 | |
| 15 | 55-3627 | COUPLING | 1 | |
| 16 | 61-1561 | TUBE - compressor to coil (units w/ 2 hp compressors) | 1 | |
| 61-1613 | TUBE - compressor to coil (units w/ 3 hp compressors) | 1 | ||
| 66-4139 | FITTING - saddle | 1 | ||
| 17 | 55-1654 | TEE | 1 | |
| 18 | 11-2886 | VALVE | 1 | |
| 11-7777 | CORE - valve | 1 | ||
| 55-5672 | CAP - valve | 1 | ||
| 19 | 41-4794 | SWITCH - pressure | 1 | |
| 20 | 67-1843 | COIL - condenser | 1 | |
| 21 | 61-1552 | TUBE - condenser coil to receiver tank | 1 | |
| 55-3295 | FITTING - saddle | 1 | ||
| 66-874 | FITTING - flare | 1 | ||
| 22 | 66-7392 | VALVE - relief | 1 | |
|
10-66-7392 | Предохранительный клапан | 3 480 ₽ |
|
| PP-66-7392 | Предохранительный клапан | 1 730 ₽ |
|
|
| 23 | 67-1842 | TANK - receiver | 1 | |
| 24 | 66-1296 | INDICATOR - liquid | 1 | |
| 25 | 61-1558 | TUBE - receiver to dehydrator | 1 | |
| 26 | 66-8767 | DEHYDRATOR | 1 | |
| 33-3007 | O-RING | 2 | ||
| 33-3007 OEM | О-ринг сервисного клапана, X426/430/640 | 130 ₽ |
|
|
| 55-8951 | SHOULDER - o-ring | 2 | ||
| 55-8950 | NUT - shoulder | 2 | ||
| 27 | 61-1556 | TUBE - dehydrator to valve | 1 | |
| 28 | 61-1557 | VALVE - solenoid | 1 | |
| 29 | 55-2181 | TEE | 1 | |
| 30 | 61-1565 | TUBE - tee to adapter | 1 | |
| 31 | 55-6779 | ADAPTER - bulkhead | 1 | |
| 32 | 55-9146 | LOCKWASHER | 1 | |
| 33 | 55-6393 | NUT - bulkhead | 1 | |
| 34 | 33-566 | O-RING - discharge | 1 | |
| 35 | 61-1564 | TUBE - tee to compressor | 1 | |
| 36 | 61-1560 | VALVE - discharge temperature control | 1 | |
| 37 | 33-1015 | O-RING - valve | 1 | |
| 33-1015 OEM | О-ринг фильтра-осушителя, 3/8" | 240 ₽ |
|
