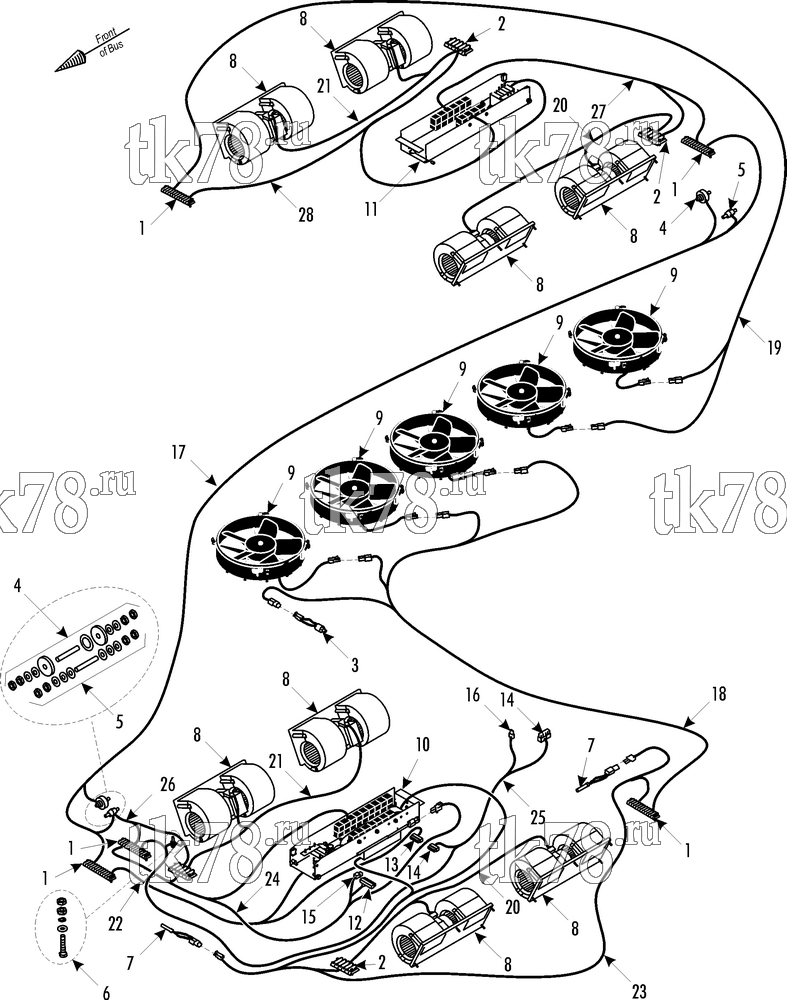

Установкa Thermo King схема ELECTRICAL COMPONENTS – 175H1
Обновление от: 6/23/13
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 44-6255 | BOARD - terminal (20 amp) | 5 | |
| 55-7696 | SCREW - board | 2 | ||
| 55-7861 | LOCKWASHER | 2 | ||
| 55-7368 | FLATWASHER | 2 | ||
| 2 | 41-2372 | BOARD - terminal (4 terminal, 55 amp) | 4 | |
| 55-7696 | SCREW - board | 2 | ||
| 55-7861 | LOCKWASHER | 2 | ||
| 55-7368 | FLATWASHER | 2 | ||
| 3 | 55-8121 | SWITCH - hpco | 1 | |
| 4 | 55-3167 | STUD - positive | 2 | |
| 51-177 | WASHER - spacer | 1 | ||
| 55-5901 | WASHER - shoulder | 1 | ||
| 55-5902 | FLATWASHER (polyester) | 1 | ||
| 55-448 | FLATWASHER (brass) | 4 | ||
| 55-671 | NUT | 4 | ||
| 5 | 55-3167 | STUD - negative | 2 | |
| 55-3672 | LOCKWASHER | 2 | ||
| 55-448 | FLATWASHER | 4 | ||
| 55-671 | NUT | 4 | ||
| 6 | 55-3000 | SCREW - negative | 1 | |
| 55-2001 | FLATWASHER | 1 | ||
| 55-2964 | LOCKWASHER | 1 | ||
| 55-664 | NUT (keps, 10-32) | 1 | ||
| 55-2965 | NUT (hex, 10-32) | 1 | ||
| 7 | 40-975 | KIT - temperature sensor | 2 | |
|
40-975 OEM | Датчик температуры к-т, некалиброванный | 10 310 ₽ |
|
|
10-40-975 | Датчик температуры к-т, некалиброванный | 4 660 ₽ |
|
| NSS | SENSOR - ungraded (18 in) | 1 | ||
| 41-5210 | COLLAR - crimp | 2 | ||
| 92-846 | HEATSHRINK (1/2 in) | 2 | ||
| 8 | 78-1198 | BLOWER | 8 | |
| 55-7696 | SCREW - blower | 5 | ||
| 55-7031 | LOCKWASHER | 5 | ||
| 55-7697 | FLATWASHER | 5 | ||
| 9 | 78-1294 | FAN - condenser (see 175G4) | 5 | |
| 78-1294 OEM | Вентилятор конденсатора | 19 470 ₽ |
|
|
|
10-33-2999 | Прокладка ГБЦ, Yanmar 482, SB-XXX/SB-III/SL/SLe | 13 280 ₽ |
|
| PP-33-2999 | Прокладка ГБЦ, Yanmar 482, SB-XXX/SB-III/SL/SLe | 4 600 ₽ |
|
|
| 10 | NSS | PANEL - control (master, see 175H2) | 1 | |
| 55-8718 | SPACER | 2 | ||
| 55-1587 | SCREW - control panel (1/4-20 x 3/4) | 2 | ||
| 55-2977 | SCREW - control panel (1/4-20 x 1) | 2 | ||
| 55-2086 | FLATWASHER | 4 | ||
| 11 | NSS | PANEL - control (slave, see 175H3) | 1 | |
| 55-8718 | SPACER | 2 | ||
| 55-1587 | SCREW - control panel (1/4-20 x 3/4) | 2 | ||
| 55-2977 | SCREW - control panel (1/4-20 x 1) | 2 | ||
| 55-2086 | FLATWASHER | 4 | ||
| 12 | 41-656 | CONNECTOR (24 terminal) | 1 | |
| 13 | 41-650 | CONNECTOR (18 terminal) | 1 | |
| 14 | 41-661 | CONNECTOR (14 terminal) | 2 | |
| 15 | 41-654 | CONNECTOR (4 terminal) | 1 | |
| 16 | 41-1507 | CONNECTOR - inline (2 terminal) | 1 | |
| 17 | 41-4974 | HARNESS - interconnecting | 1 | |
| 18 | 41-2672 | HARNESS - condenser to master (for connectors see 115D14) | 1 | |
| 19 | 41-4975 | HARNESS - condenser to slave (for connectors see 115D14) | 1 | |
| 20 | 41-2876 | HARNESS - evaporator blower (roadside) | 2 | |
| 21 | 41-2875 | HARNESS - evaporator blower (curbside) | 2 | |
| 22 | 41-4976 | HARNESS - mini relay | 1 | |
| 23 | 41-4977 | HARNESS - control panel to condenser section | 1 | |
| 24 | 41-2479 | HARNESS - control panel to board | 1 | |
| 25 | 41-4978 | HARNESS - driver panel | 1 | |
| 26 | 41-3545 | HARNESS (CH) | 1 | |
| 27 | 41-4979 | HARNESS - control panel to board | 1 | |
| 28 | 41-4980 | HARNESS - control panel to condenser section | 1 |
