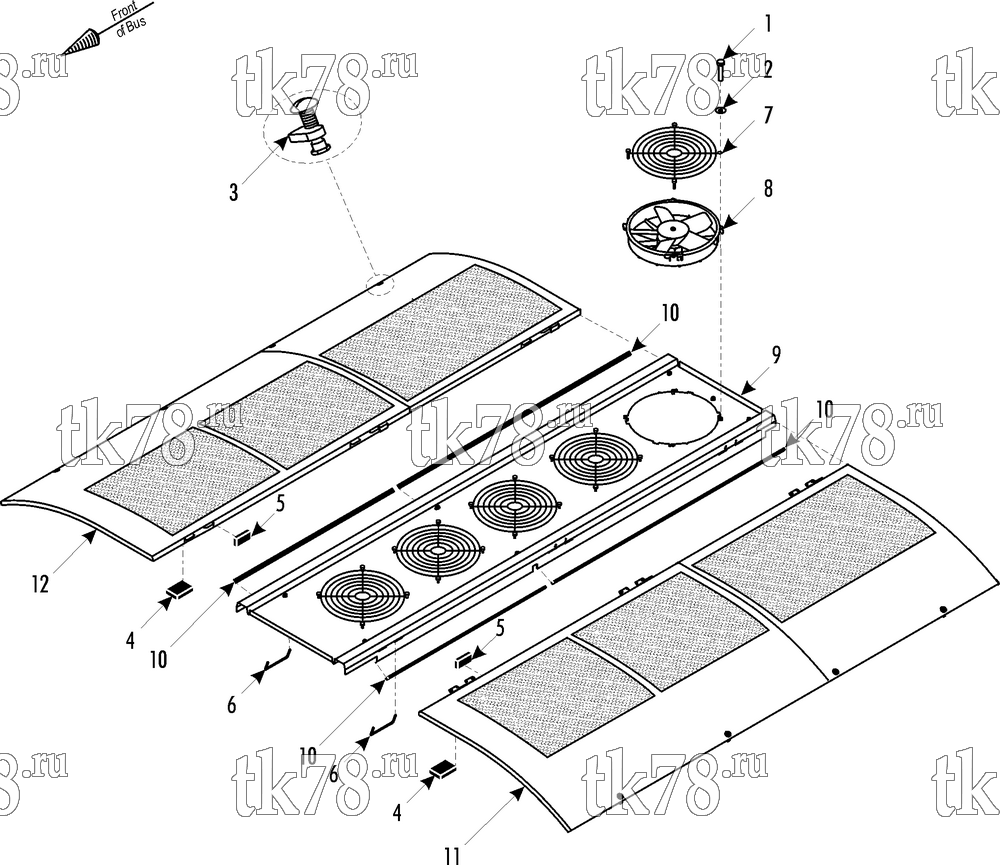

Установкa Thermo King схема CONDENSER COVERS & FANS & INSULATION – 175G4
Обновление от: 4/8/03
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 55-2979 | SCREW - guard | 20 | |
| 2 | 55-2086 | FLATWASHER | 20 | |
| 3 | 91-9874 | FASTENER (see 155A8) | 8 | |
| 4 | 33-3544 | STRIP - neoprene (35 x 50.8 x 9.652) | 6 | |
| 5 | 33-3573 | STRIP - neoprene (18 x 38.1 x 6.35) | 6 | |
| 6 | 91-9877 | ROD - grille | 6 | |
| 7 | 98-5425 | GUARD - fan | 5 | |
| 8 | 78-1294 | FAN - condenser (for connector see 115D14) | 2 | |
| 78-1294 OEM | Вентилятор конденсатора | 19 470 ₽ |
|
|
|
10-33-2999 | Прокладка ГБЦ, Yanmar 482, SB-XXX/SB-III/SL/SLe | 13 280 ₽ |
|
| PP-33-2999 | Прокладка ГБЦ, Yanmar 482, SB-XXX/SB-III/SL/SLe | 4 600 ₽ |
|
|
| 9 | 98-6386 | PLATE - top | 1 | |
| 55-6994 | SCREW - plate | 6 | ||
| 55-7170 | LOCKWASHER | 6 | ||
| 55-7075 | FLATWASHER | 6 | ||
| 55-7373 | NUT - captive | 8 | ||
| 10 | 99-7246 | STRIP - neoprene (15 ft) | A/R | |
| 11 | 98-6289 | GRILLE - condenser (roadside) | 1 | |
| 12 | 98-6290 | GRILLE - condenser (curbside) | 1 |
