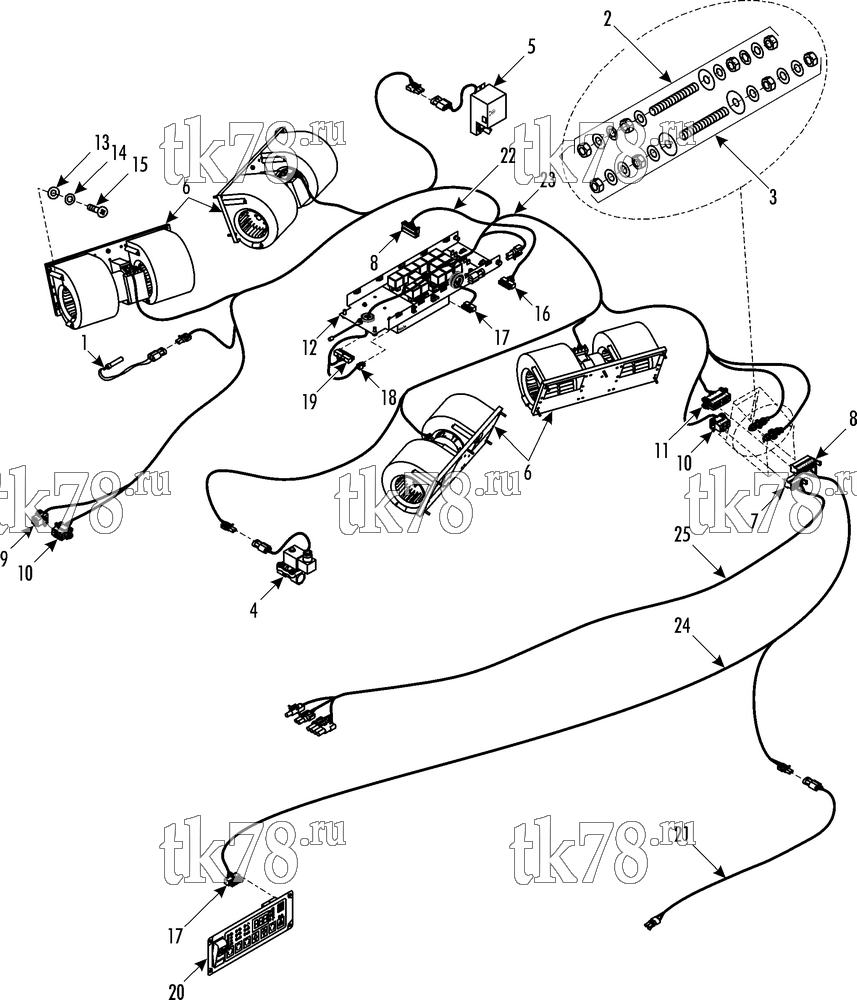

Установкa Thermo King схема EVAPORATOR ELECTRICAL (IntelligAIRE) – 175E4
Обновление от: 6/23/13
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 40-975 | KIT - temperature sensor | 1 | |
|
40-975 OEM | Датчик температуры к-т, некалиброванный | 10 310 ₽ |
|
|
10-40-975 | Датчик температуры к-т, некалиброванный | 4 660 ₽ |
|
| NSS | SENSOR - ungraded (18 in) | 1 | ||
| 41-5210 | COLLAR - crimp | 2 | ||
| 92-846 | HEATSHRINK (1/2 in) | 2 | ||
| 2 | 55-9367 | STUD | 1 | |
| 55-8568 | WASHER (nylon) | 1 | ||
| 55-8955 | WASHER | 4 | ||
| 305-163 | NUT | 4 | ||
| 55-3238 | LOCKWASHER | 2 | ||
| 3 | 55-9367 | STUD | 1 | |
| 55-8631 | WASHER (nylon) | 2 | ||
| 55-8955 | WASHER | 4 | ||
| 305-163 | NUT | 4 | ||
| 55-3238 | LOCKWASHER | 3 | ||
| 4 | 41-4151 | VALVE - solenoid (water, 24VDC) | 1 | |
| 60-271 | KIT - repair | 1 | ||
| 41-4201 | COIL (24V) | 1 | ||
| 5 | 41-2420 | MOTOR - geared (see 145D15) | 1 | |
| 6 | 78-1198 | BLOWER - evaporator | 4 | |
| 7 | 41-3855 | TERMINAL - connector (10-pin, female) | 1 | |
| 8 | 41-3856 | TERMINAL - connector (18-pin, female) | 2 | |
| 9 | 41-4055 | CONNECTOR (6-pin, male) | 1 | |
| 10 | 41-4054 | CONNECTOR (10-pin, male) | 2 | |
| 11 | 41-2772 | CONNECTOR (18-pin, male) | 1 | |
| 12 | NSS | PANEL - control (see 175E6) | 1 | |
| 13 | 55-7697 | FLATWASHER | 20 | |
| 14 | 55-7031 | LOCKWASHER | 20 | |
| 15 | 55-7696 | SCREW - blower to frame | 20 | |
| 16 | 41-650 | CONNECTOR (18 terminal) | 1 | |
| 17 | 41-661 | CONNECTOR (14 terminal) | 2 | |
| 18 | 41-654 | CONNECTOR (4 terminal) | 1 | |
| 19 | 41-656 | CONNECTOR (24 terminal) | 1 | |
| 20 | 45-1773 | PANEL - driver display (see 152B12) | 1 | |
| 21 | 41-4143 | HARNESS - boost pump (14 m, 1004 only) | 1 | |
| 41-4144 | HARNESS - boost pump (9 m, 1004 only) | 1 | ||
| 44-9434 | HARNESS - boost pump (7.6 m, 1004 only) | 1 | ||
| 22 | 41-4047 | HARNESS - control panel to relay | 1 | |
| 23 | 41-4155 | HARNESS - evaporator (for connectors see 115D14) | 1 | |
| 24 | 41-4048 | HARNESS - unit to driver panel (18 m) | 1 | |
| 41-4169 | HARNESS - unit to driver panel (16 m) | 1 | ||
| 41-4170 | HARNESS - driver panel (14 m) | 1 | ||
| 41-4171 | HARNESS - driver panel (12 m) | 1 | ||
| 41-4172 | HARNESS - driver panel (10 m) | 1 | ||
| 41-4173 | HARNESS - driver panel (8 m) | 1 | ||
| 41-4174 | HARNESS - driver panel (4 m) | 1 | ||
| 25 | 41-4049 | HARNESS - unit o compressor (8.3 m) | 1 | |
| 41-4500 | HARNESS - compressor (20 m) | 1 | ||
| 41-4501 | HARNESS - compressor (16 m) | 1 | ||
| 41-4502 | HARNESS - compressor (14 m) | 1 | ||
| 41-4503 | HARNESS - compressor (10 m) | 1 | ||
| 41-4504 | HARNESS - compressor (7 m) | 1 | ||
| 41-4505 | HARNESS - compressor (6 m) |
