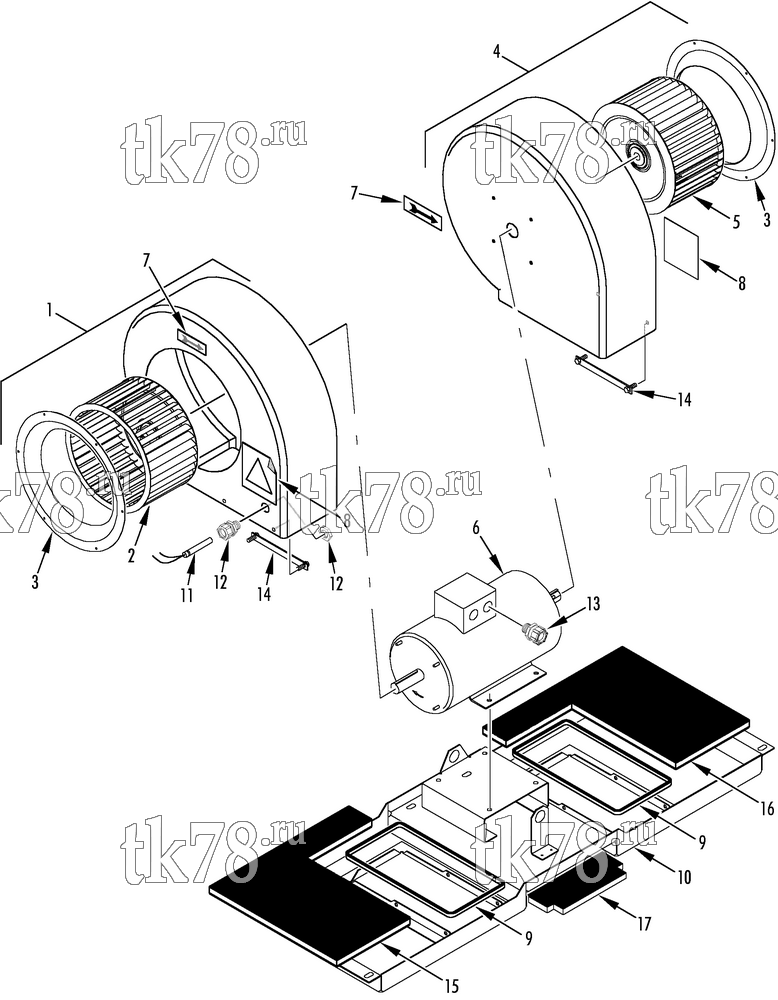

Установкa Thermo King схема EVAPORATOR BLOWER GROUP – 174H6
Обновление от: 10/3/10
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 78-1218 | HOUSING (cw, incl wheel & ring) | 1 | |
| 2 | 78-1239 | BLOWER (cw) | 1 | |
| 3 | 78-1238 | RING - inlet | 2 | |
| 55-7367 | NUT - ring | 8 | ||
| 55-7404 | LOCKWASHER | 8 | ||
| 55-7033 | FLATWASHER | 8 | ||
| 4 | 78-1216 | HOUSING (ccw, incl wheel & ring) | 1 | |
| 5 | 78-1237 | BLOWER (ccw) | 1 | |
| 78-1238 | RING - inlet | 1 | ||
| 6 | 104-687 | MOTOR - blower | 1 | |
| 55-7825 | NUT - motor | 4 | ||
| 55-7066 | LOCKWASHER | 4 | ||
| 55-6988 | FLATWASHER | 4 | ||
| 7 | 99-4931 | NAMEPLATE - arrow | 2 | |
| 8 | 99-8506 | NAMEPLATE - Caution, Fan | 2 | |
| 9 | 99-2039 | EXTRUSION - rubber (cut to 830 mm) | A/R | |
| 10 | 92-6362 | SUPPORT - blower | 1 | |
| 55-7691 | SCREW - support | 4 | ||
| 55-7066 | LOCKWASHER | 4 | ||
| 55-7825 | NUT | 4 | ||
| 11 | 40-974 | KIT - sensor (graded) | 1 | |
|
40-974 OEM | Датчик температуры калиброванный | 8 770 ₽ |
|
|
10-40-974 | Датчик температуры калиброванный | 3 500 ₽ |
|
| 12 | 55-9554 | CONNECTOR - sensor | 1 | |
| 55-9558 | NUT - sealing | 1 | ||
| 13 | 305-1413 | CONNECTOR - motor harness | 2 | |
| 305-1408 | NUT - connector | 2 | ||
| 14 | 92-2071 | BLOWER - nutstrip | 2 | |
| 55-7172 | SCREW - blower | 4 | ||
| 55-7170 | LOCKWASHER | 4 | ||
| 55-7075 | FLATWASHER | 4 | ||
| 15 | 33-3600 | INSULATION - blower | 1 | |
| 16 | 33-3601 | INSULATION - blower | 1 | |
| 17 | 33-3602 | INSULATION - blower | 1 |
