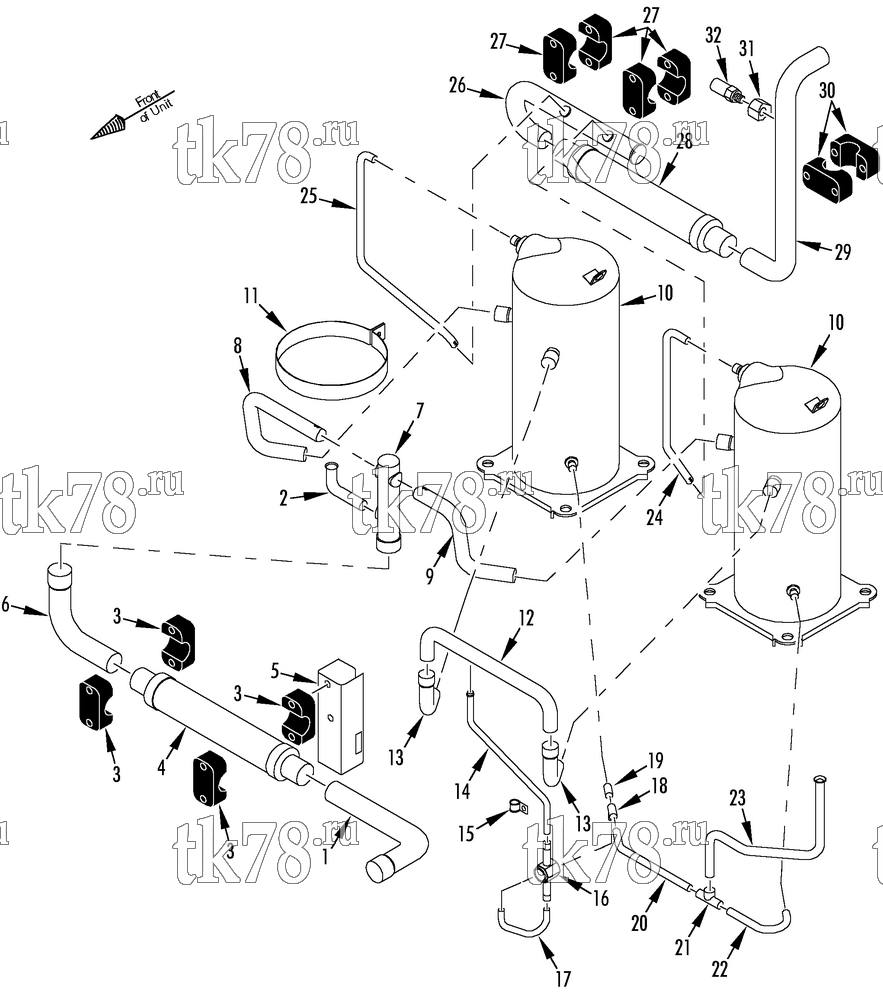

Установкa Thermo King схема COMPRESSOR GROUP – 174H4
Обновление от: 8/5/08
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 02-7040 | COMPRESSOR & BASE (ASQ, incl items 1 thru 32, see 174H5) | 1 | ||
| 1 | 61-1506 | TUBE - evaporator to eliminator | 1 | |
| 2 | 61-1003 | TUBE - suction outlet | 1 | |
| 3 | 55-6020 | CLAMP - suction tube | 4 | |
| 305-1656 | SCREW - clamp | 4 | ||
| 4 | 306-1395 | VIBRASORBER - suction | 1 | |
| 5 | 92-2023 | BRACKET - suction tube | 1 | |
| 6 | 61-1505 | TUBE - eliminator to tee | 1 | |
| 7 | 61-1504 | TEE - suction | 1 | |
| 8 | 61-1508 | TUBE - tee to compressor (left) | 1 | |
| 9 | 61-1507 | TUBE - tee to compressor (right) | 1 | |
| 10 | 102-786 | COMPRESSOR - scroll (for mounting see 174C7) | 2 | |
| 11 | 309-3211 | BAND - compressor | 2 | |
| 55-7341 | SCREW - band | 1 | ||
| 55-8836 | WASHER - square | 2 | ||
| 12 | 61-1468 | TUBE - gas equalizer | 1 | |
| 13 | 61-1008 | TUBE - equalizer to compressor | 2 | |
| 14 | 61-1469 | TUBE - equalizer to sight glass | 1 | |
| 15 | 55-2240 | CLAMP - tube | 1 | |
| 16 | 66-1296 | INDICATOR - liquid | 1 | |
| 17 | 61-1470 | TUBE - indicator to tube | 1 | |
| 18 | 55-3251 | TEE (3/8) | 1 | |
| 19 | 61-1471 | TUBE - tee to compressor | 1 | |
| 20 | 61-1472 | TUBE | 1 | |
| 21 | 55-6222 | TEE (3/8 x 3/8 x 1/2) | 1 | |
| 22 | 61-1473 | TUBE - tee to compressor | 1 | |
| 23 | 61-1474 | TUBE - oil inlet (compressor) | 1 | |
| 24 | 61-1475 | TUBE - discharge (right compressor) | 1 | |
| 25 | 61-1476 | TUBE - discharge (left compressor) | 1 | |
| 26 | 61-1477 | TUBE - discharge | 1 | |
| 27 | 91-6554 | CLAMP - tube | 4 | |
| 305-1656 | SCREW - clamp | 4 | ||
| 55-9553 | NUT - captive | 4 | ||
| 28 | 306-1397 | VIBRASORBER - discharge | 1 | |
| 29 | 61-1509 | TUBE - discharge | 1 | |
| 30 | 91-6554 | CLAMP - suction | 4 | |
| 31 | 61-549 | FITTING - saddle | 1 | |
| 32 | 66-7392 | VALVE - relief | 1 | |
|
10-66-7392 | Предохранительный клапан | 3 480 ₽ |
|
| PP-66-7392 | Предохранительный клапан | 1 730 ₽ |
|
