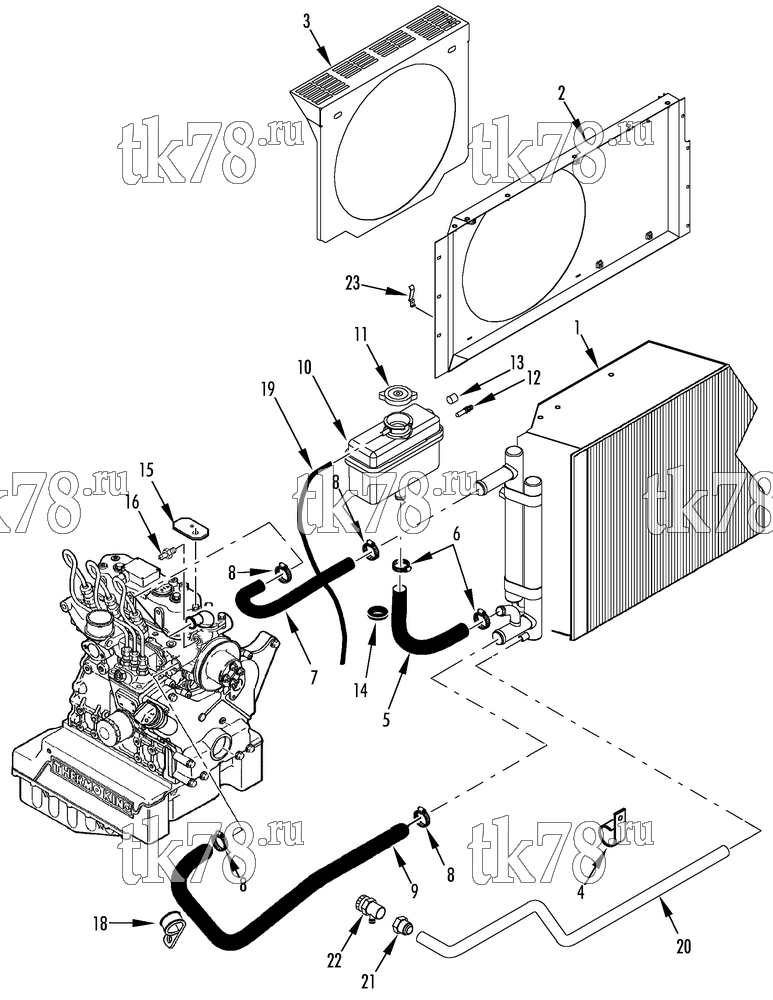

Установкa Thermo King схема ENGINE COOLING SYSTEM – 174D9
Обновление от: 5/2/09
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 67-2167 | COIL - condenser/radiator (before 1/06) | 1 | |
| 67-2167 | COIL - condenser/radiator (1/06 & after) | 1 | ||
| 55-1800 | LOCKWASHER | 8 | ||
| 55-2086 | FLATWASHER | 8 | ||
| 2 | 98-6355 | PLENUM - condenser | 1 | |
| 55-8711 | INSERT - threaded | 6 | ||
| 55-3059 | NUT - captive | 4 | ||
| 55-2977 | SCREW - plenum | 4 | ||
| 55-1800 | LOCKWASHER | 4 | ||
| 55-2086 | FLATWASHER | 4 | ||
| 3 | 92-1551 | ORIFICE - condenser fan | 1 | |
| 55-2977 | SCREW - orifice | 4 | ||
| 55-3045 | WASHER - dome | 4 | ||
| 4 | 55-6388 | CLAMP - tube | 2 | |
| 55-3121 | SCREW - clamp | 2 | ||
| 55-1800 | LOCKWASHER | 2 | ||
| 55-2086 | FLATWASHER | 2 | ||
| 5 | 98-935 | HOSE - overflow tank to radiator (EPDM, cut to 15 in) | 1 | |
| 12-419 | HOSE - overflow tank to radiator (silicone, cut to 15 in) | 1 | ||
| 6 | 55-558 | CLAMP - hose (EPDM) | 2 | |
| 55-6731 | CLAMP - hose (silicone) | 2 | ||
| 7 | 11-9581 | HOSE - engine to radiator (upper, EPDM) | 1 | |
| 11-9582 | HOSE - engine to radiator (upper, silicone) | 1 | ||
| 8 | 55-2818 | CLAMP - hose (EPDM) | 4 | |
| 55-3401 | CLAMP - hose (silicone) | 4 | ||
| 9 | 11-9518 | HOSE - engine to radiator (lower, EPDM) | 1 | |
| 11-9519 | HOSE - engine to radiator (lower, silicone) | 1 | ||
| 10 | 12-826 | TANK - overflow | 1 | |
| 55-2977 | SCREW - tank | 4 | ||
| 55-1800 | LOCKWASHER | 4 | ||
| 55-2086 | FLATWASHER | 4 | ||
| 11 | 11-9242 | CAP - tank | 1 | |
|
10-11-9242 | Крышка радиатора 10 LBS | 2 370 ₽ |
|
| 12 | 41-2842 | SENSOR - coolant level | 1 | |
| 203-385 | SEALER - thread | A/R | ||
| 13 | 55-8459 | PLUG - pipe | 1 | |
| 14 | 33-489 | GROMMET (1.25 od) | 1 | |
| 15 | 91-7747 | PLATE - sensor | 1 | |
| 55-2536 | CLAMP (0.250 dia) | 1 | ||
| 55-5261 | CLAMP (0.187 dia) | 1 | ||
| 16 | 41-6539 | SENSOR - water temperature | 1 | |
|
10-41-6539 | Датчик температуры двигателя Yanmar 370 / 374 / 376 / 395 / 482 / 486 / 486V | 8 970 ₽ |
|
|
PP-41-6539 | Датчик температуры двигателя Yanmar 370 / 374 / 376 / 395 / 482 / 486 / 486V | 2 720 ₽ |
|
| 18 | 55-6156 | CLAMP - hose | 1 | |
| 55-1587 | SCREW - clamp | 1 | ||
| 55-2086 | FLATWASHER | 1 | ||
| 55-4953 | NUT | 1 | ||
| 19 | 98-771 | HOSE - overflow (100 in) | A/R | |
| 20 | 11-9484 | TUBE - drain | 1 | |
| 21 | 66-2672 | ADAPTER - drain cock | 1 | |
| 22 | 55-7134 | DRAIN COCK | 1 | |
| 203-385 | SEALER - thread | A/R | ||
| 23 | 55-9975 | CLIP - retaining | 2 | |
| 55-1714 | RIVET - clip | 2 |
