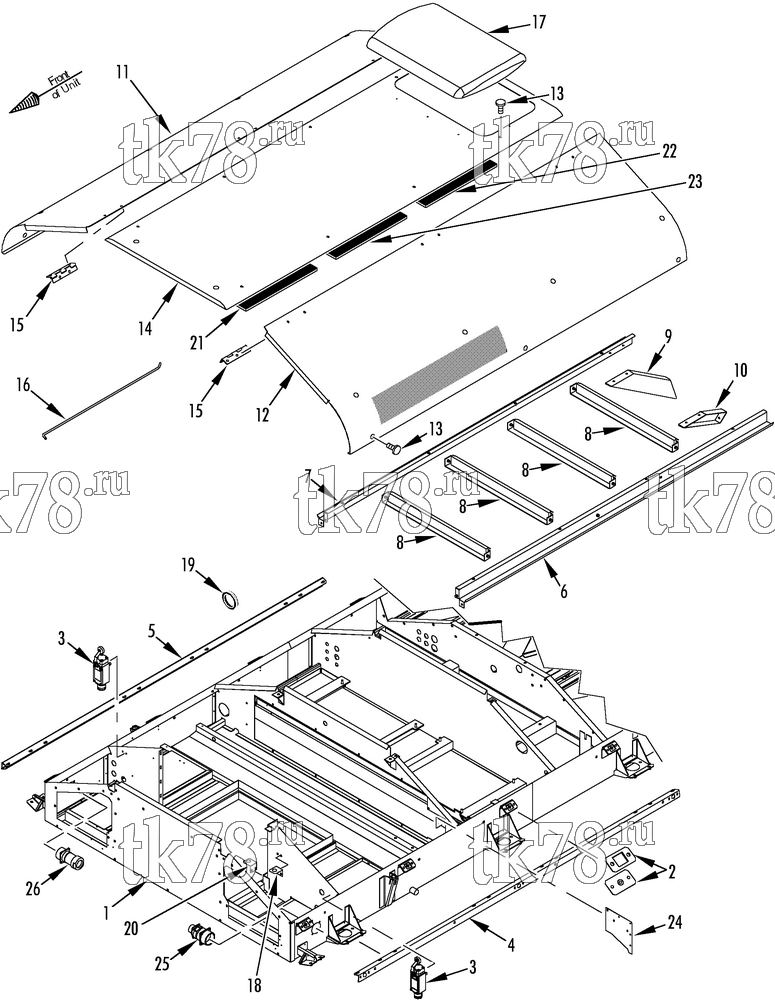

Установкa Thermo King схема EVAPORATOR COVERS – 174C8
Обновление от: 4/9/04
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 98-6328 | FRAME - unit | 1 | |
| 2 | 92-1399 | PLATE - lock (top) | 8 | |
| 92-1400 | PLATE - lock (bottom) | 8 | ||
| 55-3130 | RIVET - plate | 4 | ||
| 3 | 41-3917 | SWITCH - limit | 2 | |
| 55-9555 | BUSHING - cable | 2 | ||
| 55-9566 | SCREW - switch | 4 | ||
| 55-7369 | LOCKWASHER | 4 | ||
| 55-7697 | FLATWASHER | 4 | ||
| 55-3010 | RIVET - support | 4 | ||
| 4 | 92-2019 | BRACKET - lock (left) | 1 | |
| 5 | 92-2020 | BRACKET - lock (right) | 1 | |
| 55-6994 | SCREW - bracket | 10 | ||
| 55-6996 | LOCKWASHER | 10 | ||
| 55-7075 | FLATWASHER | 10 | ||
| 6 | 98-5870 | BEAM (right) | 1 | |
| 7 | 92-782 | BEAM (left) | 1 | |
| 99-2280 | EXTRUSION (rubber) | A/R | ||
| 55-6994 | SCREW - beam (M6) | 10 | ||
| 55-6996 | LOCKWASHER | 10 | ||
| 55-7075 | FLATWASHER | 10 | ||
| 55-7691 | SCREW - beam (M8) | 6 | ||
| 55-7085 | FLATWASHER | 6 | ||
| 55-7066 | LOCKWASHER | 6 | ||
| 55-7825 | NUT | 6 | ||
| 8 | 92-781 | BAR - beam | 4 | |
| 303-836 | INSULATION - support | 4 | ||
| 55-6994 | SCREW - support | 8 | ||
| 55-6996 | LOCKWASHER | 8 | ||
| 55-7075 | FLATWASHER | 8 | ||
| 55-9553 | INSERT - threaded | 8 | ||
| 9 | 309-3448 | STRUT (left) | 1 | |
| 10 | 309-3447 | STRUT (right) | 1 | |
| 11 | 98-6333 | COVER - evaporator (left) | 1 | |
| 12 | 98-6332 | COVER - evaporator (right) | 1 | |
| 13 | 92-1994 | LOCK - cover | 14 | |
| 55-9368 | SCREW - cover to hinge | 18 | ||
| 55-6996 | LOCKWASHER | 18 | ||
| 14 | 98-6330 | COVER - evaporator (center) | 1 | |
| 55-9368 | SCREW - cover | 10 | ||
| 55-5970 | WASHER - sealing | 10 | ||
| 15 | 92-1403 | HINGE - cover | 6 | |
| 55-9368 | SCREW - hinge to cover | 12 | ||
| 55-5970 | WASHER - sealing | 12 | ||
| 55-6994 | SCREW - hinge to frame | 12 | ||
| 55-6996 | LOCKWASHER | 12 | ||
| 55-7075 | FLATWASHER | 24 | ||
| 55-7354 | NUT | 12 | ||
| 16 | 309-3204 | SUPPORT - cover | 2 | |
| 55-5601 | PIN - cotter | 1 | ||
| 55-7075 | FLATWASHER | 3 | ||
| 17 | 309-3221 | COVER - compressor | 1 | |
| 55-2260 | RIVET - switch | 8 | ||
| 18 | 92-803 | BRACKET - clamp | 1 | |
| 55-3026 | CLAMP (5/8) | 1 | ||
| 55-7172 | SCREW - clamp | 1 | ||
| 55-6996 | LOCKWASHER | 1 | ||
| 55-7075 | FLATWASHER | 1 | ||
| 19 | 33-930 | GROMMET (2-1/8 id) | 3 | |
| 33-994 | GROMMET (1-3/8 id) | 2 | ||
| 33-2440 | GROMMET (1-1/8 id) | 2 | ||
| 33-612 | GROMMET (7/8 id) | 4 | ||
| 33-415 | GROMMET (5/8 id) | 9 | ||
| 33-1055 | GROMMET (3/8 id) | 1 | ||
| 20 | 92-1402 | BRACKET (LRV) | 1 | |
| 21 | 33-3574 | INSULATION - front | 1 | |
| 22 | 33-3291 | INSULATION - center | 1 | |
| 23 | 33-3575 | INSULATION - rear | 1 | |
| 24 | 92-808 | INSERT - heater wall | 1 | |
| 25 | 41-4719 | CONNECTOR (4-pin, male) | 1 | |
| 41-4720 | PIN (16 ga) | 4 | ||
| 41-4732 | PIN (4/10 mm) | 3 | ||
| 41-4722 | PLUG - hole | 8 | ||
| 41-4723 | PLUG - hole | 1 | ||
| 26 | 41-4724 | CONNECTOR (22-pin, male) | 1 | |
| 41-4720 | PIN (16 ga) | 22 | ||
| 41-4722 | PLUG - hole | 13 | ||
| 51-109 | BUSHING - cable | 1 |
