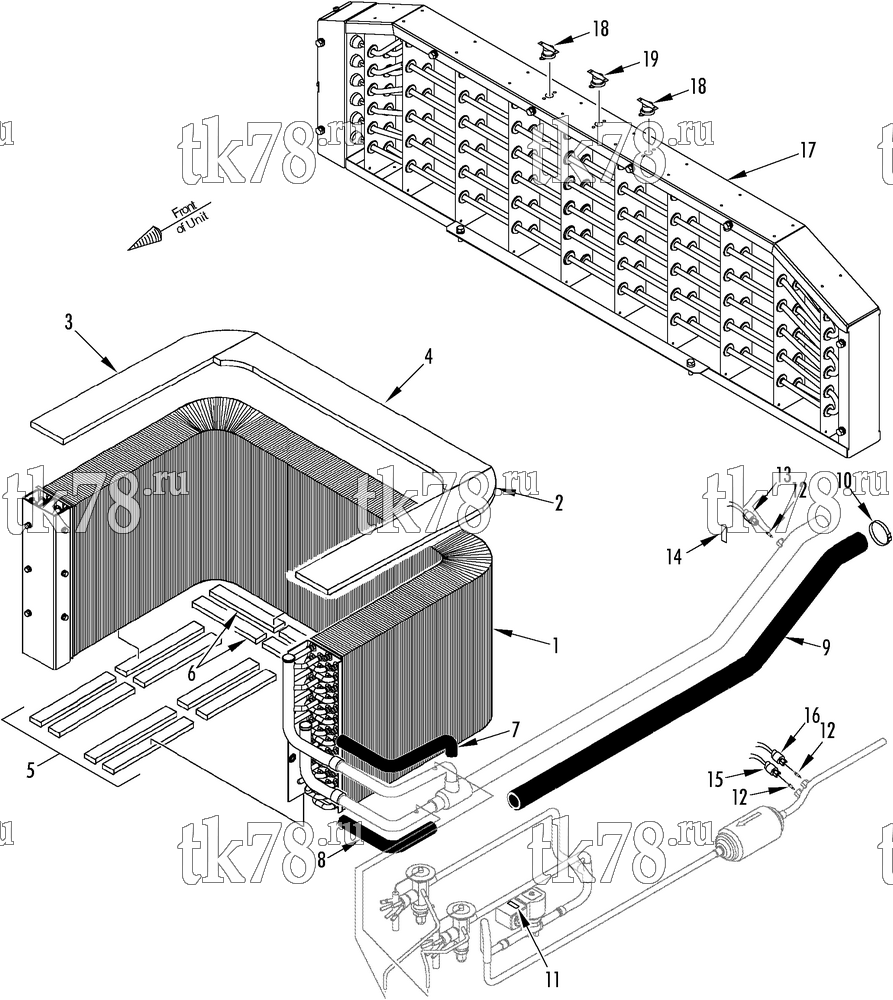

Установкa Thermo King схема EVAPORATOR COIL MOUNTING – 174C5
Обновление от: 6/23/13
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 67-1837 | COIL - evaporator | 1 | |
| 55-6994 | SCREW - coil | 14 | ||
| 55-6996 | LOCKWASHER | 14 | ||
| 55-7075 | FLATWASHER | 14 | ||
| 55-9553 | NUT - captive | 14 | ||
| 2 | 303-809 | INSULATION - expansion valve side | 1 | |
| 3 | 303-810 | INSULATION - coil | 1 | |
| 4 | 303-811 | INSULATION - center | 1 | |
| 5 | 303-812 | INSULATION - bottom | 8 | |
| 6 | 303-813 | INSULATION - bottom | 4 | |
| 7 | 33-3578 | INSULATION - suction tube | 1 | |
| 8 | 33-3579 | INSULATION - suction tube | 1 | |
| 9 | 33-3580 | INSULATION - suction tube | 1 | |
| 10 | 55-2331 | BANDWRAP - suction insulation | A/R | |
| 11 | 309-3216 | NAMEPLATE - Electrical | 1 | |
| 12 | 11-2886 | VALVE (Schrader) | 3 | |
| 11-7777 | CORE - valve | 1 | ||
| 13 | 44-4258 | SWITCH - lpco | 1 | |
| 14 | 309-3219 | NAMEPLATE - Electrical | 1 | |
| 15 | 304-1921 | SWITCH - hpco | 1 | |
| 16 | 41-2588 | SWITCH - pressure modulation | 1 | |
| 17 | 45-2312 | HEATER (10 kW) | 1 | |
| 18 | 41-3791 | SWITCH - temperature (90 deg C) | 2 | |
| 19 | 41-3939 | SWITCH - temperature (120 C) | 1 | |
| 55-9195 | SCREW - switch | 6 | ||
| 55-7750 | LOCKWASHER | 6 |
