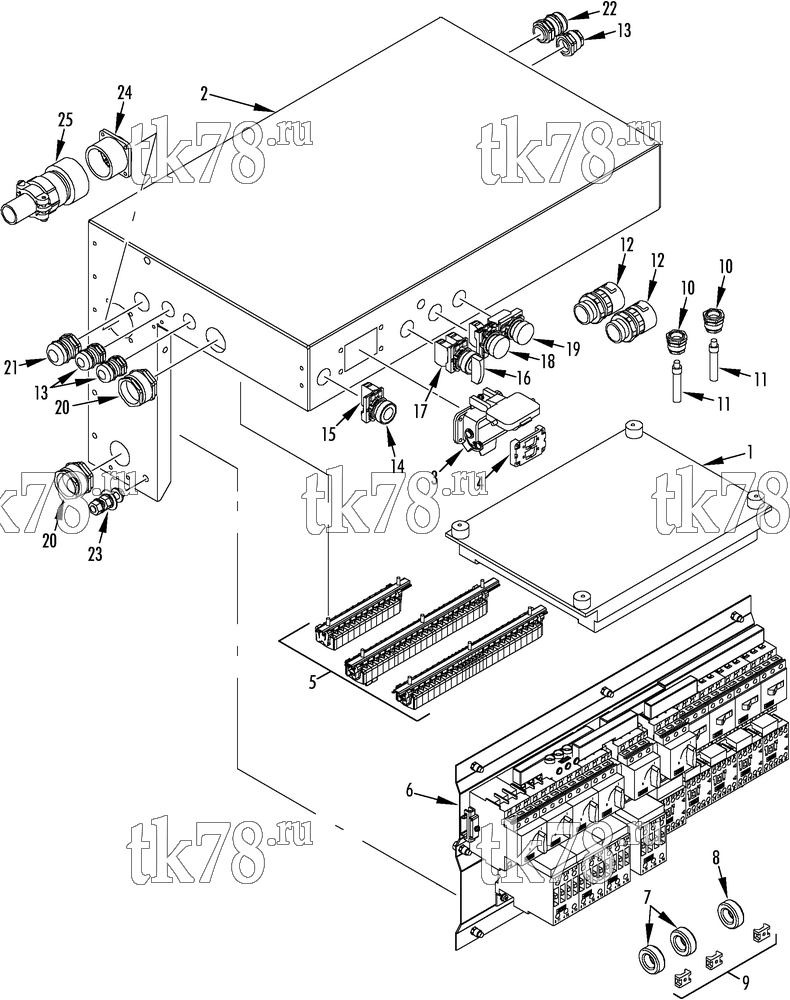

Установкa Thermo King схема CONTROL BOX – 174B9
Обновление от: 10/3/10
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 45-1933 | CONTROLLER - unit | 1 | |
| 2 | 92-768 | COVER - top (see 174B7) | 1 | |
| 3 | 41-4692 | HOUSING | 1 | |
| 4 | 41-4693 | PLATE | 1 | |
| 5 | NSS | BOARD - terminal (see 174B0) | 1 | |
| 6 | NSS | PANEL - contactor (see 174B8) | 1 | |
| 7 | 304-2593 | TRANSFORMER - current (15 amp, TEFM) | 1 | |
| 8 | 304-2594 | TRANSFORMER - current (10 amp, TCFM & TCOM) | 2 | |
| 9 | 99-3281 | MOUNT - bandwrap | 14 | |
| 55-2330 | BANDWRAP | 14 | ||
| 10 | 55-9999 | NUT - bushing | 2 | |
| 11 | 40-974 | KIT - sensor (graded) | 2 | |
|
40-974 OEM | Датчик температуры калиброванный | 8 770 ₽ |
|
|
10-40-974 | Датчик температуры калиброванный | 3 500 ₽ |
|
| 12 | 55-9994 | GLAND - harness | 2 | |
| 55-9993 | LOCKNUT | 2 | ||
| 13 | 55-9995 | GLAND - harness | 3 | |
| 55-9998 | LOCKNUT | 3 | ||
| 14 | 41-4686 | HEAD - switch control | 1 | |
| 15 | 41-4688 | SWITCH | 1 | |
| 16 | 41-4687 | HEAD - switch control | 1 | |
| 17 | 41-4689 | SWITCH | 1 | |
| 18 | 41-4690 | LIGHT - signal (red) | 1 | |
| 19 | 41-4691 | LIGHT - signal (green) | 1 | |
| 20 | 55-9996 | BUSHING - cable | 2 | |
| 51-101 | LOCKNUT | 2 | ||
| 21 | 55-9997 | BUSHING - cable | 1 | |
| 51-102 | LOCKNUT | 2 | ||
| 22 | 55-9992 | BUSHING - cable | 1 | |
| 23 | 51-104 | SCREW - ground | 1 | |
| 51-106 | FLATWASHER | 4 | ||
| 55-7378 | LOCKWASHER (internal tooth) | 1 | ||
| 51-105 | NUT | 2 | ||
| 24 | 41-4745 | CONNECTOR (male) | 1 | |
| 25 | 41-4730 | CONNECTOR (female) | 1 |
