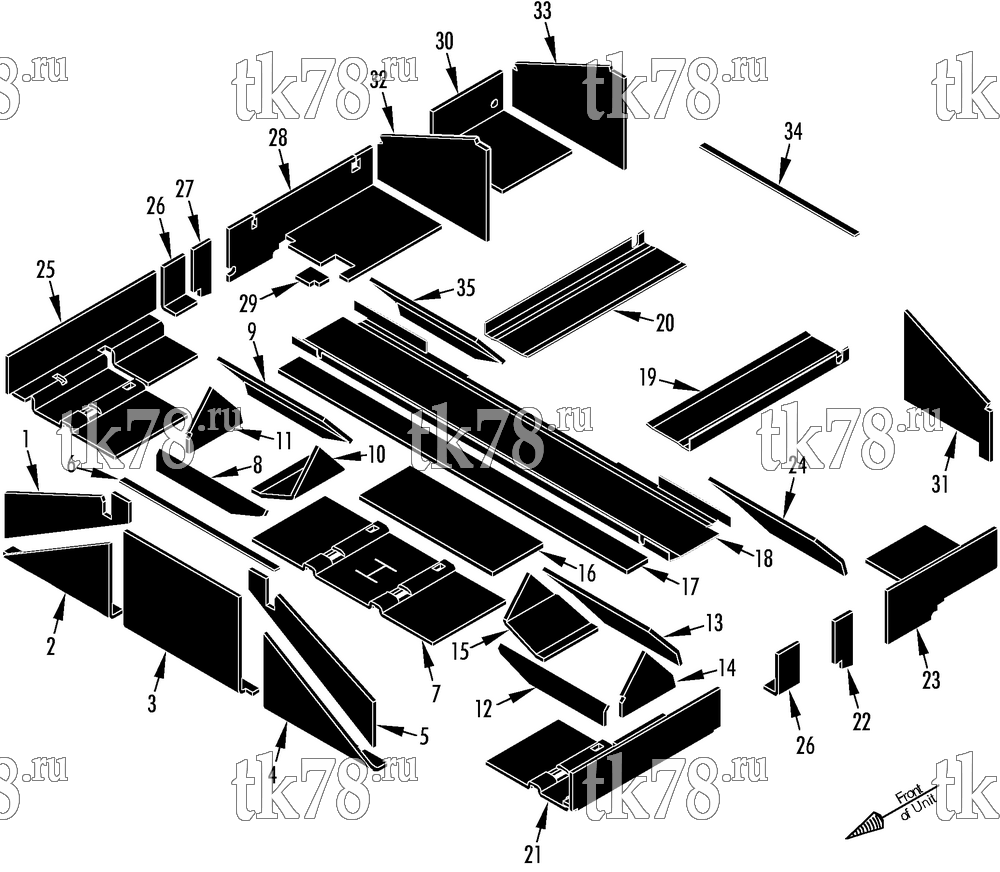

Установкa Thermo King схема INSULATION GROUP – 174A6
Обновление от: 4/9/04
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 33-3403 | INSULATION - front (top right) | 1 | |
| 2 | 33-3548 | INSULATION - front (bottom right) | 1 | |
| 3 | 33-3549 | INSULATION - front (center) | 1 | |
| 4 | 33-3550 | INSULATION - front (bottom left) | 1 | |
| 5 | 33-3407 | INSULATION - front (top left) | 1 | |
| 6 | 99-4976 | STRIP (neoprene, cut to 622 mm) | 1 | |
| 7 | 33-3551 | INSULATION - blower | 1 | |
| 8 | 33-3552 | INSULATION - back (right duct) | 1 | |
| 9 | 33-3553 | INSULATION - front (right duct) | 1 | |
| 10 | 33-3554 | INSULATION - duct (inboard) | 1 | |
| 11 | 33-3555 | INSULATION - duct (outboard) | 1 | |
| 12 | 33-3556 | INSULATION - front (left duct) | 1 | |
| 13 | 33-3557 | INSULATION - rear (left duct) | 1 | |
| 14 | 33-3558 | INSULATION - duct (outboard) | 1 | |
| 15 | 33-3559 | INSULATION - duct (inboard) | 1 | |
| 16 | 33-3560 | INSULATION - center | 1 | |
| 17 | 33-3561 | INSULATION - bottom | 1 | |
| 18 | 33-3401 | INSULATION - drain | 1 | |
| 19 | 33-3400 | INSULATION - drain (left) | 1 | |
| 20 | 33-3399 | INSULATION - drain (right) | 1 | |
| 21 | 33-3562 | INSULATION - blower (left) | 1 | |
| 22 | 33-3563 | INSULATION - side (left) | 1 | |
| 23 | 33-3564 | INSULATION - side (right rear) | 1 | |
| 24 | 33-3565 | INSULATION - front duct (outside) | 1 | |
| 25 | 33-3566 | INSULATION - side (right) | 1 | |
| 26 | 33-3410 | INSULATION - side | 2 | |
| 27 | 33-3567 | INSULATION (right 1) | 1 | |
| 28 | 33-3568 | INSULATION (right 2) | 1 | |
| 29 | 33-3414 | INSULATION | 1 | |
| 30 | 33-3412 | INSULATION - side (right 2) | 1 | |
| 31 | 33-3293 | INSULATION - wall (left) | 1 | |
| 32 | 33-3294 | INSULATION - wall (right) | 1 | |
| 33 | 33-3398 | INSULATION - wall (compressor) | 1 | |
| 34 | 99-7336 | STRIP - neoprene (0.12 x 0.8 x 50 ft) | A/R | |
| 35 | 33-3569 | INSULATION - front duct (outside) | 1 |
