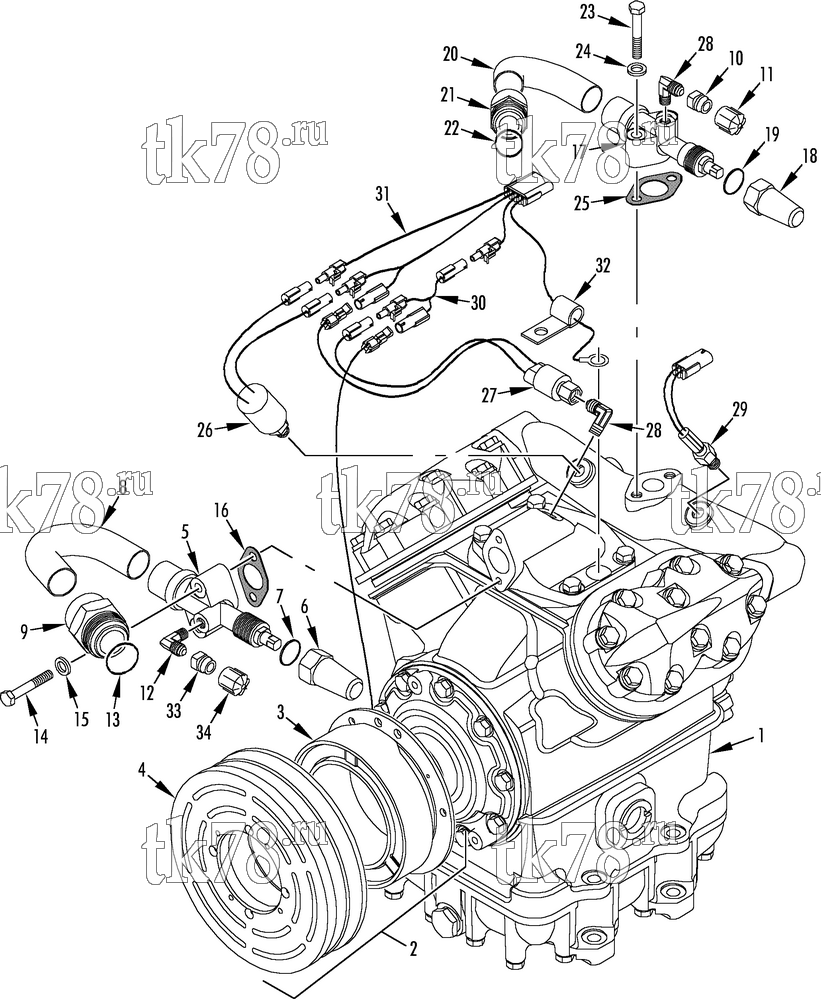

Установкa Thermo King схема COMPRESSOR GROUP (9180C29G11, KIT 719988) – 173E2
Обновление от: 12/16/09
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 102-916 | COMPRESSOR - X426 C5 (bus, see 230C5) | 1 | |
| 8102-916 | COMPRESSOR - X426 C5 (bus, reman, see 230C5) | 1 | ||
| 102-913 | COMPRESSOR - X426 C5 (subassembly, see 231A2) | 1 | ||
| 8102-913 | COMPRESSOR - X426 C5 (subassembly, reman, see 231A2) | 1 | ||
| 2 | 107-150 | KIT - clutch drive repair (clutch does not include pulley or field, see 153E7) | 1 | |
| 3 | 45-1849 | FIELD - clutch (24VDC) | 1 | |
| 4 | 77-1414 | PULLEY (3-3V grooves, 8.0 in od) | 1 | |
| 5 | 66-9576 | TUBE & VALVE - suction | 1 | |
| 66-3576 | VALVE - suction | 1 | ||
| 6 | 66-3015 | CAP - valve (brass, incl gasket) | 1 | |
| P-17-10806-10 | Крышка сервисного клапана, латунь, 05K/05G/06D | 3 000 ₽ |
|
|
|
10-66-3015 | Крышка сервисного клапана, латунь, X426/430/640 | 3 000 ₽ |
|
| 7 | 33-3007 | GASKET - cap | 1 | |
| 33-3007 OEM | О-ринг сервисного клапана, X426/430/640 | 130 ₽ |
|
|
| 8 | 66-9721 | TUBE - suction | 1 | |
| 9 | 55-4185 | ADAPTER | 1 | |
| 10 | 66-8086 | FITTING - discharge (R134a) | 1 | |
| 11 | 66-7182 | CAP (red, R134a) | 1 | |
| 12 | 55-466 | ELBOW | 2 | |
| 13 | 33-544 | O-RING | 1 | |
| 14 | 55-201 | SCREW - suction valve | 2 | |
| 15 | 55-895 | FLATWASHER | 2 | |
| 16 | 33-2541 | GASKET - suction valve | 1 | |
| 17 | 61-875 | TUBE & VALVE - discharge | 1 | |
| 66-2140 | VALVE - discharge | 1 | ||
| 18 | 66-3015 | CAP - valve (brass, incl gasket) | 1 | |
| P-17-10806-10 | Крышка сервисного клапана, латунь, 05K/05G/06D | 3 000 ₽ |
|
|
|
|
10-66-3015 | Крышка сервисного клапана, латунь, X426/430/640 | 3 000 ₽ |
|
| 19 | 33-3007 | GASKET - cap | 1 | |
| 33-3007 OEM | О-ринг сервисного клапана, X426/430/640 | 130 ₽ |
|
|
| 20 | 66-9383 | TUBE - discharge | 1 | |
| 21 | 55-3808 | ADAPTER | 1 | |
| 22 | 33-594 | O-RING | 1 | |
| 23 | 55-6776 | SCREW - discharge valve | 2 | |
| 24 | 55-6804 | WASHER - sealing | 2 | |
| 25 | 33-2805 | GASKET - discharge valve | 1 | |
|
33-2805 OEM | Прокладка коллектора армированная, X426/430 | 800 ₽ |
|
|
10-33-2805 | Прокладка коллектора армированная, X426/430 | 620 ₽ |
|
|
10-33-2546 | Прокладка коллектора, X426/430 | 340 ₽ |
|
|
PP-33-2805 | Прокладка коллектора, X426/430 | 50 ₽ |
|
| 26 | 41-1501 | SWITCH - hpco | 1 | |
| 41-1502 | SWITCH - only | 1 | ||
| 27 | 44-7893 | SWITCH - lpco | 1 | |
| 44-6263 | SWITCH - only | 1 | ||
| 28 | 55-308 | ELBOW | 2 | |
| 29 | 41-3345 | SENSOR - high temperature (connectors see 115D14) | 1 | |
| 30 | 41-2179 | HARNESS - compressor | 1 | |
| 31 | 41-1236 | HARNESS - compressor (for connectors see 115D14) | 1 | |
| 55-3024 | SCREW - ground | 1 | ||
| 55-2996 | LOCKWASHER | 1 | ||
| 32 | 55-5261 | CLAMP - harness | 3 | |
| 55-2239 | CLAMP - harness (0.375 dia) | 1 | ||
| 33 | 66-7180 | FITTING - suction (R134a) | 1 | |
| 34 | 66-7183 | CAP - fitting (blue, R134a) | 1 |
