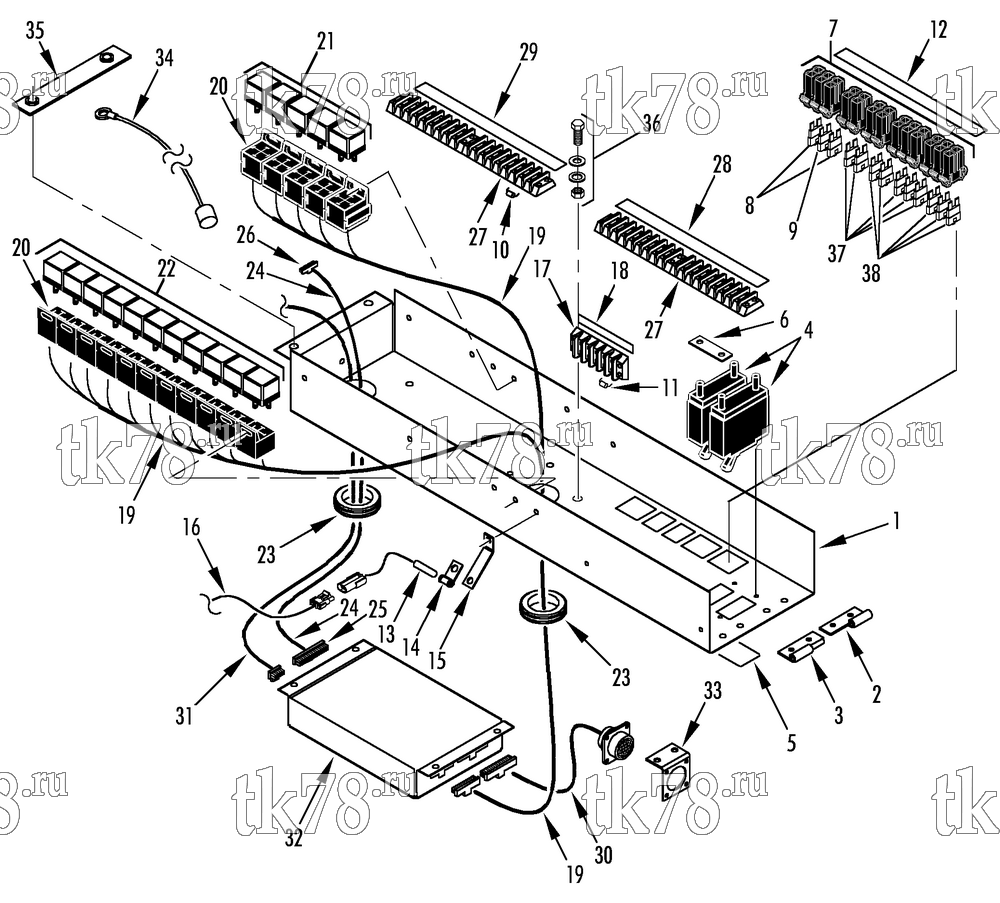

Установкa Thermo King схема CONTROL PANEL – 173E0
Обновление от: 10/11/05
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 91-9422 | PANEL - control | 1 | |
| 55-5206 | INSERT (10-32) | 4 | ||
| 55-5396 | SCREW - panel | 2 | ||
| 2 | 99-8056 | HINGE (female) | 1 | |
| 3 | 99-8057 | HINGE (male) | 1 | |
| 4 | 41-2455 | BREAKER - circuit (85 amp, manual reset) | 2 | |
| 5 | 91-8058 | MARKSTRIP - circuit breaker | 1 | |
| 6 | 44-9427 | JUMPER - circuit breaker | 1 | |
| 7 | 41-2973 | HOLDER - fuse | 13 | |
| 8 | 44-9758 | FUSE (10 amp) | 2 | |
|
10-44-9758 | Предохранитель 10 ампер 10 шт | 1 860 ₽ |
|
| 9 | 44-9344 | FUSE (15 amp) | 1 | |
|
10-44-9344 | Предохранитель 15 ампер 10 шт | 1 860 ₽ |
|
| 10 | 41-2122 | DIODE - clutch | 1 | |
| 44-5763 | DIODE | 1 | ||
| 11 | 44-6895 | DIODE - assembly | 1 | |
| 44-4776 | DIODE | 1 | ||
| 12 | 91-9427 | MARKSTRIP | 1 | |
| 13 | 41-7706 | SENSOR - temperature (return air) | 1 | |
| 14 | 55-5294 | CLAMP (0.187 dia) | 1 | |
| 15 | 91-6752 | BRACKET - sensor | 1 | |
| 16 | 41-1225 | HARNESS - sensor | 1 | |
| 17 | 44-2558 | BOARD - terminal | 1 | |
| 18 | 91-9426 | MARKSTRIP | 1 | |
| 19 | 41-4868 | HARNESS - mini relay (complete) | 1 | |
| 41-2975 | HARNESS (18-pin) | 1 | ||
| 41-650 | CONNECTOR (18 terminal, inline) | 1 | ||
| 41-2976 | HARNESS (22-pin) | 1 | ||
| 44-7884 | CONNECTOR - shroud (22-pin) | 1 | ||
| 55-9034 | CONNECTOR - liquid tite | 1 | ||
| 55-2636 | NUT - lock | 1 | ||
| 20 | 44-5537 | SOCKET - relay | 16 | |
| 55-5975 | SCREW - socket | 5 | ||
| 55-2001 | FLATWASHER | 10 | ||
| 55-2964 | LOCKWASHER | 5 | ||
| 55-2965 | NUT | 5 | ||
| 21 | 44-9392 | RELAY (dpst) | 5 | |
| 22 | 41-896 | RELAY (1pdt) | 11 | |
| 23 | 33-489 | GROMMET (1.25 id) | 2 | |
| 24 | 41-2974 | HARNESS (24-pin) | 1 | |
| 25 | 41-656 | CONNECTOR - inline (24 terminal) | 1 | |
| 26 | 44-7872 | CONNECTOR - tower (6-pin) | 1 | |
| 27 | 44-4551 | BOARD - terminal (14-pin) | 2 | |
| 28 | 91-9424 | MARKSTRIP | 1 | |
| 29 | 41-9425 | MARKSTRIP | 1 | |
| 30 | 41-1898 | HARNESS - diagnostic (assembly) | 1 | |
| 31 | 41-2977 | HARNESS (4-pin) | 1 | |
| 41-654 | CONNECTOR - inline (4 terminal) | 1 | ||
| 32 | 41-2098 | BOARD - pc (controller, see 144A1) | 1 | |
| 55-2995 | SCREW - board | 4 | ||
| 55-2001 | FLATWASHER | 4 | ||
| 33 | 91-8156 | BRACKET | 1 | |
| 34 | 41-243 | STRAP - door | 1 | |
| 35 | 92-732 | NUTSTRIP - panel | 1 | |
| 36 | 55-3000 | SCREW - ground | 1 | |
| 55-2001 | FLATWASHER | 2 | ||
| 55-2996 | LOCKWASHER (internal tooth) | 1 | ||
| 55-2964 | LOCKWASHER | 2 | ||
| 55-2965 | NUT | 2 | ||
| 37 | 41-2978 | FUSE (20 amp) | 1 | |
| 30-41-2978 | Предохранитель 32V 20А | 500 ₽ |
|
|
| 38 | 41-1771 | FUSE (30 amp) | 1 | |
| 30-41-1771 | Предохранитель 32V 30А | 460 ₽ |
|
