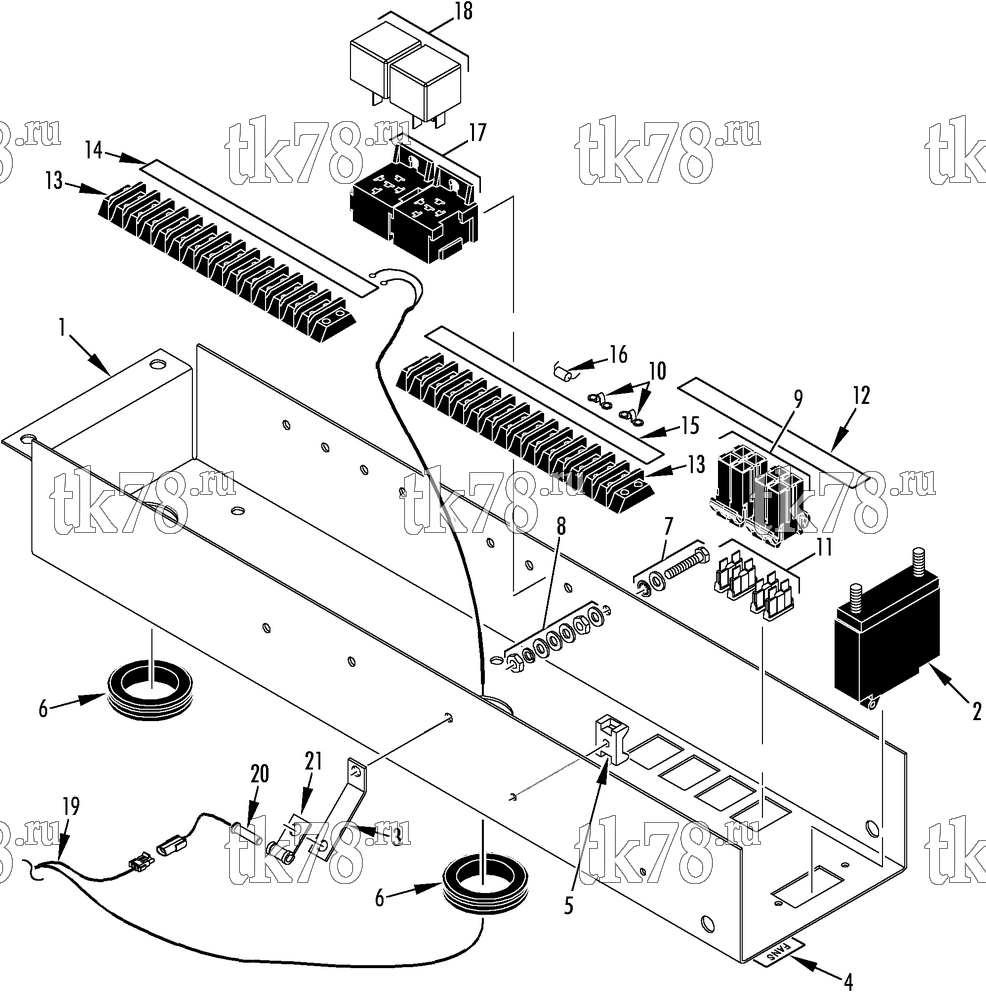

Установкa Thermo King схема CONTROL PANEL (MRTH-B N) – 171G0
Обновление от: 4/9/04
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 92-747 | PANEL - control | 1 | |
| 55-1587 | SCREW - panel (1/4-20 x 0.75) | 2 | ||
| 55-2977 | SCREW - panel (1/4-20 x 1.0) | 2 | ||
| 55-8718 | SPACER - tubular | 2 | ||
| 55-2086 | FLATWASHER | 4 | ||
| 55-1800 | LOCKWASHER | 4 | ||
| 2 | 41-2455 | BREAKER - circuit (85 amp) | 1 | |
| 55-2997 | SCREW - breaker | 2 | ||
| 55-3014 | LOCKWASHER | 2 | ||
| 55-3013 | FLATWASHER | 4 | ||
| 3 | 91-6752 | BRACKET - sensor | 1 | |
| 55-2995 | SCREW - bracket | 2 | ||
| 55-2964 | LOCKWASHER | 1 | ||
| 55-2001 | FLATWASHER | 2 | ||
| 55-2965 | NUT | 1 | ||
| 4 | 92-751 | MARKSTRIP - circuit breaker | 1 | |
| 5 | 99-3281 | MOUNT - cable tie | 2 | |
| 55-2260 | RIVET - switch | 2 | ||
| 6 | 33-489 | GROMMET (1.25 id) | 2 | |
| 7 | 55-3000 | SCREW - ground | 1 | |
| 55-2001 | FLATWASHER | 2 | ||
| 55-2964 | LOCKWASHER | 2 | ||
| 8 | 55-2965 | NUT | 2 | |
| 55-2996 | LOCKWASHER (internal tooth) | 2 | ||
| 9 | 41-2973 | HOLDER - fuse | 4 | |
| 41-3327 | TERMINAL - fuse holder (14 awg) | 4 | ||
| 10 | 44-3579 | STRIP - jumper | 2 | |
| 11 | 44-9344 | FUSE (15 amp) | 4 | |
|
10-44-9344 | Предохранитель 15 ампер 10 шт | 1 860 ₽ |
|
| 12 | 92-752 | MARKSTRIP | 1 | |
| 13 | 44-4551 | BOARD - terminal (14-pin) | 2 | |
| 55-4487 | SCREW - board | 4 | ||
| 55-3014 | LOCKWASHER | 4 | ||
| 55-3013 | FLATWASHER | 8 | ||
| 55-2999 | NUT | 4 | ||
| 14 | 92-748 | MARKSTRIP | 1 | |
| 15 | 92-749 | MARKSTRIP | 1 | |
| 16 | 41-2123 | DIODE - assembly | 1 | |
| 17 | 44-5537 | SOCKET - relay | 2 | |
| 55-5975 | SCREW - socket | 2 | ||
| 55-2001 | FLATWASHER | 8 | ||
| 55-2996 | LOCKWASHER | 4 | ||
| 55-2965 | NUT | 4 | ||
| 18 | 44-9392 | RELAY (1pst) | 2 | |
| 19 | 41-4043 | HARNESS - sensor, auxiliary (for connectors see 115D14) | 1 | |
| 20 | 41-7706 | SENSOR - temperature (return air) | 1 | |
| 21 | 55-5294 | CLAMP (0.187 dia) | 1 |
