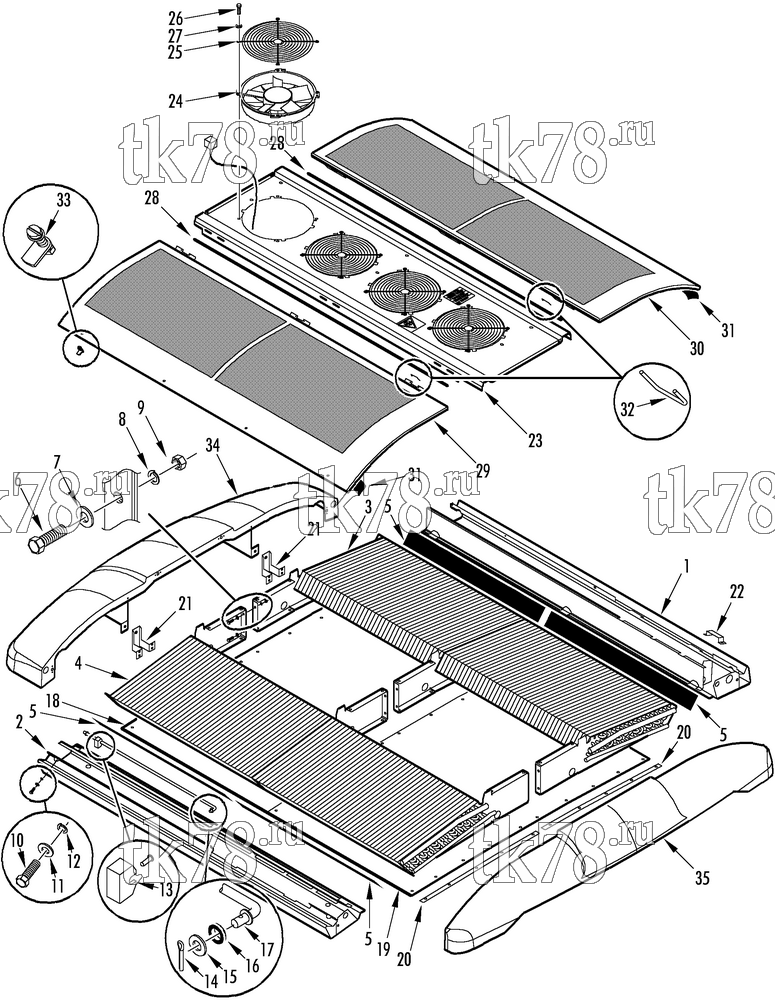

Установкa Thermo King схема CONDENSER STRUCTURAL & FANS – 171F9
Обновление от: 5/24/04
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 98-5732 | FRAME - condenser (right, 11.5 m) | 1 | |
| 2 | 98-5733 | FRAME - condenser (right, 11.5 m) | 1 | |
| 3 | 67-1810 | COIL - condenser (left) | 1 | |
| 4 | 67-1811 | COIL - condenser (right) | 1 | |
| 5 | 91-9883 | STRIP (neoprene, 2.585 ft) | 4 | |
| 6 | 55-7341 | SCREW - coil | 6 | |
| 7 | 55-7085 | FLATWASHER | 12 | |
| 8 | 55-7342 | LOCKWASHER | 6 | |
| 9 | 55-7825 | NUT | 6 | |
| 10 | 55-6994 | SCREW - frame to coil | 12 | |
| 11 | 55-7170 | LOCKWASHER | 12 | |
| 12 | 55-7075 | FLATWASHER | 12 | |
| 13 | 91-7386 | CLAMP - rod | 2 | |
| 55-5047 | RIVET - clamp | 2 | ||
| 14 | 55-3458 | PIN - cotter | 2 | |
| 15 | 55-6995 | FLATWASHER | 2 | |
| 16 | 33-314 | GROMMET - rod | 2 | |
| 17 | 92-1163 | ROD - cover | 2 | |
| 18 | 98-5629 | PLATE - bottom | 1 | |
| 19 | 98-5628 | PLATE - bottom | 1 | |
| 20 | 91-9880 | STRIP - plate | 2 | |
| 55-5130 | RIVET - strip | 30 | ||
| 21 | 91-9881 | BRACKET - holder | 2 | |
| 22 | 91-9879 | COVER - terminal board (see 155A7) | 1 | |
| 23 | 98-5625 | PLATE - top | 1 | |
| 55-6994 | SCREW - plate | 9 | ||
| 55-7170 | LOCKWASHER | 9 | ||
| 55-7075 | FLATWASHER | 9 | ||
| 55-7373 | NUT - captive | 9 | ||
| 24 | 78-1294 | FAN & MOTOR - condenser | 4 | |
| 78-1294 OEM | Вентилятор конденсатора | 19 470 ₽ |
|
|
|
10-33-2999 | Прокладка ГБЦ, Yanmar 482, SB-XXX/SB-III/SL/SLe | 13 280 ₽ |
|
| PP-33-2999 | Прокладка ГБЦ, Yanmar 482, SB-XXX/SB-III/SL/SLe | 4 600 ₽ |
|
|
| 25 | 98-5425 | GUARD - fan | 4 | |
| 26 | 55-2979 | SCREW - guard | 16 | |
| 27 | 55-2086 | FLATWASHER | 16 | |
| 28 | 99-7246 | STRIP (neoprene, 50 ft) | A/R | |
| 29 | 98-5927 | GRILLE - condenser (right) | 1 | |
| 30 | 98-5928 | GRILLE - condenser (left) | 1 | |
| 31 | 91-8893 | STRIP (neoprene, 1.8 wide x 4.5 long) | A/R | |
| 91-9883 | STRIP (neoprene, 2.0 wide x 2.58 long) | A/R | ||
| 32 | 91-9877 | ROD - grille | 3 | |
| 33 | 91-9874 | FASTENER - grille (see 155A8) | 8 | |
| 34 | 98-5734 | SPOILER - condenser (long) | 1 | |
| 91-7626 | NUTSTRIP | 4 | ||
| 55-3035 | RIVET - nutstrip | 8 | ||
| 55-3059 | NUT - captive | 8 | ||
| 55-3101 | RIVET - nut | 2 | ||
| 35 | 98-5735 | SPOILER - condenser (short) | 1 | |
| 91-7626 | NUTSTRIP | 6 | ||
| 55-3035 | RIVET - nutstrip | 12 | ||
| 36 | 41-4161 | HARNESS - condenser | 1 |
