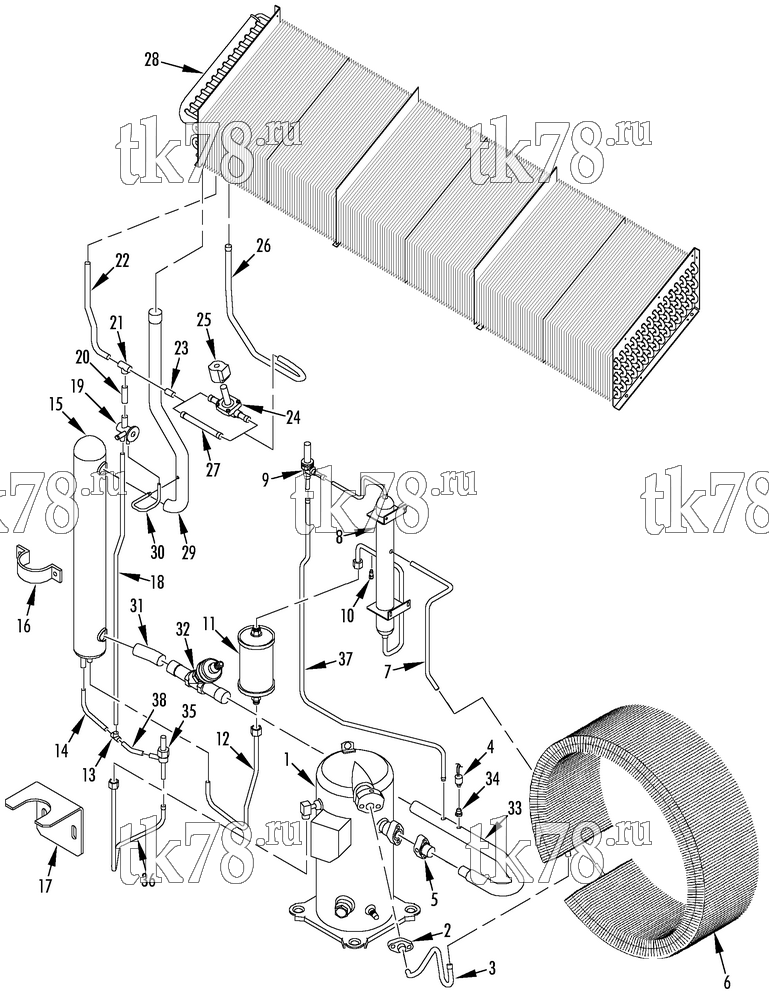

Установкa Thermo King схема REFRIGERATION COMPONENTS (FLANGED COMPRESSOR) – 170F4
Обновление от: 6/25/11
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 102-796 | COMPRESSOR - scroll (see 158B3) | 1 | |
| 2 | 61-176 | FLANGE - discharge (see 158B3) | 1 | |
| 3 | 61-175 | TUBE - elbow to valve | 1 | |
| 4 | 41-4473 | SWITCH - lpco | 1 | |
| 5 | 61-172 | FLANGE - suction (see 158B3) | 1 | |
| 6 | 60-285 | COIL - condenser (see 180D8) | 1 | |
| 7 | 61-168 | TUBE - coil to receiver tank | 1 | |
| 8 | 67-1792 | TANK - receiver (incl item 7) | 1 | |
| 55-6994 | SCREW - tank | 4 | ||
| 55-7075 | FLATWASHER | 8 | ||
| 55-9207 | WASHER (nylon) | 4 | ||
| 55-7042 | NUT | 4 | ||
| 9 | 60-326 | VALVE - solenoid (humidity control, see 166F6) | 1 | |
| 41-5460 | COIL - valve | 1 | ||
| 10 | 66-7392 | VALVE - relief | 1 | |
|
10-66-7392 | Предохранительный клапан | 3 480 ₽ |
|
| PP-66-7392 | Предохранительный клапан | 1 730 ₽ |
|
|
| 33-1015 | O-RING | 1 | ||
| 33-1015 OEM | О-ринг фильтра-осушителя, 3/8" | 240 ₽ |
|
|
| 11 | 66-9307 | DEHYDRATOR (o-ring seal) | 1 | |
| 33-3007 | O-RING | 2 | ||
| 33-3007 OEM | О-ринг сервисного клапана, X426/430/640 | 130 ₽ |
|
|
| 55-4390 | HANGER - dehydrator | 1 | ||
| 12 | 66-9931 | TUBE - dehydrator to exchanger | 1 | |
| 55-8267 | NUT - o-ring seal | 1 | ||
| 55-8268 | SHOULDER - o-ring seal | 1 | ||
| 13 | 55-3251 | TEE | 1 | |
| 14 | 61-1254 | TUBE - exchanger to tee | 1 | |
| 15 | 67-1028 | HEAT EXCHANGER | 1 | |
| 16 | 91-8468 | CLAMP - exchanger | 1 | |
| 17 | 91-8469 | BRACKET - exchanger | 1 | |
| 55-7172 | SCREW - bracket | 4 | ||
| 55-7075 | FLATWASHER | 4 | ||
| 18 | 61-1252 | TUBE - tee to expansion valve | 1 | |
| 19 | 61-443 | VALVE - expansion | 1 | |
| 20 | 66-9034 | TUBE - expansion valve to tee | 1 | |
| 21 | 55-2296 | TEE | 1 | |
| 22 | 61-1254 | TUBE - tee to evaporator | 1 | |
| 23 | 66-9035 | TUBE - liquid | 1 | |
| 24 | 66-9032 | VALVE - solenoid (dehumidity, see 147G12, optional) | 1 | |
| 60-323 | KIT - repair (Danfoss) | 1 | ||
| 25 | 41-3301 | COIL - valve | 1 | |
| 26 | 61-1250 | TUBE - valve to evaporator | 1 | |
| 27 | 66-9159 | TUBE (replaces valve) | 1 | |
| 28 | 67-1654 | COIL - evaporator (CSR 40SL units w/ heater door) | 1 | |
| 67-1715 | COIL - evaporator (CSR 40SL units w/o heater door, see 157D8) | 1 | ||
| 29 | 61-320 | TUBE - exchanger to evaporator | 1 | |
| 30 | 66-9036 | TUBE - equalizer | 1 | |
| 31 | 66-9933 | TUBE - exchanger to valve | 1 | |
| 32 | 66-9934 | VALVE - stepper | 1 | |
| 33 | 61-1248 | TUBE - modulation valve to flange | 1 | |
| 66-874 | FITTING - flare | 1 | ||
| 34 | 66-6607 | FITTING - low side | 1 | |
| 66-7183 | CAP - charge port (blue) | 1 | ||
| 66-8054 | ADAPTER | 1 | ||
| 35 | 66-9168 | VALVE - liquid injection (see 166F6) | 1 | |
| 36 | 61-1247 | TUBE - valve to compressor | 1 | |
| 55-8267 | NUT - o-ring seal | 1 | ||
| 55-8268 | SHOULDER - o-ring seal | 1 | ||
| 37 | 61-1249 | TUBE - coupling to valve | 1 | |
| 38 | 61-1253 | TUBE - tee to valve | 1 |
