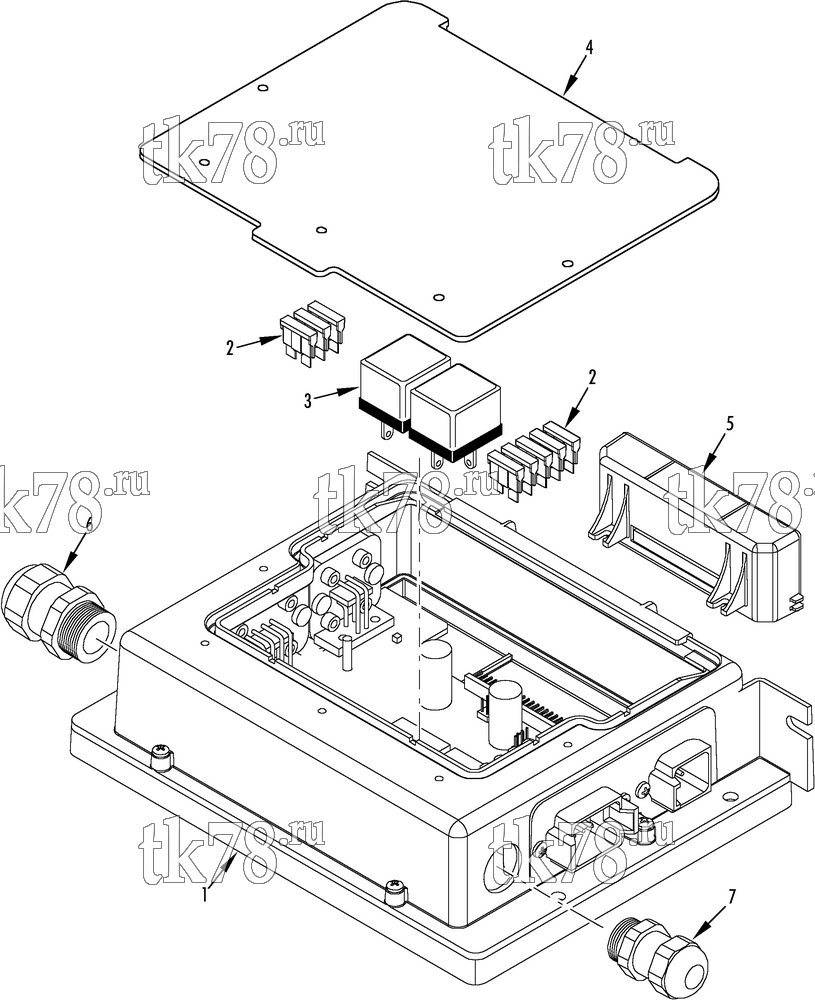

Установкa Thermo King схема CONTROL BOX – 170D5
Обновление от: 3/18/03
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 92-462 | BOX - control | 1 | |
| 2 | 41-1932 | FUSE (1 amp) | 1 | |
| 44-9758 | FUSE (10 amp) | 1 | ||
|
10-44-9758 | Предохранитель 10 ампер 10 шт | 1 860 ₽ |
|
| 44-9344 | FUSE (15 amp) | 6 | ||
|
10-44-9344 | Предохранитель 15 ампер 10 шт | 1 860 ₽ |
|
| 3 | 41-895 | RELAY (12V) | 2 | |
|
30-41-895 | Реле | 1 650 ₽ |
|
| 4 | 92-1668 | COVER - control box | 1 | |
| 55-9905 | SCREW - cover | 5 | ||
| 5 | 41-4001 | CONTROLLER | 1 | |
| 55-9905 | SCREW - controller | 5 | ||
| 6 | 55-6409 | CONNECTOR - harness grip | 1 | |
| 7 | 55-5900 | CONNECTOR - harness grip | 1 |
