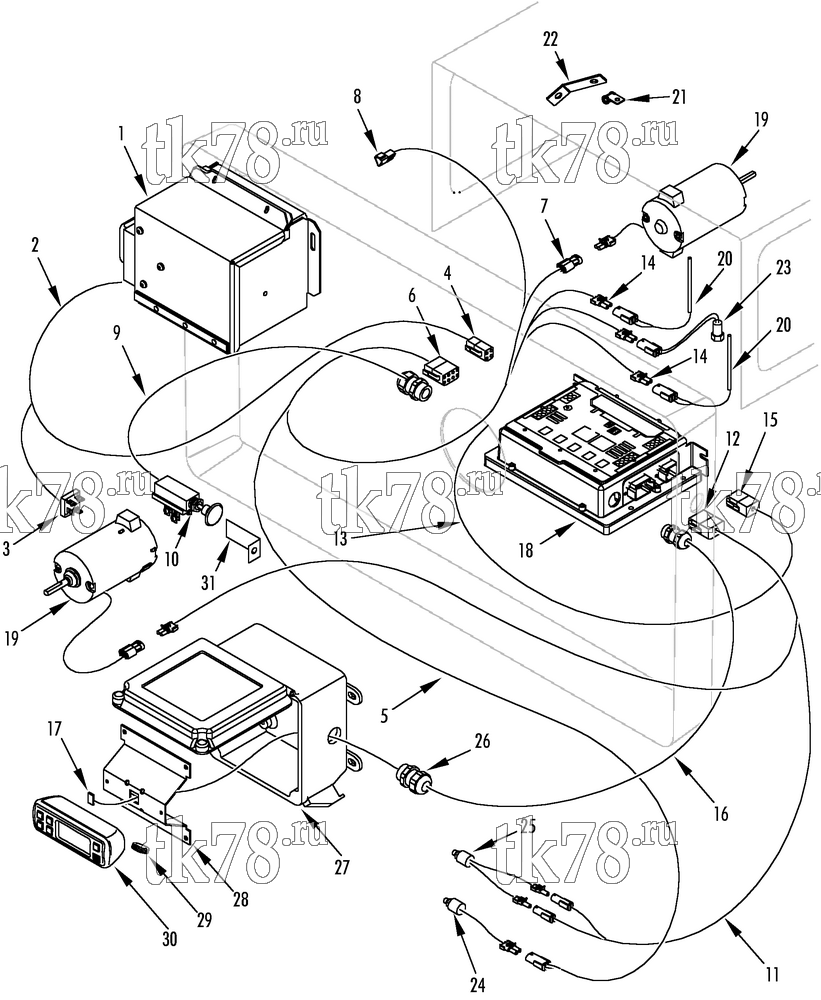

Установкa Thermo King схема ELECTRICAL COMPONENTS – 170D3
Обновление от: 10/4/01
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | NSS | BOX - high voltage (see 170D2) | 1 | |
| 2 | 41-4467 | HARNESS - powerpack | 1 | |
| 3 | 41-363 | RECTIFIER (50 amp) | 1 | |
| 4 | 44-8920 | PLUG - control box (6 terminal, see 112D9) | 1 | |
| 5 | 41-3070 | HARNESS - evaporator | 1 | |
| 41-4409 | TERMINAL - ring (red 8) | 1 | ||
| 44-2789 | TERMINAL - ring (blue 1/4, 14-16 ga) | 1 | ||
| 6 | 44-9903 | PLUG - control box (8 terminal, see 112D9) | 1 | |
| 7 | 44-7330 | CONNECTOR - shroud (1-pin, see 115D14) | 1 | |
| 44-5835 | CONNECTOR - shroud (2 terminal, see 115D14) | 1 | ||
| 44-5838 | CONNECTOR - tower (2-pin) | 1 | ||
| 8 | 44-9544 | RECEPTACLE - door switch (3 terminal, see 112D9) | 1 | |
| 9 | 41-3067 | HARNESS - shutdown switch | 1 | |
| 41-4468 | TERMINAL - ring (yellow 8) | 5 | ||
| 41-3069 | RECEPTACLE (1-pin) | 1 | ||
| 10 | 41-3068 | SWITCH - shutdown | 1 | |
| 11 | 41-4466 | HARNESS - condenser | 1 | |
| 12 | 44-9903 | PLUG - control box (8 terminal, see 115D14) | 1 | |
| 84-357 | TERMINAL - ring (blue) | 1 | ||
| 44-5835 | CONNECTOR - shroud (2 terminal, see 115D14) | 1 | ||
| 44-7330 | CONNECTOR - shroud (1-pin, see 115D14) | 2 | ||
| 44-5838 | CONNECTOR - tower (2-pin) | 1 | ||
| 13 | 41-3071 | HARNESS - sensor | 1 | |
| 14 | 44-9585 | PLUG - sensor (2 terminal, see 112D9) | 2 | |
| 15 | 44-8935 | PLUG - control box (4 terminal, see 112D9) | 1 | |
| 16 | 41-4465 | HARNESS - keypad display unit | 1 | |
| 17 | 41-3076 | PLUG - modular | 2 | |
| 18 | NSS | BOX - control (see 170D5) | 1 | |
| 19 | 44-8526 | MOTOR - condenser & evaporator (see 151E15 & 170D7) | 2 | |
|
10-44-8526 | Электромотор вентилятора 12V | 29 070 ₽ |
|
| 20 | 41-2589 | SENSOR - temperature (return air & coil) | 2 | |
| 21 | 99-4508 | BRACKET - sensor | 1 | |
| 22 | 55-3484 | CLAMP - sensor | 1 | |
| 55-2991 | SCREW - clamp | 1 | ||
| 55-2001 | FLATWASHER | 2 | ||
| 55-4560 | NUT | 1 | ||
| 23 | 44-8030 | SWITCH - lpco | 1 | |
|
44-8030 OEM | Выключатель аварийный низкого давления | 16 560 ₽ |
|
| 24 | 41-4308 | SWITCH - pressure (condenser fan) | 1 | |
| 25 | 41-3848 | SWITCH - hpco | 1 | |
| 203-393 | SEALER - thread | A/R | ||
| 26 | 55-5111 | CONNECTOR - harness grip | 1 | |
| 27 | 92-1670 | ENCLOSURE - keypad display unit | 1 | |
| 28 | 92-1671 | BRACKET - keypad display unit | 1 | |
| 55-3025 | SCREW - bracket | 4 | ||
| 55-2964 | LOCKWASHER | 4 | ||
| 55-2001 | FLATWASHER | 4 | ||
| 29 | 33-563 | GROMMET - harness | 1 | |
| 30 | 41-2997 | KEYPAD/DISPLAY - assembly | 1 | |
| 55-9902 | SCREW - keypad | 2 | ||
| 31 | 91-9573 | SHEILD - switch | 1 |
