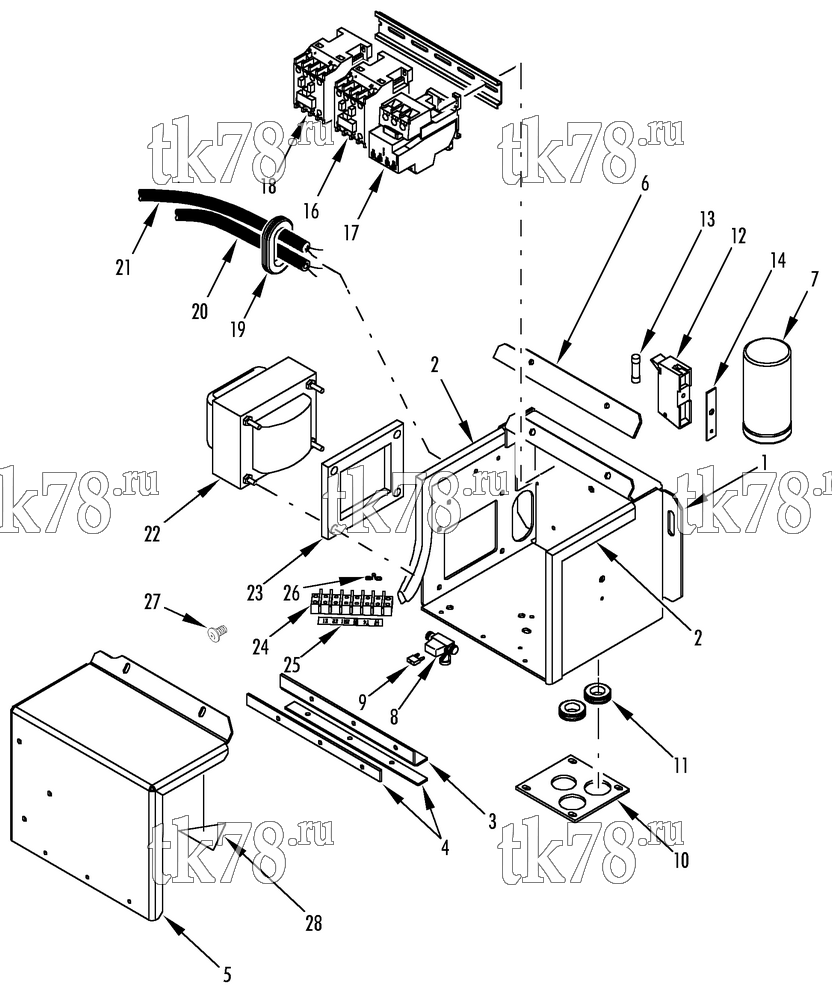

Установкa Thermo King схема HIGH VOLTAGE BOX – 170D2
Обновление от: 7/21/12
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 98-5281 | BOX - high voltage | 1 | |
| 2 | 33-2993 | GASKET - enclosure | 2 | |
| 3 | 91-8579 | HINGE - plastic | 1 | |
| 4 | 91-8578 | PLATE - hinge | 2 | |
| 55-3628 | RIVET - plate & hinge | 6 | ||
| 5 | 98-5554 | COVER - high voltage box | 1 | |
| 51-2082 | SCREW - cover | 2 | ||
| 55-3800 | LOCKWASHER | 2 | ||
| 55-2201 | FLATWASHER | 2 | ||
| 6 | 33-2994 | GASKET - flange | 1 | |
| 7 | 41-1873 | CAPACITOR | 1 | |
| 55-2331 | BANDWRAP - capacitor | 2 | ||
| 8 | 41-3074 | HOLDER - fuse | 1 | |
| 30-41-3074 | Гнездо предохранителя | 600 ₽ |
|
|
| 9 | 41-3080 | FUSE - mini (2 amp) | 1 | |
| 44-5763 | DIODE (3 amp) | 2 | ||
| 10 | 33-2992 | GASKET - motor | 1 | |
| 11 | 303-654 | GROMMET (5/8 id) | 2 | |
| 12 | 40-1004 | HOLDER - fuse | 1 | |
| 55-3511 | SCREW - holder | 1 | ||
| 55-3800 | LOCKWASHER | 1 | ||
| 13 | 41-1475 | FUSE (4 amp) | 1 | |
| 14 | 91-8577 | SUPPORT - fuse holder | 1 | |
| 55-1714 | RIVET - support | 2 | ||
| 15 | 91-8581 | RAIL - din | 1 | |
| 55-2989 | SCREW - rail | 2 | ||
| 55-3800 | LOCKWASHER | 1 | ||
| 16 | 41-736 | RELAY - overload | 1 | |
| 17 | 41-5629 | CONTACTOR - motor | 1 | |
| 18 | 41-1655 | CONTACTOR - heater | 1 | |
| 19 | 33-1275 | GROMMET - harness | 1 | |
| 20 | 41-4467 | HARNESS - control | 1 | |
| 21 | 45-1991 | CABLE - power | 1 | |
| 22 | 41-2424 | TRANSFORMER | 1 | |
| 55-2965 | NUT - transformer | 9 | ||
| 55-2964 | LOCKWASHER | 4 | ||
| 55-2001 | FLATWASHER | 6 | ||
| 23 | 33-2991 | GASKET - transformer | 1 | |
| 24 | 44-5350 | BOARD - terminal | 1 | |
| 25 | 91-9579 | MARKSTRIP | 1 | |
| 26 | 44-3579 | STRIP - jumper (terminal board) | 1 | |
| 27 | 55-3623 | SCREW - ground | 2 | |
| 55-3008 | WASHER - sealing | 4 | ||
| 55-2996 | LOCKWASHER | 5 | ||
| 55-2001 | FLATWASHER | 6 | ||
| 55-2965 | NUT | 9 | ||
| 28 | 99-7834 | NAMEPLATE - caution | 1 |
