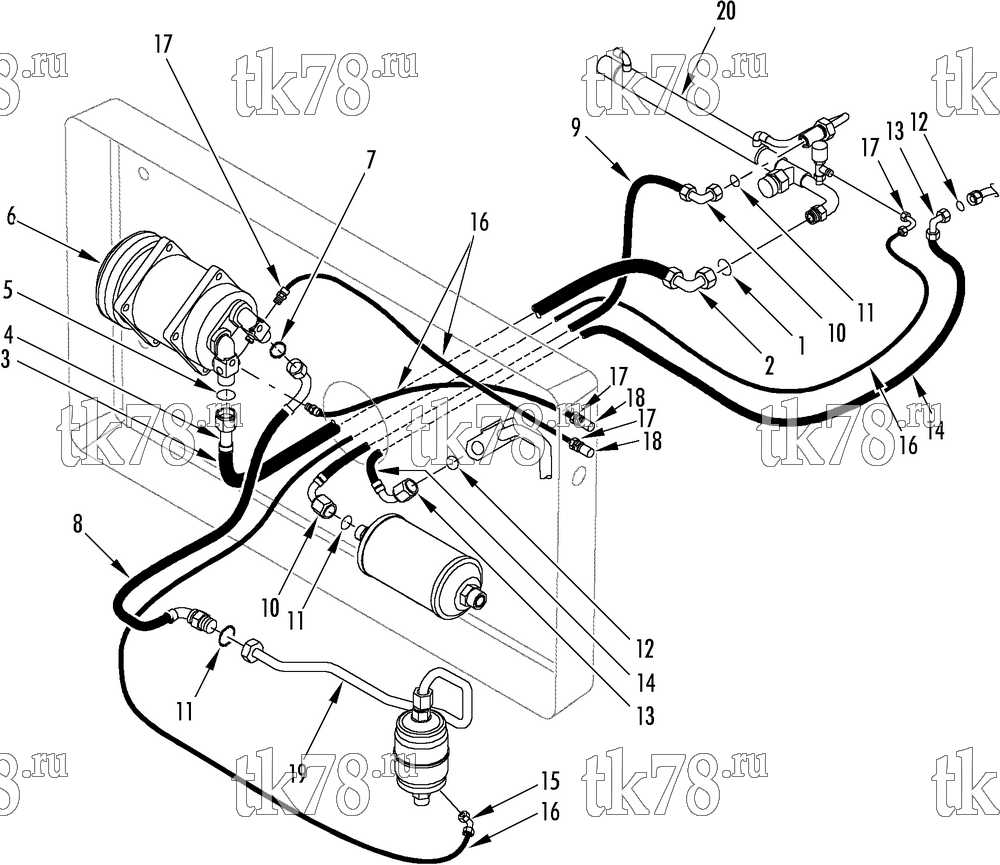

Установкa Thermo King схема HOSE GROUP – 170D1
Обновление от: 8/31/13
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 33-2115 | O-RING - suction (#10) | 1 | |
| 2 | 51-2448 | FITTING - o-ring seal (90 deg, #10) | 1 | |
| 3 | 67-1710 | HOSE - suction (#10, see 165D6) | A/R | |
| 4 | 51-2443 | FITTING - straight (tube-O, #10 hose x #10 fitting) | 1 | |
| 5 | 33-672 | O-RING (#10, tube-O) | 1 | |
|
10-33-672 | Прокладка компрессора Regulator | 410 ₽ |
|
| 33-672 OEM | Прокладка компрессора Regulator | 80 ₽ |
|
|
| 6 | 102-1028 | COMPRESSOR - 15XD (see 169C2) | 1 | |
| 7 | 33-2350 | O-RING (#8 tube) | 1 | |
| 8 | 66-7525 | HOSE - discharge | 1 | |
| 9 | 67-1709 | HOSE - liquid (#8, see 165D6) | A/R | |
| 10 | 51-2423 | FITTING - elbow (o-ring seal, #8) | 2 | |
| 11 | 33-566 | O-RING (#8) | 3 | |
| 12 | 33-1015 | O-RING (#6) | 2 | |
| 33-1015 OEM | О-ринг фильтра-осушителя, 3/8" | 240 ₽ |
|
|
| 13 | 51-2436 | FITTING - elbow (#6) | 2 | |
| 14 | 67-1708 | HOSE - defrost (#6, see 165D6) | A/R | |
| 15 | 51-2454 | FITTING - 45 deg (1/4 flare, #4 hose) | 1 | |
| 16 | 67-1782 | HOSE - oil return (#4) | A/R | |
| 17 | 51-2417 | FITTING - elbow (90 flare) | 3 | |
| 18 | 66-1242 | FITTING - bulkhead | 2 | |
| 19 | NSS | TUBE - condenser refrigeration (see 170D4) | 1 | |
| 20 | NSS | TUBE - evaporator refrigeration (see 170D6) | 1 |
