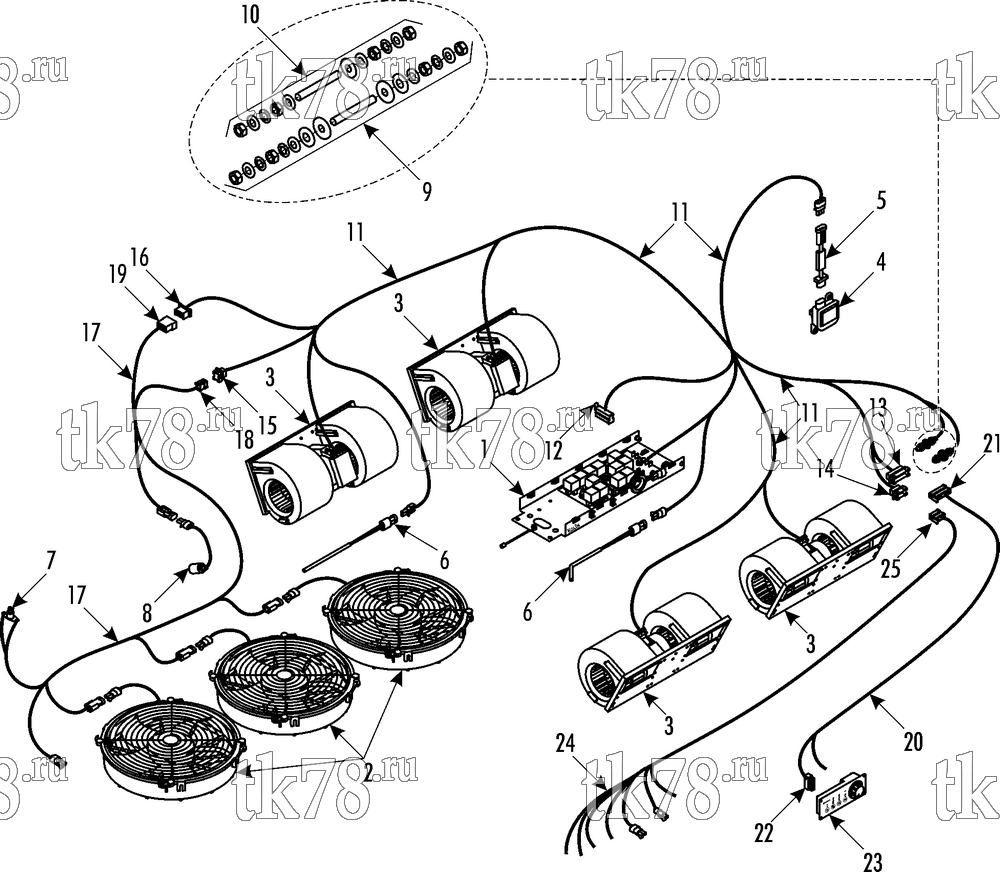

Установкa Thermo King схема ELECTRICAL COMPONENTS (ClimaAIRE I - 1012) – 170C2
Обновление от: 8/22/10
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | NSS | CONTROL PANEL (see 170C6) | 1 | |
| 2 | NSS | FAN (see 184E7 or 165F5) | 3 | |
| 3 | 78-1297 | BLOWER | 4 | |
| 55-7696 | SCREW - blower | 20 | ||
| 55-7031 | LOCKWASHER | 20 | ||
| 55-7697 | FLATWASHER | 20 | ||
| 4 | 41-3255 | SERVOMOTOR (unit w/ electrical fresh air, 11/05 & after) | 1 | |
| 5 | 41-7190 | CONTROLLER - servomotor (unit w/ electrical fresh air, 11/05 & after) | 1 | |
| 41-2420 | MOTOR - geared (unit w/ electrical fresh air, before 11/05) | 1 | ||
| 6 | 41-4157 | SENSOR - temperature | 2 | |
| 7 | 44-3292 | SWITCH - thermostat | 1 | |
| 55-7664 | SCREW - switch | 2 | ||
| 55-2202 | LOCKWASHER | 2 | ||
| 55-2201 | FLATWASHER | 2 | ||
| 55-8120 | FLATWASHER (nylon) | 2 | ||
| 55-7866 | NUT - captive | 2 | ||
| 8 | 41-5220 | SWITCH - hpco | 1 | |
| 9 | 55-9367 | STUD - positive (M8) | 1 | |
| 55-8631 | WASHER (nylon w/ shoulder) | 1 | ||
| 55-8693 | WASHER (nylon) | 1 | ||
| 55-448 | FLATWASHER | 2 | ||
| 55-8955 | FLATWASHER | 4 | ||
| 55-3238 | LOCKWASHER | 3 | ||
| 305-1653 | NUT | 4 | ||
| 10 | 55-9367 | STUD - negative (M8) | 1 | |
| 55-8568 | LOCKWASHER | 1 | ||
| 55-8955 | FLATWASHER | 4 | ||
| 55-3238 | LOCKWASHER | 2 | ||
| 305-1653 | NUT | 4 | ||
| 11 | 41-7926 | HARNESS - evaporator (for connectors see 115D14, 7/02 & after) | 1 | |
| 41-4158 | HARNESS - evaporator (for connectors see 115D14, before 7/02) | 1 | ||
| 12 | 41-3856 | CONNECTOR (18-pin, female) | 1 | |
| 13 | 41-2772 | CONNECTOR (18-pin, male) | 1 | |
| 14 | 41-4054 | CONNECTOR (10-pin, male) | 1 | |
| 15 | 41-4055 | CONNECTOR (6-pin, male) | 1 | |
| 16 | 41-3862 | CONNECTOR (6-pin) | 1 | |
| 17 | 41-5408 | HARNESS - condenser (for connectors see 115D14, 7/02 & after) | 1 | |
| 41-4121 | HARNESS - condenser (for connectors see 115D14, before 7/02) | 1 | ||
| 18 | 41-2767 | CONNECTOR (6-pin, female) | 1 | |
| 19 | 41-3967 | CONNECTOR (6-pin, 7/02 & after) | 1 | |
| 41-3855 | CONNECTOR (10-pin, female, before 7/02) | 1 | ||
| 20 | 41-4512 | HARNESS - control panel to ClimaAIRE I (18 m) | 1 | |
| 41-4313 | HARNESS - control panel to ClimaAIRE I (12 m) | 1 | ||
| 21 | 41-3856 | CONNECTOR (18-pin, female) | 1 | |
| 22 | 41-661 | CONNECTOR - in-line (14 terminal) | 1 | |
| 23 | 41-7211 | ClimaAIRE I - assembly | 1 | |
| 24 | 41-4509 | HARNESS - power pack (12 m, for connectors see 115D14) | 1 | |
| 41-4508 | HARNESS - power pack (8.3 m, for connectors see 115D14) | 1 | ||
| 25 | 41-3855 | CONNECTOR (10-pin, female) | 1 |
