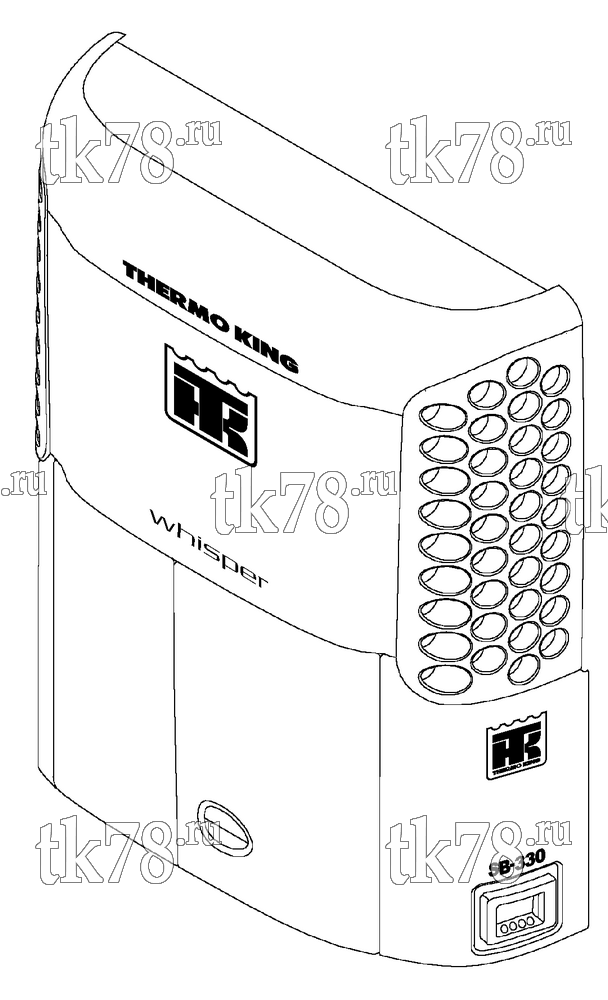

Установкa Thermo King схема SB-330 & SB-330 RR 30 REFERENCE SHEET – 16U16
Обновление от: 6/21/12
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 901706 | System - SB-330 30 | 6/12 | ||
| 069097 | SB-330 30 | 6/12 | ||
| 002016 | Painted Grille | 6/12 | ||
| 002020 | Chrome Grille | 6/12 | ||
| 002070 | Fresh Air Exchanger | 6/12 | ||
| 002222 | Fuel Tank - 454 Liter | 6/12 | ||
| 002240 | Fuel Tank - 50 Gallon AL 22 Dia | 6/12 | ||
| 069099 | Fuel Tank - 50 Gallon AL 22 Dia, Polished | 4/11 | ||
| 002241 | Fuel Tank - 50 Gallon AL 22 Dia | 6/12 | ||
| 002242 | Fuel Tank - 50 Gallon AL 22 Dia | 6/12 | ||
| 002243 | Fuel Tank - 110 Gallon AL 22 Dia | 6/12 | ||
| 002244 | Fuel Tank - 50 Gallon AL 22 Dia, Anti-Siphon | 6/12 | ||
| 002245 | Fuel Tank - 50 Gallon AL 22 Dia, Arctic Option | 6/12 | ||
| 002247 | Fuel Tank - 120 Gallon AL 22 Dia | 6/12 | ||
| 002248 | Fuel Tank - 120 Gallon AL 22 Dia, 2 fill | 6/12 | ||
| 002249 | Fuel Tank - 75 Gallon AL 22 Dia | 6/12 | ||
| 002259 | Fuel Tank - 120 Gallon AL 22 Dia | 6/12 | ||
| 048678 | Frost Plug Heater | 6/12 | ||
| 069041 | SB Plus Whisper | 6/12 | ||
| 069065 | Fuel Heater, Electric | 6/12 | ||
| 069069 | Quick Oil Drain Connector | 6/12 | ||
| 069077 | Fuel Filter & Heater RBC/TOFC | 6/12 | ||
| 069079 | Smooth Battery Cables | 6/12 | ||
| 069080 | Compound Gauge W/ETV | 6/12 | ||
| 069081 | Muffler Rail | 6/12 | ||
| 069084 | DRC RR Package | 6/12 | ||
| 069085 | TOFC RR Package | 6/12 | ||
| 069086 | Battery Holddown Heavy Duty | 6/12 | ||
| 069087 | RBC RR Package | 6/12 | ||
| 069091 | iBox SR-3 3rd Party | 6/12 | ||
| 069116 | Remote Controller | 6/12 | ||
| 069122 | Alternator - 65 Amp | 6/12 | ||
| 069142 | Controller Chinese | 6/12 | ||
| 069143 | REB iBox | 6/12 | ||
| 069144 | REB TracKing Cellular | 6/12 | ||
| 069148 | REB (Radio Expansion Board) | 6/12 | ||
| 069150 | Fresh Air Exchanger | 6/12 | ||
| 069151 | Fresh Air Exchanger | 6/12 | ||
| 069155 | Fuel Tank - 50 Gallon AL 18 Dia | 6/12 | ||
| 069156 | Fuel Tank - 30 Gallon AL 18 Dia | 6/12 | ||
| 069163 | RR Performance | 6/12 | ||
| 069164 | WPAM Door Switch | 6/12 | ||
| 069168 | CargoLink Door Switch | 6/12 | ||
| 069170 | CargoLink Door Switch | 6/12 | ||
| 069172 | CargoLink Door Switch | 6/12 | ||
| 700248 | ERC-1 | 6/12 | ||
| 700250 | Door Switch | 6/12 | ||
| 701288 | Status Display | 6/12 | ||
| 701336 | Status Display, Flush Mount | 6/12 | ||
| 701874 | Trac-King GPRS SR-3 (TSA) | 4/11 | ||
| 701968 | Trac-King 2-way/1-way | 6/12 | ||
| 702131 | Fuel Display | 6/12 | ||
| 702330 | TracKing GPRS SR-2/3 (TSA) | 6/12 | ||
| 702390 | Status Display | 4/11 | ||
| 702414 | USFLS Harness | 4/11 | ||
| 702034 | iBox SR-3 3rd Party | 4/11 | ||
| 720491 | HMI Sensor - 10 ft | 4/11 | ||
| 720492 | HMI Sensor - 20 ft | 4/11 | ||
| 720493 | HMI Sensor - 40 ft | 4/11 | ||
| 720494 | HMI Sensor - 60 ft | 4/11 | ||
| 720495 | HMI Sensor - 80 ft | 4/11 | ||
| 702575 | HMI Sensor - 100 ft | 6/12 | ||
| 811053 | Kit - Installation Box | 4/11 | ||
| 069147 | ADD REB: GPS+WIFI | 1 | ||
| 069149 | ADD REB: CELL+GPS+WIFI | 1 | ||
| 069146 | ADD REB: IBOX+CELL+GPS+T-MOB | 1 | ||
| 069160 | ADD TANK 50 GAL AL 22DIA USF | 1 | ||
| 069162 | ADD TANK 110 GAL AL 22DIA US | 1 | ||
| 702977 | KIT USFLS FOR 22DIA TANKS | 1 | ||
| 702978 | KIT USFLS FOR 18DIA TANKS | 1 |
