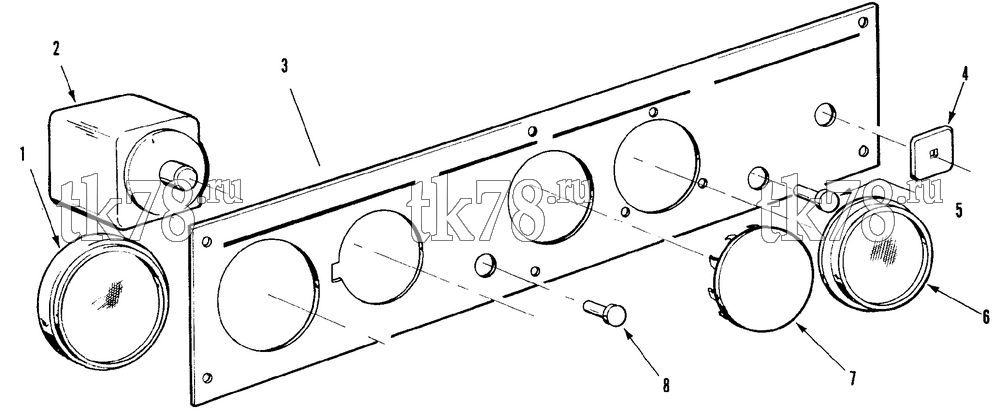

Установкa Thermo King схема PANEL GAUGES & CONTROL – 16E8
Обновление от: 1/18/12
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 61-3467 | THERMOMETER | 1 | |
|
10-61-3467 | Термометр | 15 250 ₽ |
|
| 66-1153 | LENS | 1 | ||
| 33-2430 | GASKET - lens (use on plastic body thermometer) | 1 | ||
| 33-666 | GASKET - lens (used on metal body thermometer) | 1 | ||
| 41-2590 | THERMOMETER - digital LED (F) | 1 | ||
| 44-5234 | SENSOR (10 ft) | 1 | ||
|
10-44-5234 | Сенсор | 14 130 ₽ |
|
| 55-2731 | SCREW - thermometer | 3 | ||
| 55-1516 | NUT | 3 | ||
| 2 | 45-1580 | THERMOSTAT | 1 | |
| 55-111 | SCREW - thermostat | 3 | ||
| 3 | 99-2331 | PANEL | 1 | |
| 55-2821 | SCREW - panel | 6 | ||
| 4 | 66-1187 | VALVE - hand | 1 | |
| 5 | 99-260 | CABLE - control (defrost shutter) | 1 | |
| 6 | 44-5585 | HOURMETER | 1 | |
| 55-1508 | SCREW - hourmeter | 3 | ||
| 7 | 55-3273 | PLUG - button | 1 | |
| 8 | 99-2333 | CABLE | 1 |
