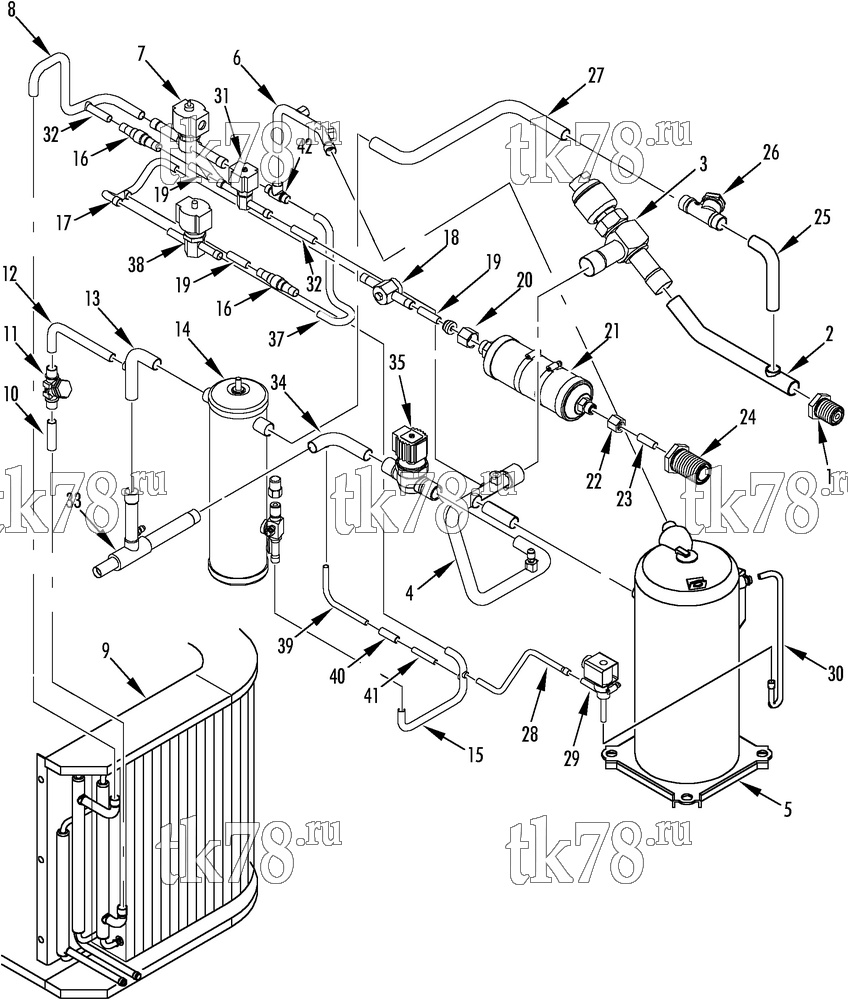

Установкa Thermo King схема CONDENSER REFRIGERATION – 169E4
Обновление от: 8/14/11
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 55-7537 | ADAPTER - o-ring seal (#20) | 1 | |
| 55-6838 | NUT - shoulder | 1 | ||
| 2 | 61-1167 | TUBE - adapter to stepper valve | 1 | |
| 3 | 61-1168 | VALVE - motor stepper (12VDC) | 1 | |
| 51-172 | BUSHING (outlet) | 1 | ||
| 55-9844 | BUSHING (inlet) | 1 | ||
| 4 | 61-1169 | TUBE - valve to compressor | 1 | |
| 66-4553 | FITTING - saddle | 2 | ||
| 5 | 102-926 | COMPRESSOR - scroll (hermetic, see 169E5) | 1 | |
| 6 | 61-1170 | TUBE - compressor to tee | 1 | |
| 99-3060 | FITTING - saddle | 1 | ||
| 66-4139 | FITTING - saddle | 2 | ||
| 7 | 66-6903 | VALVE - discharge (Y1) | 1 | |
| 55-3029 | SCREW - valve | 2 | ||
| 55-2202 | LOCKWASHER | 2 | ||
| 8 | 61-1171 | TUBE - valve to cool | 1 | |
| 9 | 67-1783 | COIL - condenser (see 169E6) | 1 | |
| 10 | 61-1172 | TUBE - coil to check valve | 1 | |
| 11 | 66-3644 | VALVE - check | 1 | |
| 12 | 61-1173 | TUBE - valve to receiver | 1 | |
| 13 | 61-1174 | TUBE - receiver to pressure valve | 1 | |
| 14 | 67-1784 | TANK - receiver | 1 | |
| 55-3300 | NUT - tank | 1 | ||
| 15 | 61-1175 | TUBE - receiver to check valve | 1 | |
| 16 | 66-5722 | VALVE - check | 2 | |
| 17 | 61-1176 | TUBE | 1 | |
| 18 | 66-1188 | INDICATOR - liquid | 1 | |
| 19 | 61-1177 | TUBE - indicator to dehydrator | 1 | |
| 20 | 55-6839 | SHOULDER - o-ring | 1 | |
| 55-6396 | NUT - shoulder | 1 | ||
| 21 | 61-1178 | DEHYDRATOR | 1 | |
| 22 | 55-6837 | SHOULDER - o-ring | 1 | |
| 55-6838 | NUT - shoulder | 1 | ||
| 23 | 61-1179 | TUBE - dehydrator to adapter | 1 | |
| 24 | 55-9843 | ADAPTER - discharge (#16) | 1 | |
| 55-6396 | NUT - shoulder | 1 | ||
| 25 | 61-1180 | TUBE - suction to check valve | 1 | |
| 26 | 66-6179 | VALVE - check | 1 | |
| 27 | 61-1181 | TUBE - valve to receiver tank | 1 | |
| 28 | 61-1182 | TUBE - liquid injection | 1 | |
| 29 | 60-327 | TUBE - liquid injection (less coil, DOCL1) | 1 | |
| 41-4357 | COIL - valve (12VDC) | 1 | ||
| 30 | 61-1183 | TUBE - valve to compressor | 1 | |
| 31 | 66-6102 | VALVE - solenoid (Y14) | 1 | |
| 55-3029 | SCREW - valve | 2 | ||
| 55-2202 | LOCKWASHER | 2 | ||
| 32 | 61-1184 | TUBE - valve to suction tube | 2 | |
| 33 | 61-1185 | VALVE - pressure regulator | 1 | |
| 34 | 61-1186 | TUBE - regulator to valve | 1 | |
| 35 | 61-1187 | VALVE - solenoid (12VDC) | 1 | |
| 55-3029 | SCREW - valve | 2 | ||
| 55-2202 | LOCKWASHER | 2 | ||
| 36 | 61-1188 | TUBE | 1 | |
| 37 | 61-1189 | TUBE | 1 | |
| 38 | 61-3285 | VALVE (Y3) | 1 | |
| 55-3029 | SCREW - valve | 2 | ||
| 55-2202 | LOCKWASHER | 2 | ||
| 39 | 61-1190 | TUBE - valve to orifice | 1 | |
| 40 | 61-1191 | ORIFICE | 1 | |
| 41 | 61-1192 | TUBE - orifice to tube | 1 | |
| 42 | 55-1252 | TEE | 1 |
