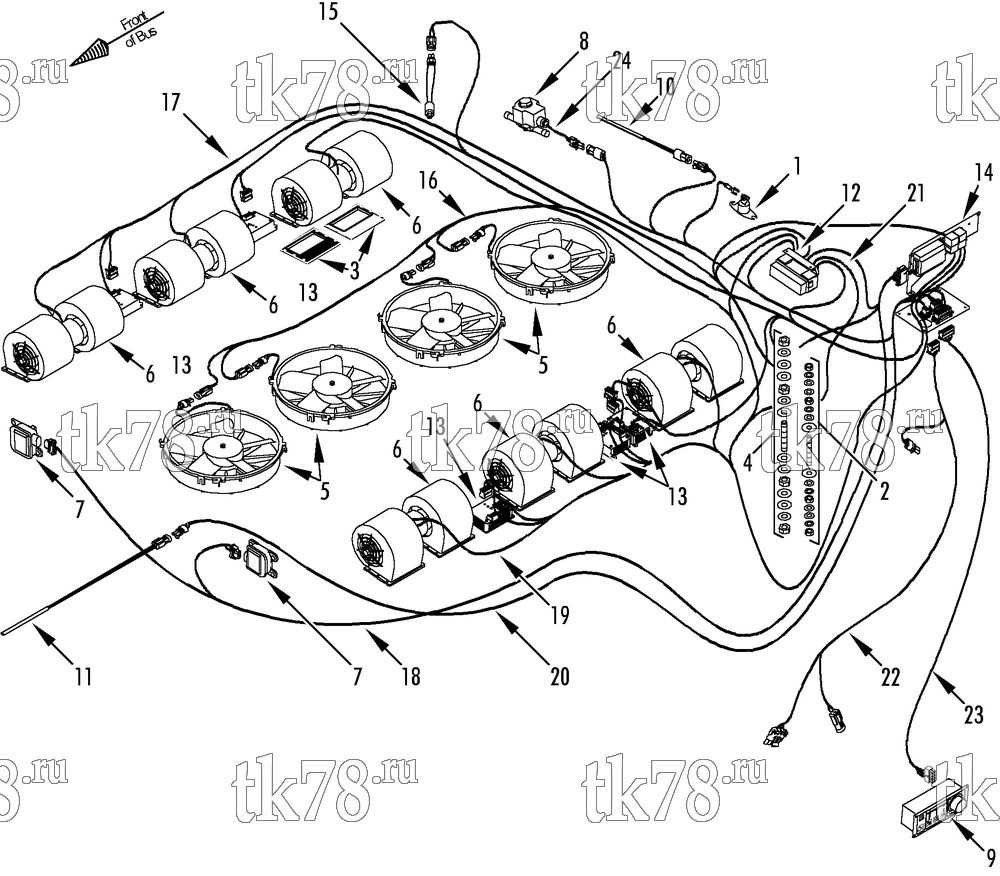

Установкa Thermo King схема ELECTRICAL COMPONENTS – 168D0
Обновление от: 8/22/10
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 44-3292 | THERMOSTAT - defrost termination | 1 | |
| 2 | 55-9367 | STUD - positive | 1 | |
| 55-8631 | WASHER (nylon w/ shoulder) | 1 | ||
| 55-8693 | WASHER (nylon) | 1 | ||
| 55-8955 | FLATWASHER | 6 | ||
| 55-3238 | LOCKWASHER | 4 | ||
| 305-1653 | NUT | 4 | ||
| 3 | 33-3057 | INSULATION - blower | 12 | |
| 4 | 55-9191 | STUD - negative | 1 | |
| 55-3672 | LOCKWASHER | 6 | ||
| 55-448 | FLATWASHER | 4 | ||
| 55-9189 | NUT | 4 | ||
| 5 | 78-1344 | FAN - condenser (see 166H4) | 4 | |
| 6 | 78-1296 | BLOWER | 6 | |
| 55-7368 | FLATWASHER | 24 | ||
| 55-7369 | LOCKWASHER | 24 | ||
| 55-7696 | SCREW - fan/guard | 24 | ||
| 7 | 41-3255 | SERVOMOTOR | 2 | |
| 55-7697 | FLATWASHER | 6 | ||
| 55-7369 | LOCKWASHER | 6 | ||
| 55-7696 | SCREW - servomotor | 6 | ||
| 8 | 66-9353 | VALVE - solenoid (see 168D9) | 1 | |
| 9 | 41-7211 | ClimaAIRE I - assembly | 1 | |
| 10 | 41-4157 | SENSOR - temperature | 1 | |
| 11 | 41-4335 | SENSOR - return air | 1 | |
| 12 | NSS | BOX - fuse (under unit, see 168E2) | 1 | |
| 13 | 41-4526 | CONTROLLER - speed | 5 | |
| 14 | NSS | PANEL - electrical (see 168E1) | 1 | |
| 15 | 41-3831 | SWITCH - hpco | 1 | |
| 16 | 41-4675 | HARNESS - condenser (for connector, see 115D14) | 1 | |
| 17 | 41-4676 | HARNESS - evaporator (curbside) | 1 | |
| 41-3855 | TERMINAL - connector (10-pin, female) | 1 | ||
| 18 | 41-4677 | HARNESS - air dampers | 1 | |
| 41-2768 | CONNECTOR (6-pin, female) | 2 | ||
| 41-2771 | CONNECTOR - terminal (15-pin, female) | 1 | ||
| 19 | 41-4678 | HARNESS - evaporator (roadside) | 1 | |
| 41-3855 | TERMINAL - connector (10-pin, female) | 2 | ||
| 20 | 41-4679 | HARNESS - control section | 1 | |
| 44-2788 | TERMINAL - fork | 1 | ||
| 41-4054 | CONNECTOR (10-pin, male) | 1 | ||
| 41-2772 | CONNECTOR (18-pin, male) | 1 | ||
| 41-2770 | CONNECTOR (4-pin, male) | 1 | ||
| 21 | 41-4680 | HARNESS - fuse bracket | 1 | |
| 22 | 41-4681 | HARNESS - compressor to ClimaAIRE (23m) | 1 | |
| 41-3855 | TERMINAL - connector (10-pin, female) | 1 | ||
| 23 | 41-4512 | HARNESS - control panel to driver panel (18 m) | 1 | |
| 41-3856 | TERMINAL - connector (18-pin, female) | 1 | ||
| 41-661 | CONNECTOR - inline (14 terminal) | 1 | ||
| 24 | 41-3844 | HARNESS - valve solenoid (for connector see 115D14) | 1 |
