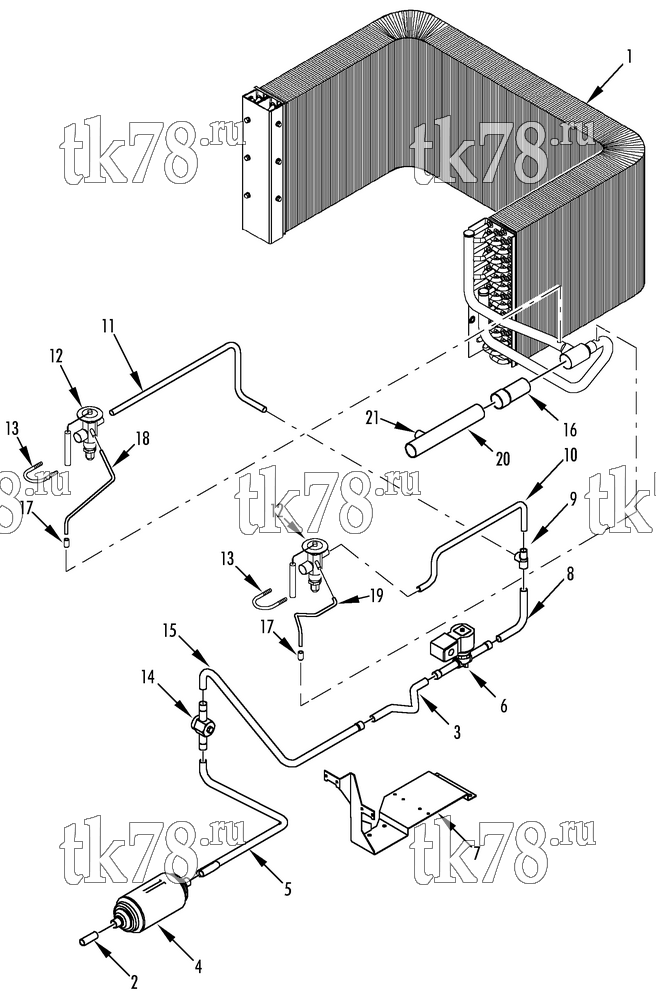

Установкa Thermo King схема EVAPORATOR SECTION – 167D7
Обновление от: 8/8/01
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 67-1767 | COIL - evaporator (see 167D8) | 1 | |
| 2 | 61-1016 | TUBE - liquid | 1 | |
| 3 | 61-1015 | TUBE - indicator to valve | 1 | |
| 4 | 306-1806 | DEHYDRATOR | 1 | |
| 5 | 61-1019 | TUBE - dehydrator to valve | 1 | |
| 6 | 61-877 | VALVE - solenoid | 1 | |
| 33-367 | GROMMET | 1 | ||
| 55-4523 | SCREW - valve | 2 | ||
| 55-2202 | LOCKWASHER | 2 | ||
| 55-2201 | FLATWASHER | 2 | ||
| 7 | 309-3214 | BRACKET - solenoid | 1 | |
| 55-7752 | SCREW - bracket | 3 | ||
| 55-6995 | FLATWASHER | 3 | ||
| 55-6996 | LOCKWASHER | 3 | ||
| 8 | 61-540 | TUBE - valve to tee | 1 | |
| 9 | 55-5678 | TEE | 1 | |
| 10 | 61-538 | TUBE - tee to expansion valve | 1 | |
| 11 | 61-1222 | TUBE - valve to expansion valve | 1 | |
| 12 | 61-535 | VALVE - expansion (10 ton) | 2 | |
| 13 | 55-5211 | U-BOLT | 2 | |
| 55-7368 | FLATWASHER | 4 | ||
| 55-4560 | NUT | 4 | ||
| 14 | 66-2648 | INDICATOR - liquid | 1 | |
| 15 | 61-1017 | TUBE - indicator | 1 | |
| 16 | 61-1014 | TUBE - suction to compressor (#1) | 1 | |
| 17 | 66-5752 | FITTING - saddle | 2 | |
| 18 | 61-1012 | TUBE - equalizer (#1) | 1 | |
| 19 | 61-1013 | TUBE - equalizer (#2) | 1 | |
| 20 | 61-1018 | TUBE - suction to compressor (#2) | 1 | |
| 21 | 66-3615 | FITTING - saddle | 1 |
