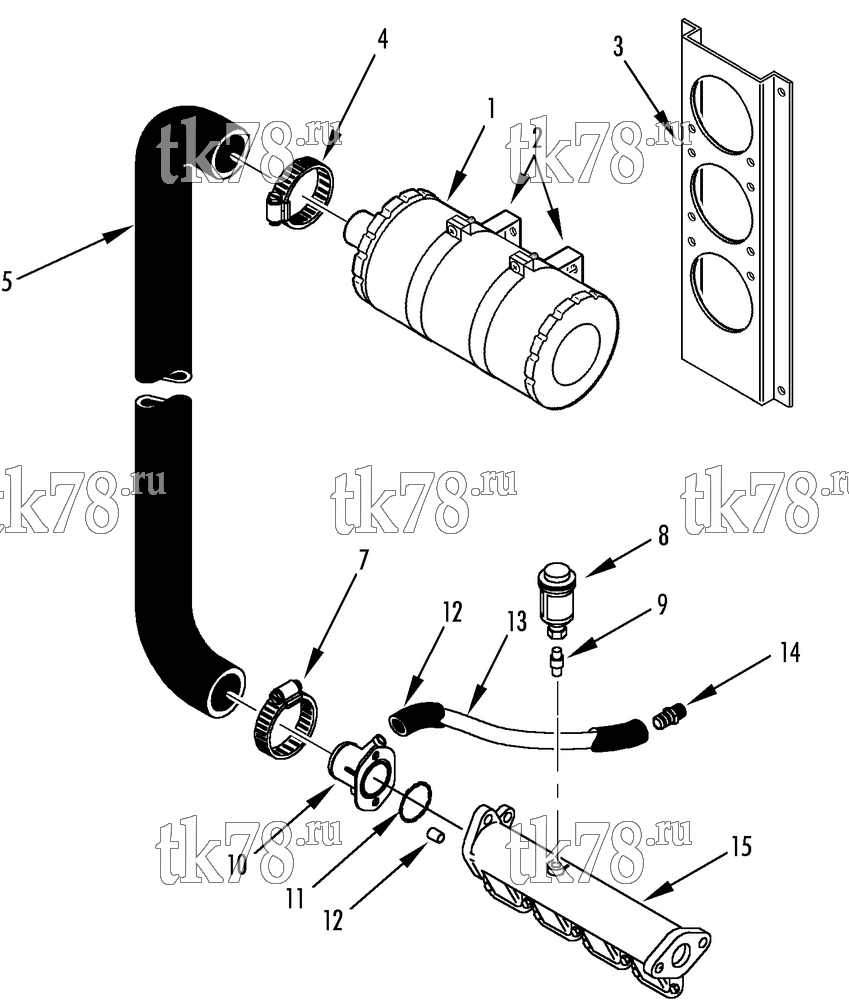

Установкa Thermo King схема AIR CLEANER GROUP – 166F7
Обновление от: 2/8/02
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 11-7400 | FILTER - air cleaner (standard, EMI, see 172H7) | 1 | |
|
11-7400 OEM | Фильтр воздушный, SB/SMX | 3 460 ₽ |
|
|
US-11-7400 | Фильтр воздушный, SB/SMX | 2 460 ₽ |
|
|
10-11-7400 | Фильтр воздушный, SB/SMX | 1 590 ₽ |
|
| 2 | 11-5562 | CLAMP - air cleaner | 2 | |
| 55-141 | SCREW - clamp | 4 | ||
| 55-371 | FLATWASHER | 8 | ||
| 55-4967 | NUT | 4 | ||
| 3 | 91-3897 | PLATE - air filter | 1 | |
| 55-371 | FLATWASHER | 4 | ||
| 55-4967 | NUT - plate | 4 | ||
| 4 | 55-1636 | CLAMP - hose (1.125-3.00) | 1 | |
| 5 | 11-7762 | HOSE - air cleaner to manifold | 1 | |
| 7 | 55-4979 | CLAMP - hose (1.26 to 2.50) | 1 | |
| 8 | 11-7757 | INDICATOR - air restrictor | 1 | |
|
10-11-7757 | Индикатор засорения | 6 410 ₽ |
|
| 9 | 11-7828 | FITTING - indicator | 1 | |
| 10 | 11-8858 | ADAPTER - air intake | 1 | |
| 11 | 33-2854 | O-RING - flange | 1 | |
| 12 | 91-7555 | SPACER - flange | 2 | |
| 55-5022 | SCREW - flange | 2 | ||
| 55-790 | LOCKWASHER | 2 | ||
| 55-4613 | FLATWASHER | 2 | ||
| 12 | 11-8901 | HOSE - insulation | 1 | |
| 13 | 11-8900 | HOSE - breather | 1 | |
| 14 | 55-1592 | ELBOW - breather | 1 | |
| 15 | 11-7397 | MANIFOLD - intake (see 100C4) | 1 |
