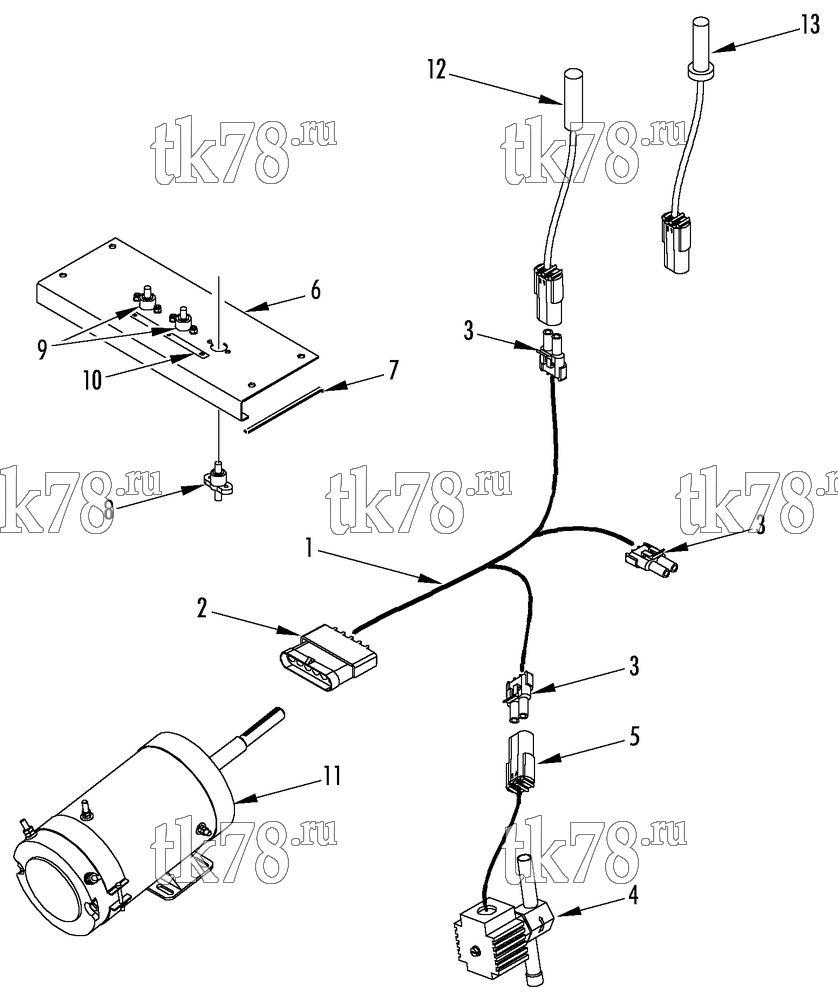

Установкa Thermo King схема ELECTRICAL COMPONENTS - EVAPORATOR – 166F5
Обновление от: 6/23/13
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 2 | 44-8294 | CONNECTOR - shroud (6-pin) | 1 | |
| 1 | 41-4128 | HARNESS - evaporator | 1 | |
| 44-7812 | PLUG - cavity (green) | 1 | ||
| 3 | 44-5838 | CONNECTOR - tower (2-pin) | 3 | |
| 4 | 61-869 | VALVE - solenoid (liq/ref) | 1 | |
| 41-4145 | COIL - valve | 1 | ||
| 55-6153 | CONNECTOR - harness | 1 | ||
| 55-4523 | SCREW - valve | 2 | ||
| 55-2202 | LOCKWASHER | 2 | ||
| 55-2201 | FLATWASHER | 2 | ||
| 5 | 44-5835 | CONNECTOR - shroud (2 terminal) | 1 | |
| 6 | 92-1198 | PLATE - support | 1 | |
| 7 | 33-3363 | INSULATION - plate | 1 | |
| 8 | 55-9551 | STUD - junction block (black) | 1 | |
| 9 | 55-9550 | STUD - junction block (red) | 2 | |
| 55-9700 | SCREW - stud | 6 | ||
| 55-2001 | FLATWASHER | 6 | ||
| 55-4560 | NUT | 6 | ||
| 10 | 92-1199 | MARKSTRIP | 1 | |
| 11 | 104-688 | MOTOR - blower | 1 | |
| 44-4435 | BRUSH - Motor | 4 | ||
| 12 | 40-975 | KIT - temperature sensor (coil) | 1 | |
|
40-975 OEM | Датчик температуры к-т, некалиброванный | 10 310 ₽ |
|
|
10-40-975 | Датчик температуры к-т, некалиброванный | 4 660 ₽ |
|
| NSS | SENSOR - ungraded (18 in) | 1 | ||
| 41-5210 | COLLAR - crimp | 2 | ||
| 92-846 | HEATSHRINK (1/2 in) | 2 | ||
| 13 | 41-7706 | SENSOR - temperature (return air) | 1 |
